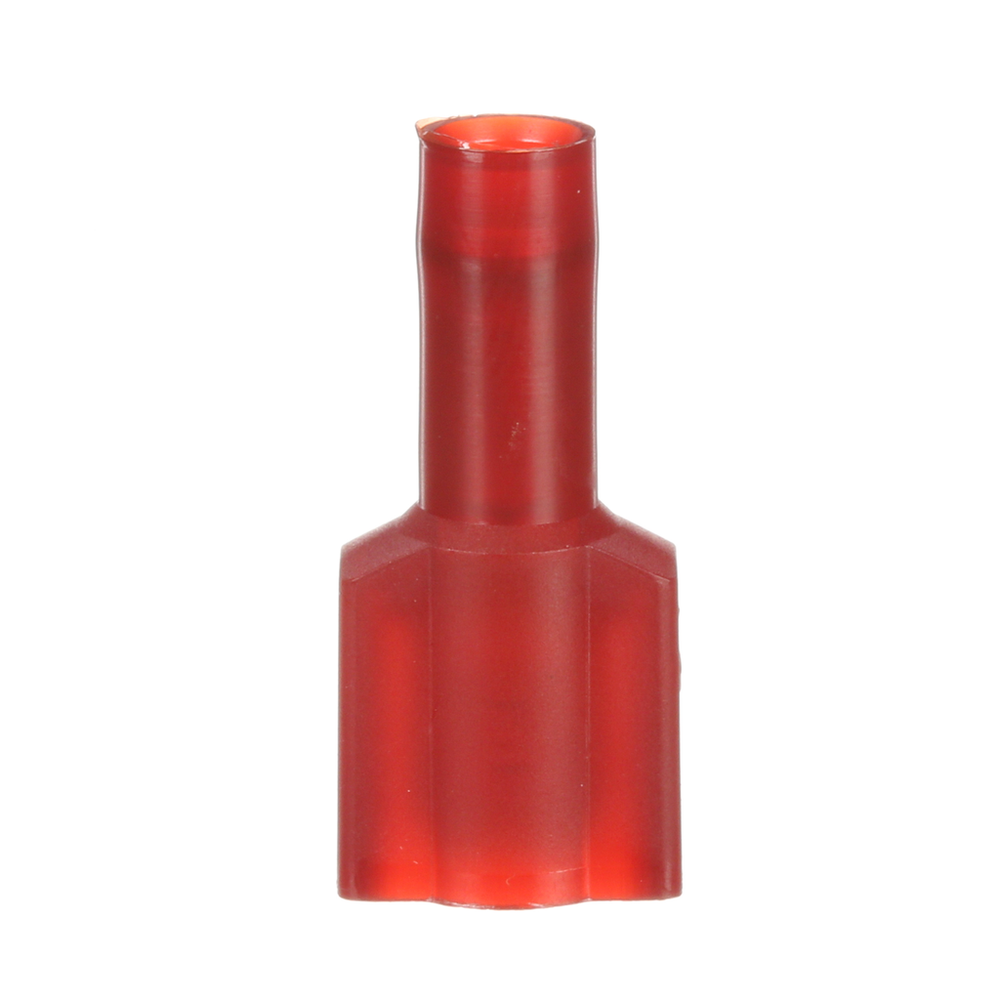

3M™ Scotchlok™ Male Disconnect Nylon Insulated, 50/bottle, MNG18-250DMIX, 500/Case - 7000133363

Sold As: 50-Pack
SKU: 7000133363
MPN: 7000133363
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588031
3M ID: 80611464498
5 Digit UPC: 58803
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • This male disconnect terminal offers excellent holding force
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
UL File NumberE70512
Insulation MaterialNylon with Insulation Grip
Minimum Conductor Size (Metric).34 mm²
Diameter (D)0.30 Inch
MaterialPlastic
Maximum Insulation Outer Diameter (Metric)3.7
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)0.44
Barrel Inside Diameter0.145 Inch
Overall Length (Metric) UOMmm
Connection Width (Metric)6.35
Maximum Operating Temperature (Fahrenheit) UOMDegree
Bullet Diameter0.180
Disconnect TypeMale
Overall Diameter (Imperial)0.3
Packaging50 per bottle
Pad Width0.25
Connection Width (Imperial)0.25
Overall Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Conductor Sizes (Imperial)22 - 18 AWG
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Imperial) UOMin
Terminal StyleFully Insulated
Maximum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Length (Imperial) UOMin
Overall Width (Metric)11.17
Product ColorRed
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Barrel StyleButted
Maximum Recommended Voltage Rating600.0
Connection Width (Metric) UOMmm
Fastener OrientationMale
Male Tab Width (W')0.250 Inch
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Voltage ApplicationLow Voltage
Terminal TypeDisconnect
Maximum Conductor Size (Metric)1 mm²
Overall Length (Metric)24.13
Units per Case500.0
Insulation ColorRed
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial)0.95
