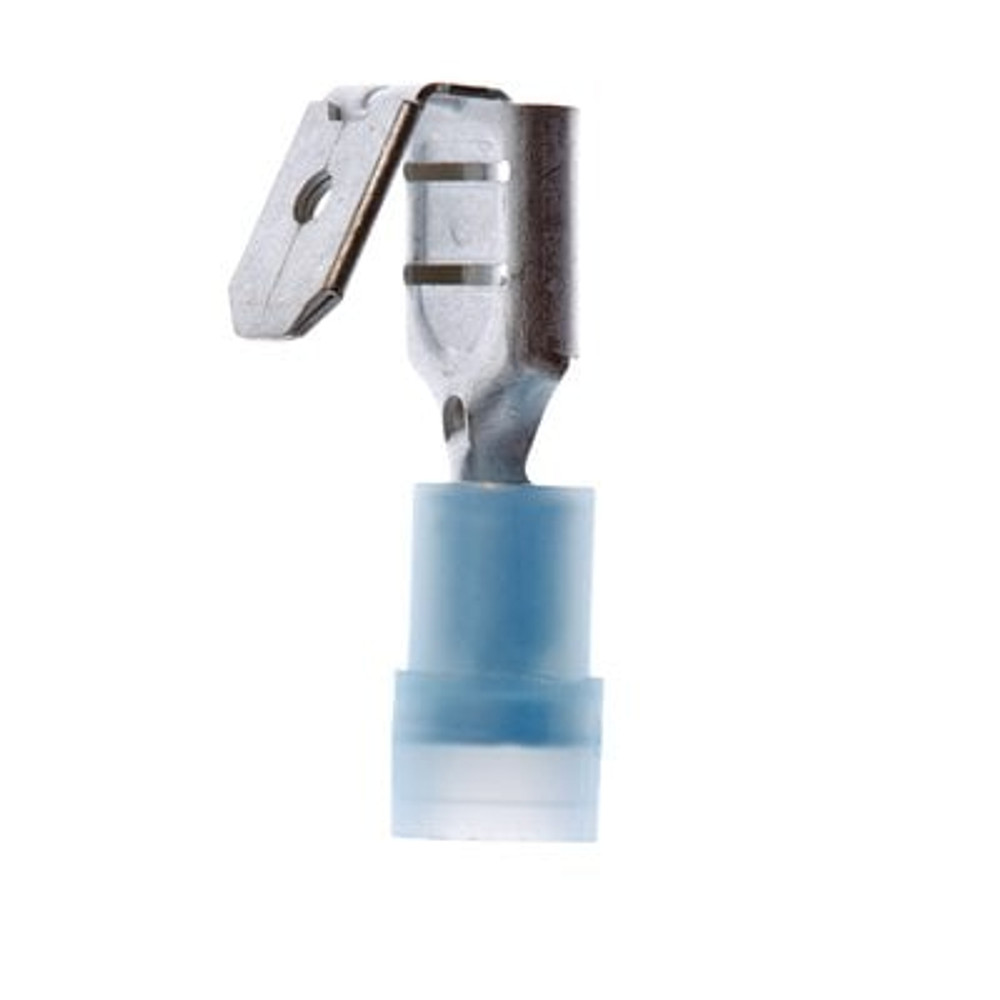

3M™ Scotchlok™ Male Disconnect Nylon Insulated, 50/bottle, MNG14-250DMIX, 500/Case - 7000133347

Sold As: 50-Pack
SKU: 7000133347
MPN: 7000133347
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128587744
3M ID: 80611464209
5 Digit UPC: 58774
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Metric)3.7
Disconnect TypeMale
Units per Case500.0
MaterialPlastic
UL File NumberE70512
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.5 mm²
Fastener OrientationMale
Overall Length (Metric)24.13
Overall Diameter (Imperial) UOMin
Packaging50 per bottle
Overall Width (Metric)11.17
Insulation ColorBlue
Minimum Conductor Size (Imperial)16 AWG
Diameter (D)0.30 Inch
Connection Width (Imperial)0.25
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorBlue
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tab Width0.250
Overall Length (Imperial)0.95
Barrel Inside Diameter0.170 Inch
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Imperial) UOMin
Conductor Sizes (Imperial)16 - 14 AWG
Pad Width0.25
Maximum Recommended Voltage Rating UOMV
Terminal StyleFully Insulated
Maximum Conductor Size (Imperial)14 AWG
Male Tab Width (W')0.250 Inch
Overall Width (Imperial)0.44
Voltage ApplicationLow Voltage
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Recommended Voltage Rating600.0
Connection Width (Metric) UOMmm
Insulation MaterialNylon with Insulation Grip
Maximum Operating Temperature (Celsius)105.0
Overall Width (Metric) UOMmm
Overall Diameter (Imperial)0.3
Connection Width (Metric)6.35
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Metric) UOMmm
Barrel StyleButted
Terminal TypeDisconnect
