3M Products & Supplies

3M™ Scotchlok™ Pin Non Insulated, 50/bottle, MU10-55PX-A, 500/Case - 7010304197

Sold As: 500-Pack
SKU: 7010304197
MPN: 7010304197
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128587543
3M ID: 80611464001
5 Digit UPC: 58754
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

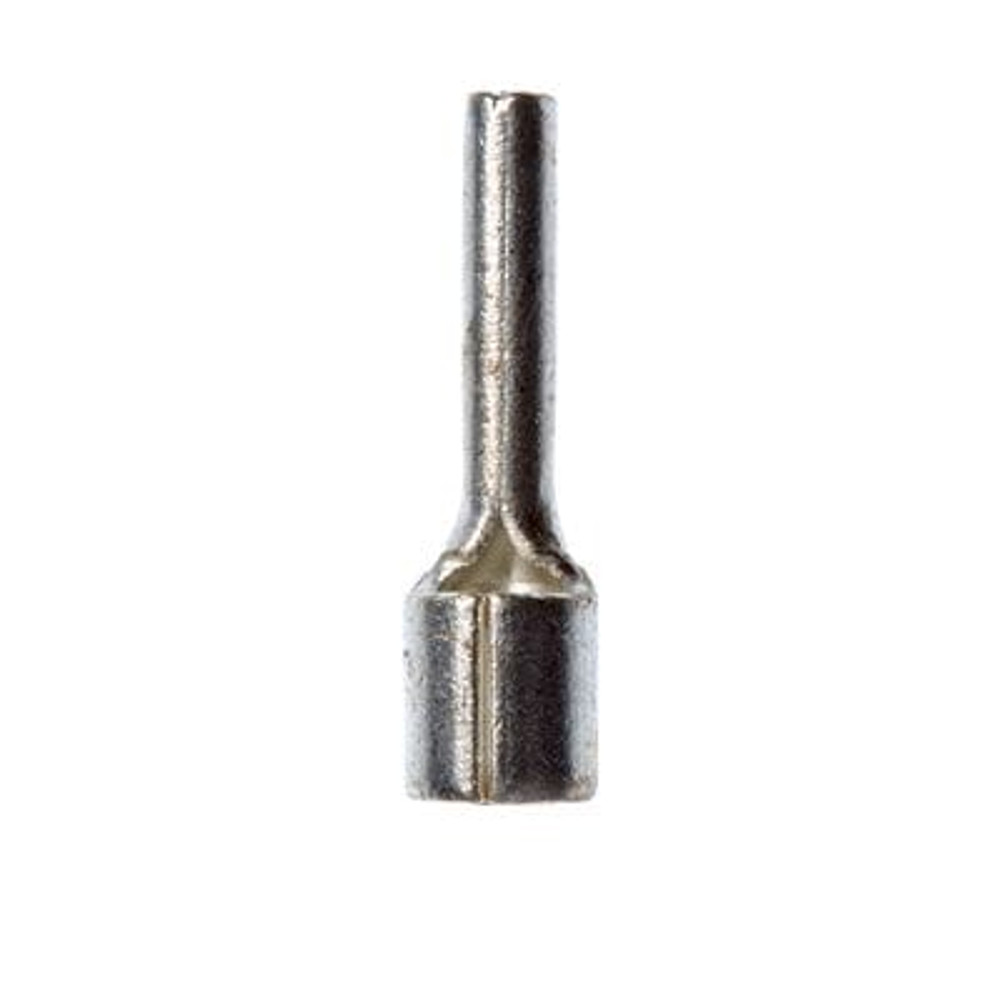

3M™ Scotchlok™ Non-Insulated Butted Seam Pin Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Connection Width (Imperial) UOMin
Units per Case500.0
Connection Width (Imperial)0.11
Packaging50 per bottle
Terminal TypePin
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Pin Length (PL)0.55 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.81
Maximum Conductor Size (Metric)6 mm²
Connection Width (Metric)2.794
Minimum Conductor Size (Metric)4 mm²
Barrel StyleButted
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Imperial)10 AWG
Barrel Inside Diameter0.135 Inch
Solution forWireless Network: Infrastructure Accessories
Barrel Length (Imperial)0.25 Inch
Insulation MaterialNon-insulated
