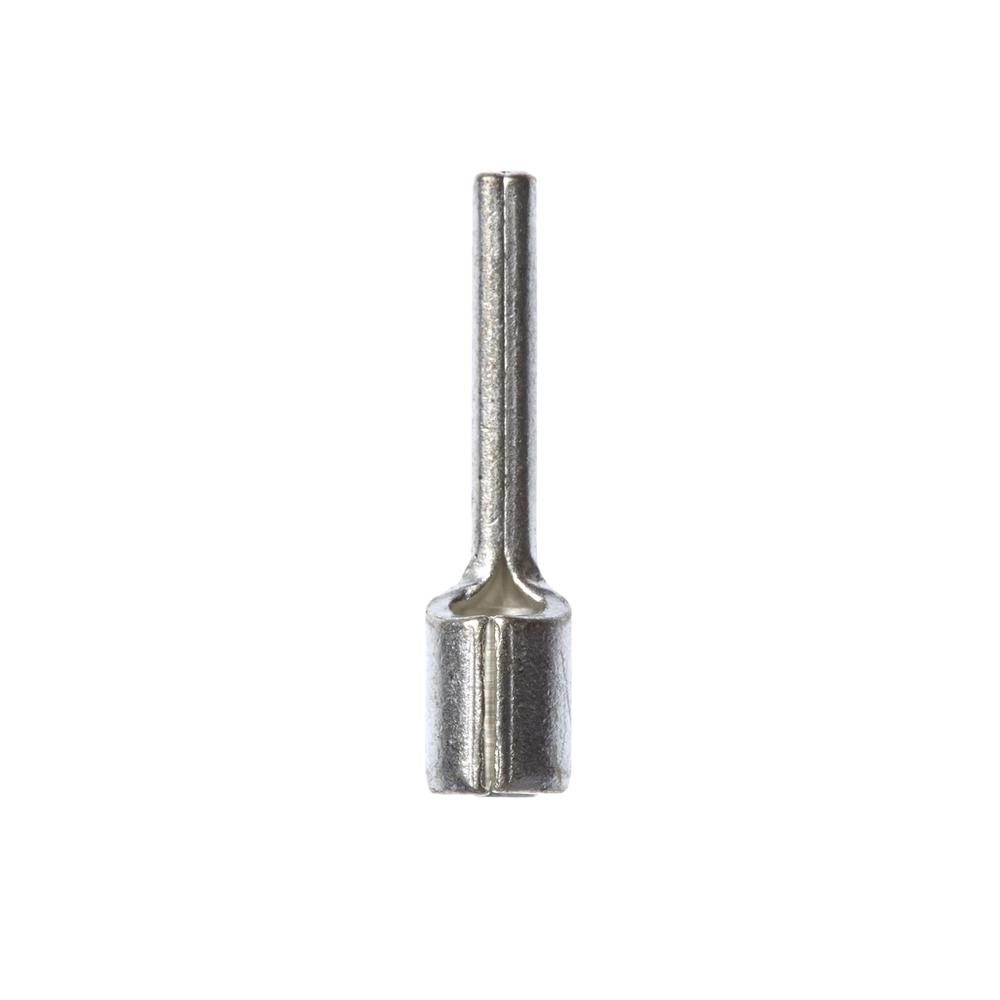

3M™ Scotchlok™ Pin Non-Insulated, 100/bottle, MU14-47PX-A, 500/Case - 7010398203

Sold As: 500-Pack
SKU: 7010398203
MPN: 7010398203
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128588765
3M ID: 80611465222
5 Digit UPC: 58876
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Pin Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Beveled mouth offers easy insertion of wires
  • Provides quick connection for set screws or clamps that are used to make electrical contact
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Units per Case500.0
Barrel StyleButted
Solution forWireless Network: Infrastructure Accessories
Terminal TypePin
Maximum Conductor Size (Imperial)14 AWG
Insulation MaterialNon-insulated
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Imperial)0.08
Barrel Inside Diameter0.09 Inch
Overall Length (Imperial)0.73
Pin Length (PL)0.47 Inch
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)2.5 mm²
Packaging100 per bottle
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Connection Width (Metric)2.032
