3M Products & Supplies

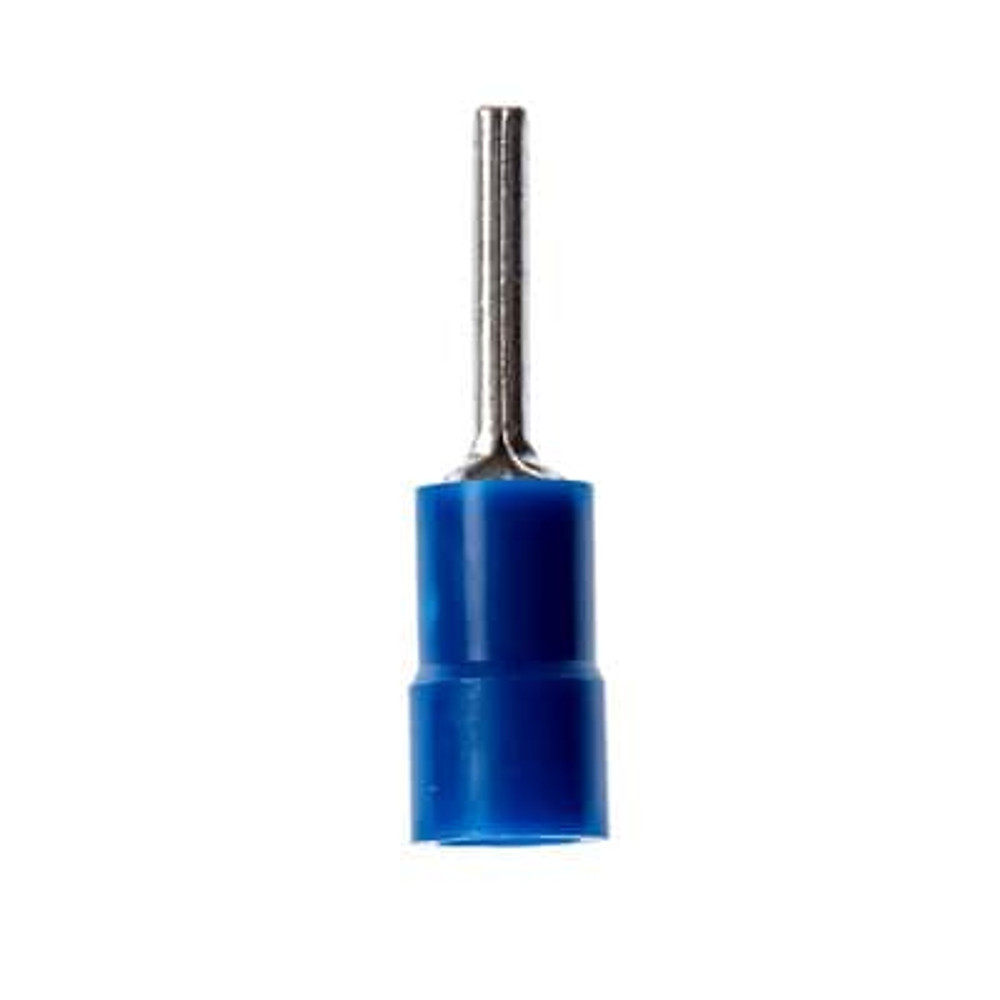

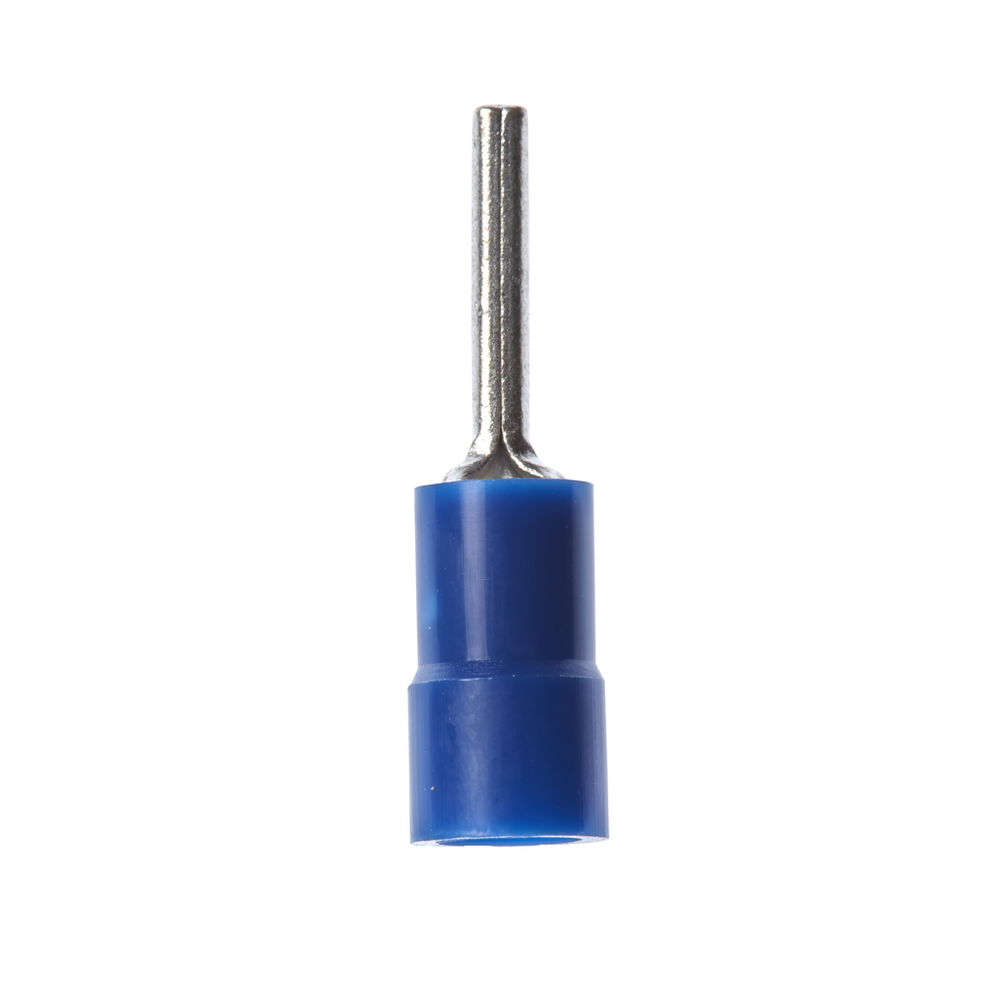

3M™ Scotchlok™ Pin Vinyl Insulated, 100/bottle, MVU14-47PX-A, 500/Case - 7100055062

Sold As: 100-Pack
SKU: 7100055062
MPN: 7100055062
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588659
3M ID: 80611465115
5 Digit UPC: 58865
$92.15 ($0.92 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Pin Terminal - Vinyl Insulated Butted Seam, MVU10-55PX-A, 12-10 AWG

Features

  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 167 degrees F (75 degrees C)

Downloads

Specifications

Country of OriginTaiwan
Overall Length (Imperial) UOMin
Product ColorBlue
Solution forWireless Network: Infrastructure Accessories
Connection Width (Imperial)0.075
Insulation MaterialVinyl
Barrel Inside Diameter0.090 Inch
Terminal TypePin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial) UOMin
Conductor Sizes (Imperial)16 - 14 AWG
Overall Length (Metric) UOMmm
Packaging100 per bottle
Minimum Conductor Size (Imperial)16 AWG
Dimension EPin Length 0.47 inch (11.94 mm)
Diameter (D)Pin Diameter 0.075 inch (1.91 mm)
Units per Case500.0
Maximum Conductor Size (Imperial)14 AWG
Pin Length (PL)0.47 Inch
Maximum Insulation Outer Diameter (Imperial)0.17
Maximum Conductor Size (Metric)2.5 mm²
Overall Length (Metric)22.86
Barrel StyleButted
Overall Length (Imperial)0.9
Connection Width (Metric)1.905
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Metric) UOMmm
