3M Products & Supplies

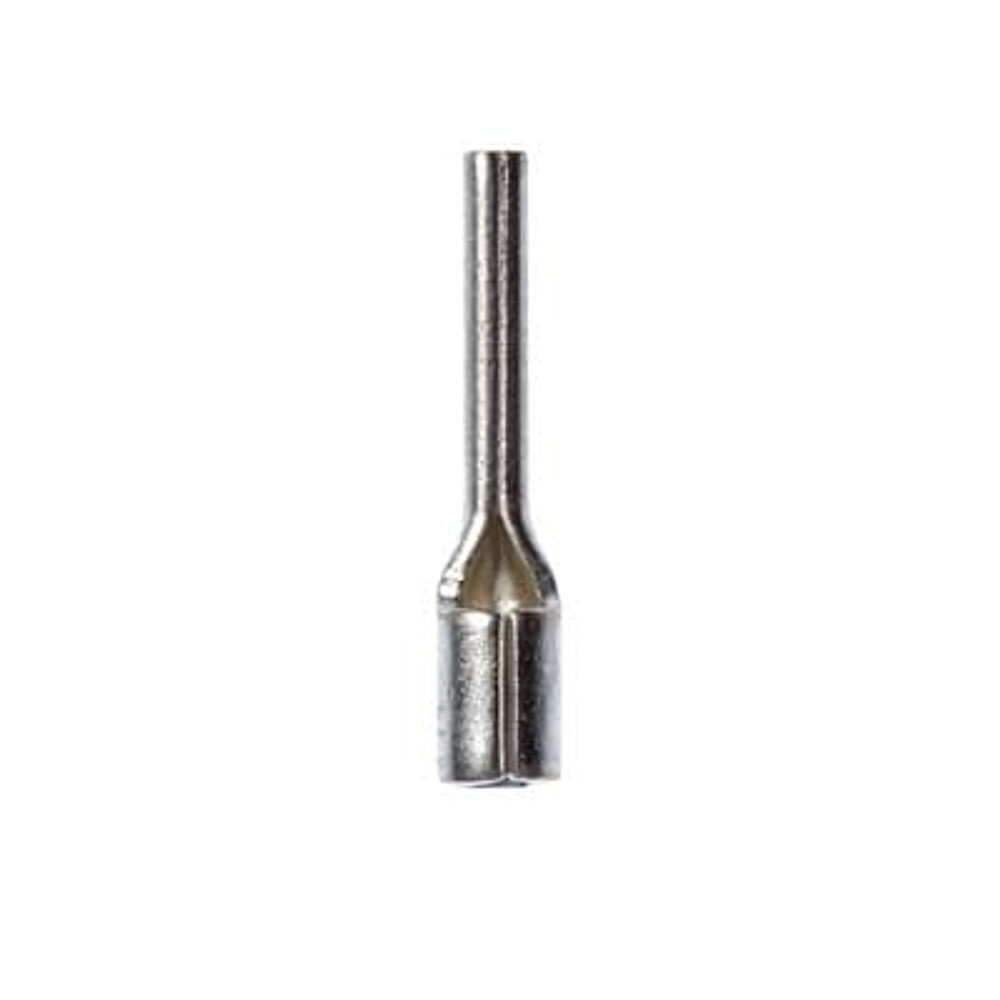

3M™ Scotchlok™ Pin Non-Insulated, 100/bottle, MU18-47PX-A, 500/Case - 7010351293

Sold As: 500-Pack
SKU: 7010351293
MPN: 7010351293
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588779
3M ID: 80611465230
5 Digit UPC: 58877
$290.67 ($0.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Pin Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Made of copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Barrel Inside Diameter0.07 Inch
Overall Length (Imperial)0.73
Minimum Conductor Size (Imperial)22 AWG
Units per Case500.0
Connection Width (Metric)2.032
Pin Length (PL)0.47 Inch
Solution forWireless Network: Infrastructure Accessories
Connection Width (Imperial)0.08
Packaging100 per bottle
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Insulation MaterialNon-insulated
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric).34 mm²
Connection Width (Metric) UOMmm
Maximum Conductor Size (Imperial)18 AWG
Terminal TypePin
Maximum Conductor Size (Metric)1 mm²
Barrel StyleButted
