3M™ Scotchlok™ Disconnect Flag, 100/bottle, MU14-250DF/FLAGX, allows for quick and easy disconnect of wires, 500/Case - 7010304210

Sold As: 100-Pack
SKU: 7010304210
MPN: 7010304210
For an accurate lead time please contact us
UPC: 00051128590904
3M ID: 80611467491
5 Digit UPC: 59090
$67.42 ($0.67 / Count)
Hurry up! Current stock:

Product Description

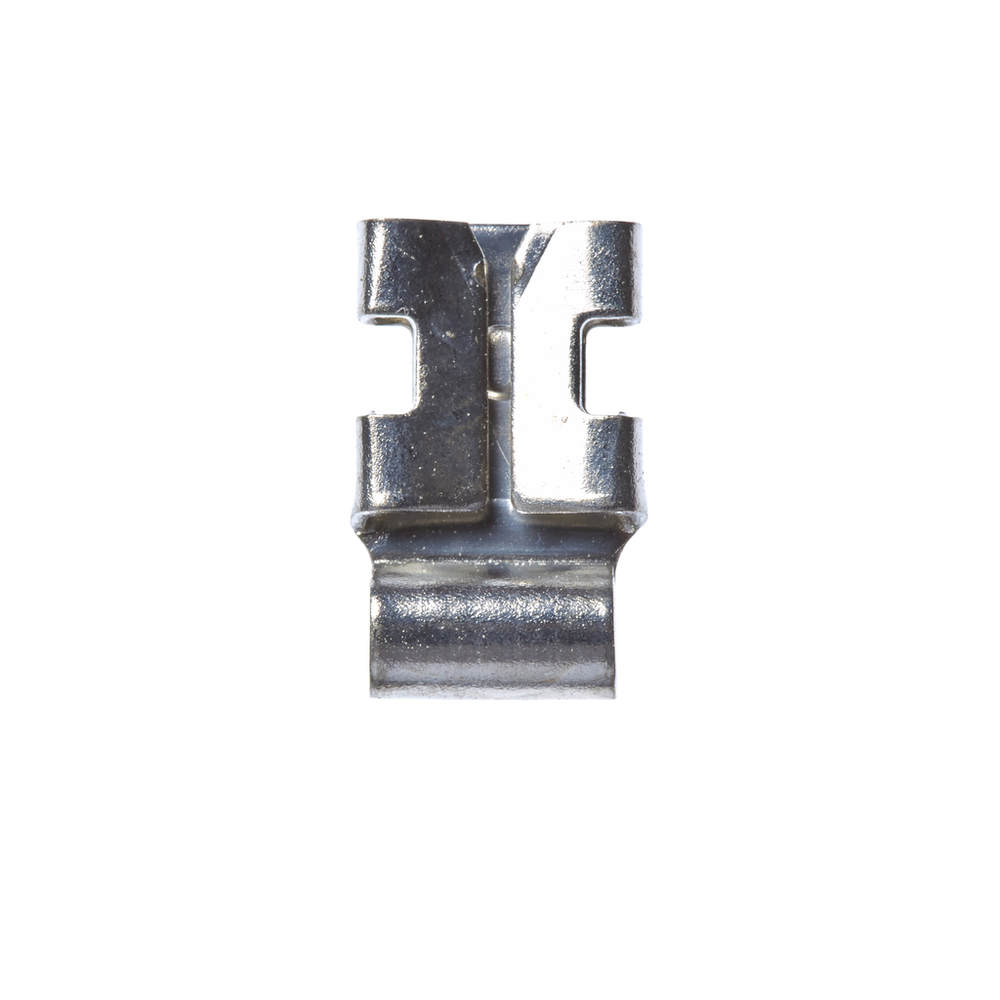

3M™ Scotchlok™ Female Flag Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Dents and rolled edges of this female disconnect flag terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Metric)6.35
Insulation MaterialNon-insulated
Overall Length (Imperial)0.51
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial) UOMin
Barrel Length (Imperial)>=0 Inch
Mates with Male Tab Width (W')>0 Inch
UL File NumberE70512
Minimum Conductor Size (Metric)1.5 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mates with Female Width>0 Inch
Fastener OrientationFemale
Packaging100 per bottle
Units per Case500.0
Disconnect TypeFemale
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial)0.25
Barrel StyleButted
Barrel Inside Diameter>0 Inch
Connection Width (Metric) UOMmm
Connection Width (Imperial) UOMin
Tab Width0.250
Terminal StyleFlag
Solution forWireless Network: Infrastructure Accessories
Terminal TypeDisconnect
