3M Products & Supplies

3M™ Scotchlok™ Flag Disconnect, 100/bottle, MU18-187DF/FLAGX, allows for quick and easy disconnect of wires, 500/Case - 7010349794

Sold As: 500-Pack
SKU: 7010349794
MPN: 7010349794
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128590925
3M ID: 80611467517
5 Digit UPC: 59092
$438.25 ($0.88 / Count)
Hurry up! Current stock:

Product Description

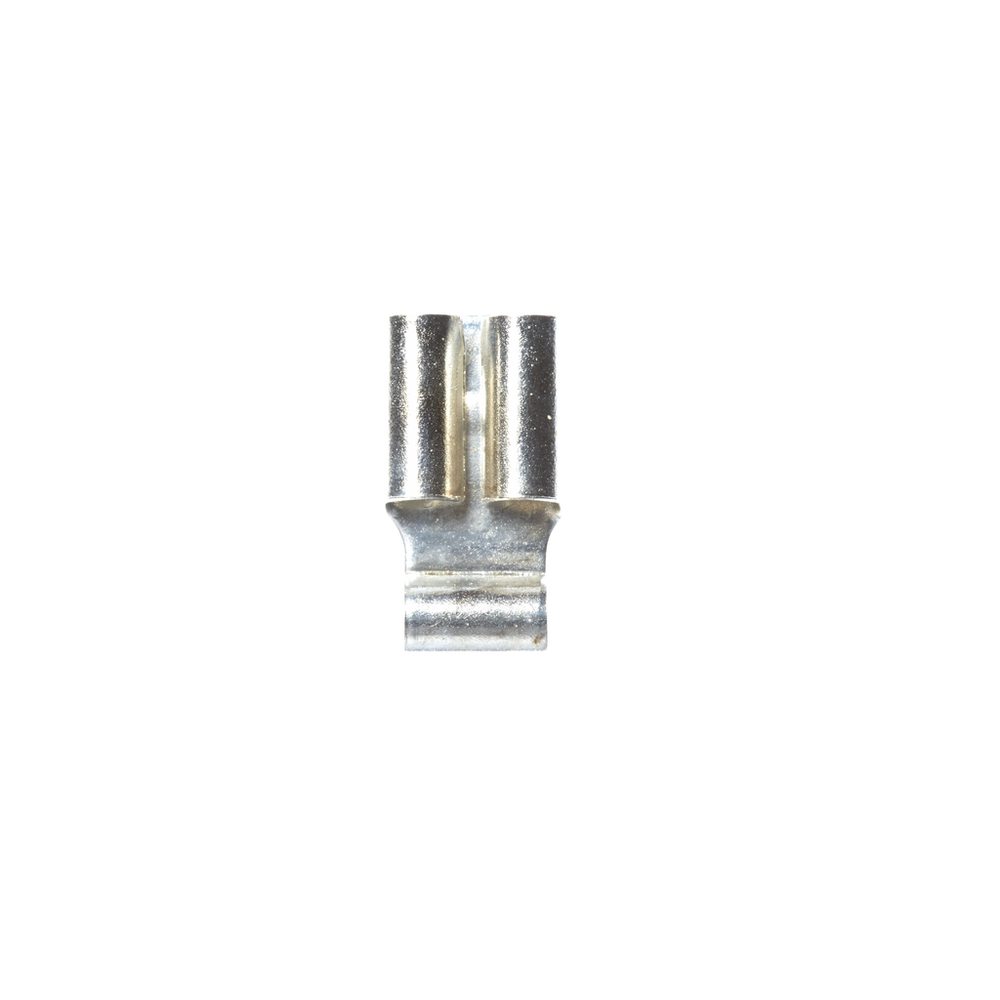

3M™ Scotchlok™ Female Flag Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Allows for quick and easy disconnect of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Dents and rolled edges of this female disconnect flag terminal offer excellent holding force
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.46
Mates with Female Width0.187 Inch
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric)1 mm²
Tab Width0.250
Minimum Conductor Size (Metric).34 mm²
Terminal StyleFlag
Pad Width0.187
Solution forWireless Network: Infrastructure Accessories
Disconnect TypeFemale
Connection Width (Metric)4.75
Connection Width (Metric) UOMmm
Insulation MaterialNon-insulated
Units per Case500.0
Terminal TypeDisconnect
Barrel StyleButted
Barrel Length (Imperial)0.20 Inch
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial)0.187
Fastener OrientationFemale
Mates with Male Tab Width (W')0.187 Inch
Connection Width (Imperial) UOMin
Packaging100 per bottle
Barrel Inside Diameter0.075 Inch
