3M™ Scotchlok™ Electrical IDC 804-BULK, Blue, 18-16 AWG (solid/stranded), 14 AWG (stranded), 500 per carton, 5000/case - 7100003537

Sold As: 5000-Pack
SKU: 7100003537
MPN: 7100003537
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007061359
3M ID: 80610596613
5 Digit UPC: 6135
$1,906.30 ($0.38 / Count)
Hurry up! Current stock:

Product Description

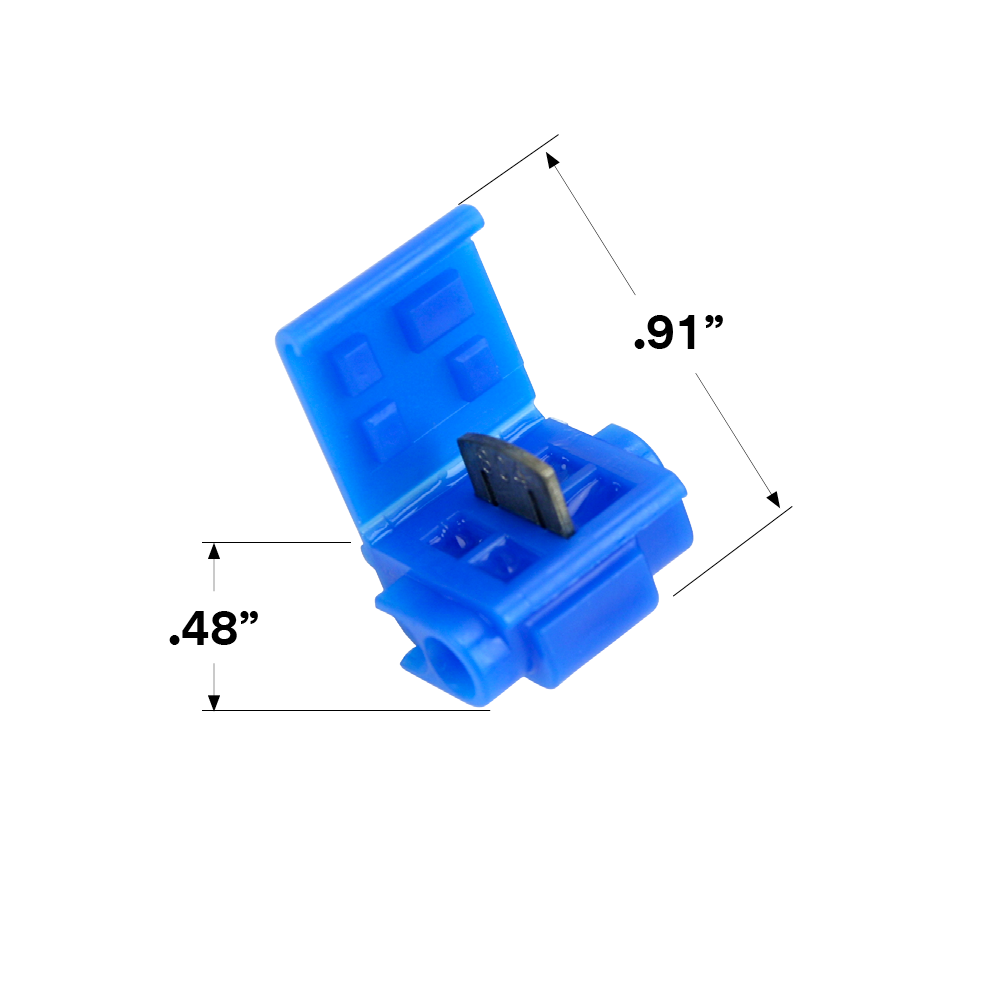

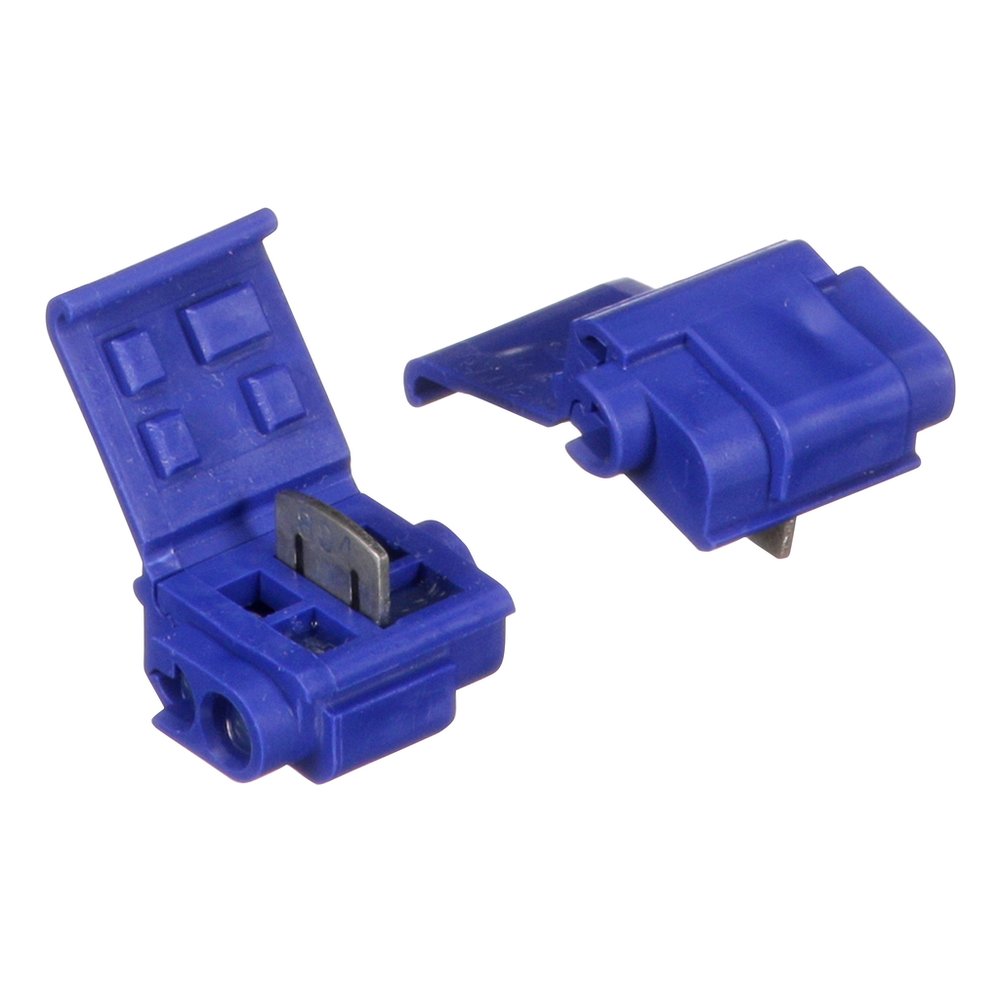

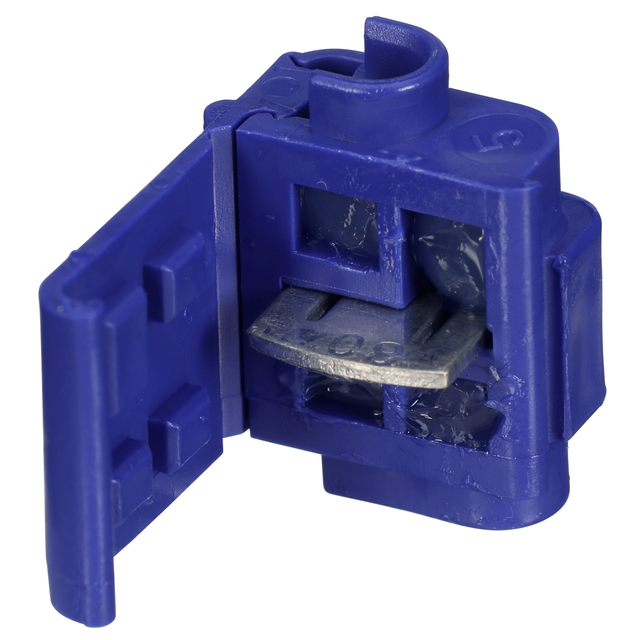

3M™ Scotchlok™ Insulation Displacement Connector 804 electrically connects a tap wire to a run (through) wire while insulating the connection. The connector is polypropylene insulated, self stripping and offers a moisture resistant seal.

Features

  • RoHS 2011/65/EU Compliant
  • Accommodates 18 to 14 AWG solid/stranded
  • Blue, polypropylene-insulated connector electrically taps into a wire in mid-span without cutting
  • Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Grease Filling Against CorrosionNo
Tap Maximum Insulation Outer Diameter (Imperial)0.145
Insulation ColorBlack
Conductor Sizes (Imperial)14 AWG (Stranded)
Run Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Celsius) UOMDegree
Tap Maximum Insulation Outer Diameter (Metric)3.7
Units per Case500.0
Wire Connector TypeIDC Connectors
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)75.0
Recommended Crimping ToolE-9BM or 9 in. Linemans Pliers
PackagingBulk
Maximum Operating Temperature (Fahrenheit)167.0
Voltage ApplicationLow Voltage
Run Maximum Insulation Outer Diameter (Imperial)0.145
Flame RetardantNo
Max. Number of Cores1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
