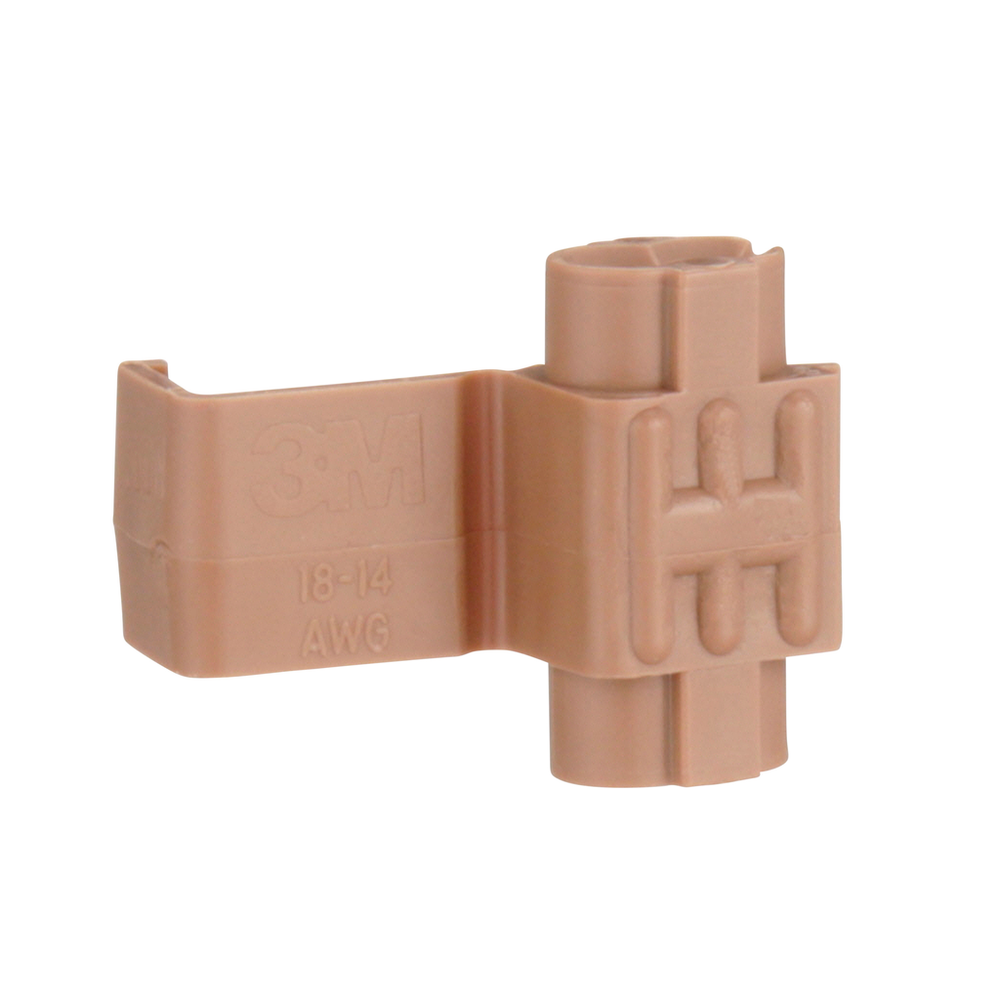

3M™ Scotchlok™ Electrical IDC 560N-BULK, Brown, 18–16 AWG (solid/stranded), 14 AWG (stranded), 500 per carton, 5000/case - 7000132405

Sold As: 5000-Pack
SKU: 7000132405
MPN: 7000132405
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007095139
3M ID: 80610255335
5 Digit UPC: 9513
$1,236.17 ($0.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Insulation Displacement Connector 560N is a double run connector for parallel splicing. It electrically connects two run (through) wires while insulating the connection. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Accommodates 12 AWG solid/stranded, 10 AWG stranded
  • Brown polypropylene-insulated connector for parallel splicing
  • Brass element construction for good conductivity and tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Units per Case1000.0
Run Maximum Insulation Outer Diameter (Imperial)0.145
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Conductor Sizes (Imperial)14 AWG (Stranded)
Wire Connector TypeIDC Connectors
Max. Number of Cores2.0
Moisture ResistantNo
PackagingBulk
Recommended Crimping ToolE-9BM or 9 in. Linemans Pliers
Tap Maximum Insulation Outer Diameter (Metric)3.7
Run Maximum Insulation Outer Diameter (Metric)3.7
Connection TypeDouble Run or Tap
Tap Maximum Insulation Outer Diameter (Imperial)0.145
Voltage ApplicationLow Voltage
