3M Products & Supplies

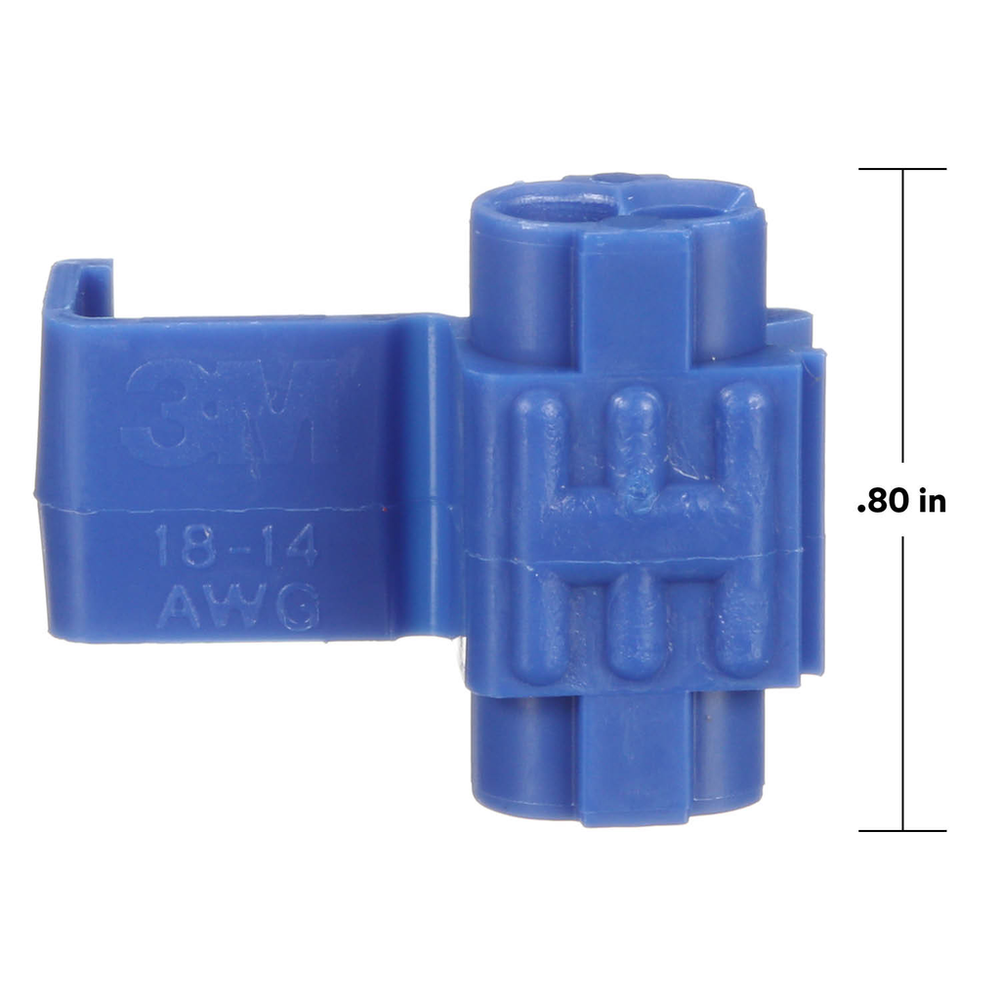

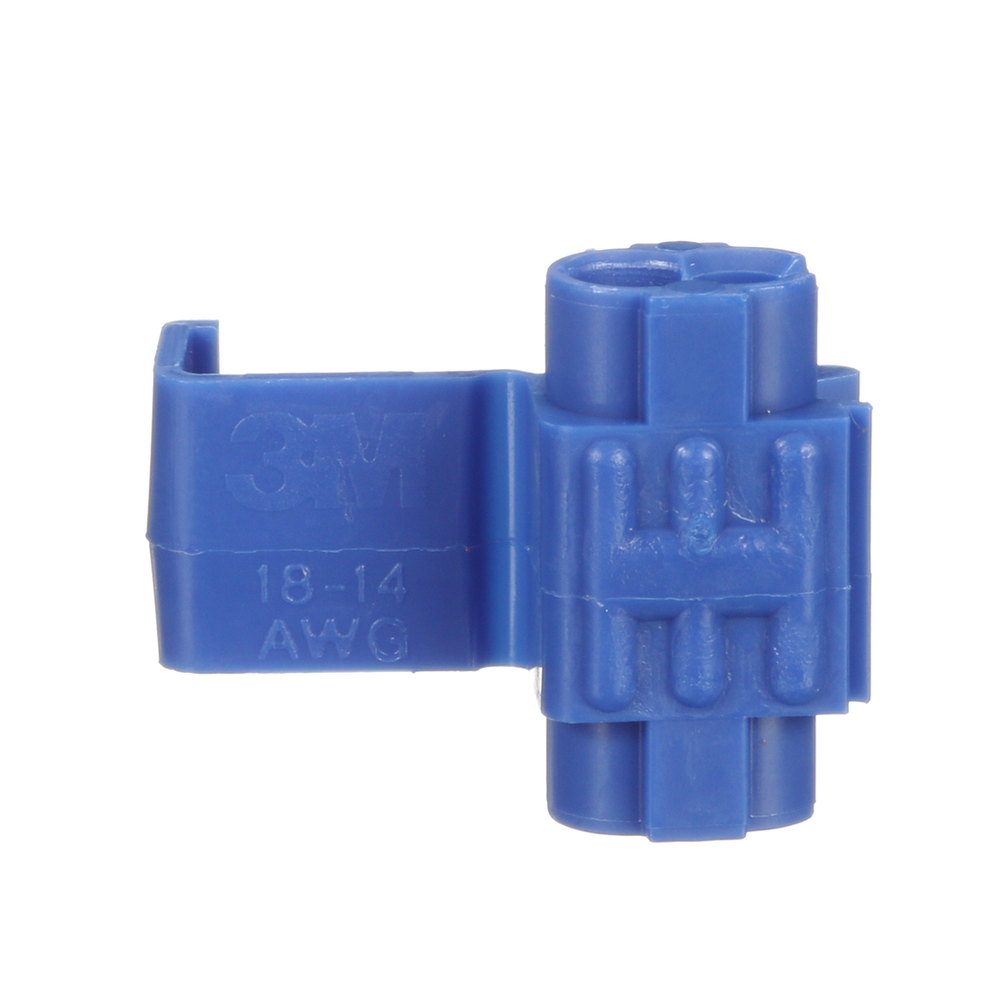

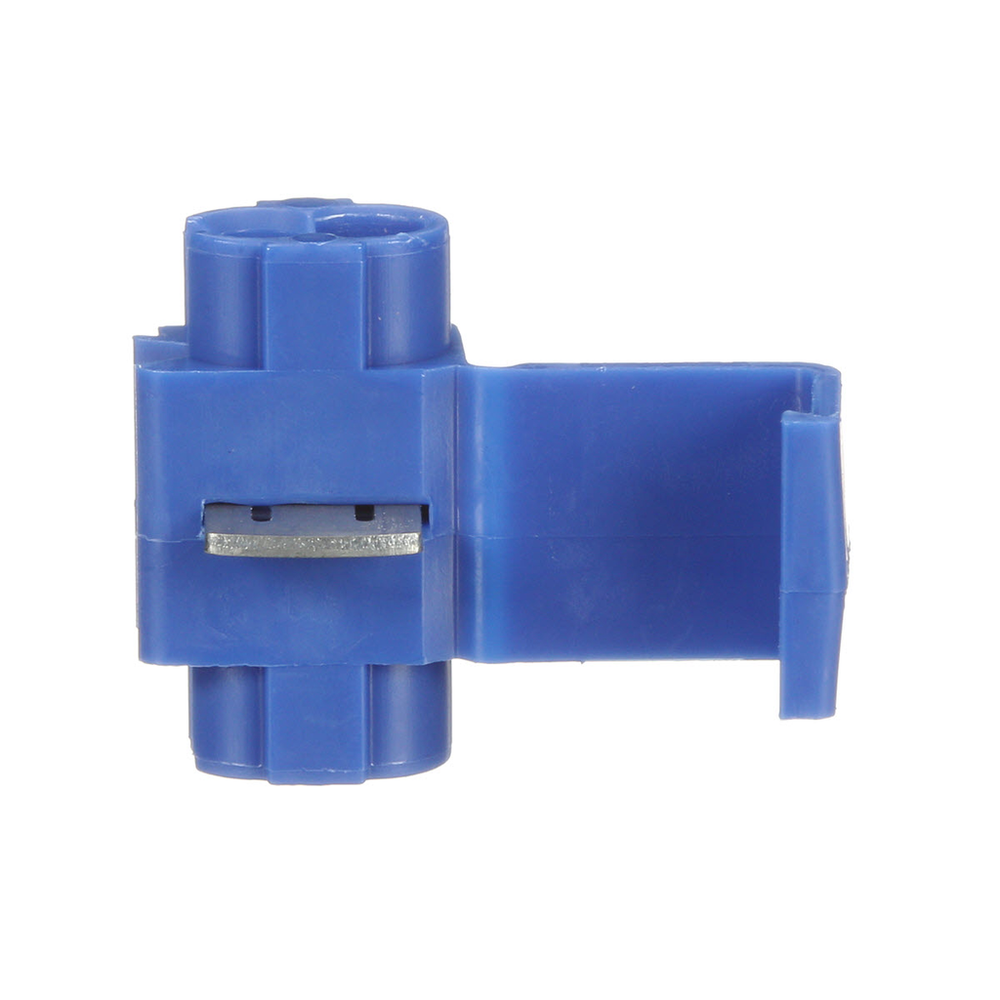

3M™ Scotchlok™ Electrical IDC 560B-POUCH, Blue, 18–16 AWG (solid/stranded), 14 AWG (stranded), 100 per pouch, 1000/case - 7100166938

Sold As: 1000-Pack
SKU: 7100166938
MPN: 7100166938
For an accurate lead time please contact us
UPC: 00054007200901
3M ID: 80000209603
$292.21 ($0.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Insulation Displacement Connector 560/560B is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Helps provide a moisture-resistant seal
  • Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Accommodates 22 to 14 AWG solid/stranded
Spec Sheet



Downloads

Specifications

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Run Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Conductor Size (Metric)1.5
Minimum Operating Temperature (Celsius)0.0
Tap Maximum Insulation Outer Diameter (Metric)3.7
UL File NumberE23438
Units per Case1000.0
Country of OriginUnited States
Connection TypeDouble Run or Tap
Run Maximum Insulation Outer Diameter (Metric)3.7
Tap Maximum Insulation Outer Diameter (Imperial)0.145
Wire Connector TypeIDC Connectors
Recommended Crimping ToolE-9BM or 9 in. Linemans Pliers
PackagingPouch
Minimum Operating Temperature (Fahrenheit)0.0
Conductor Sizes (Imperial)14 AWG (Stranded)
Interrupt Free ShiftingNo
Voltage ApplicationLow Voltage

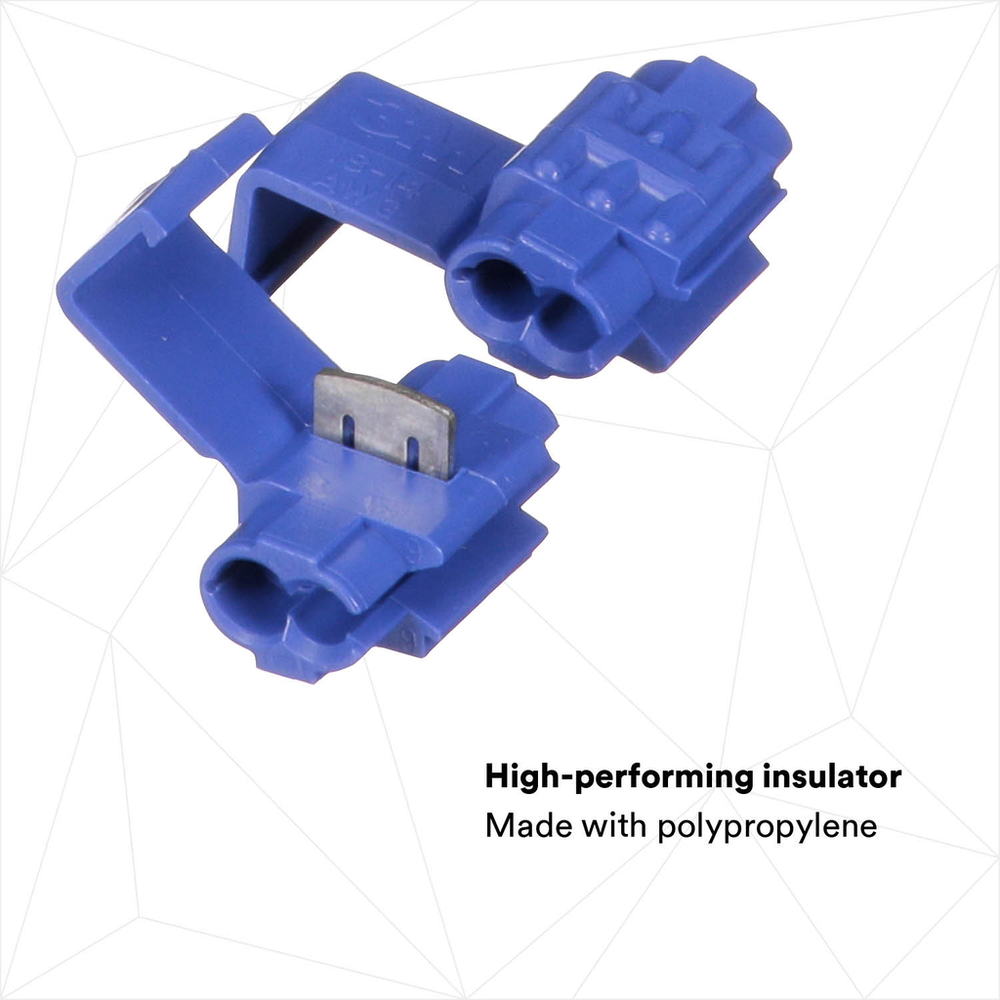

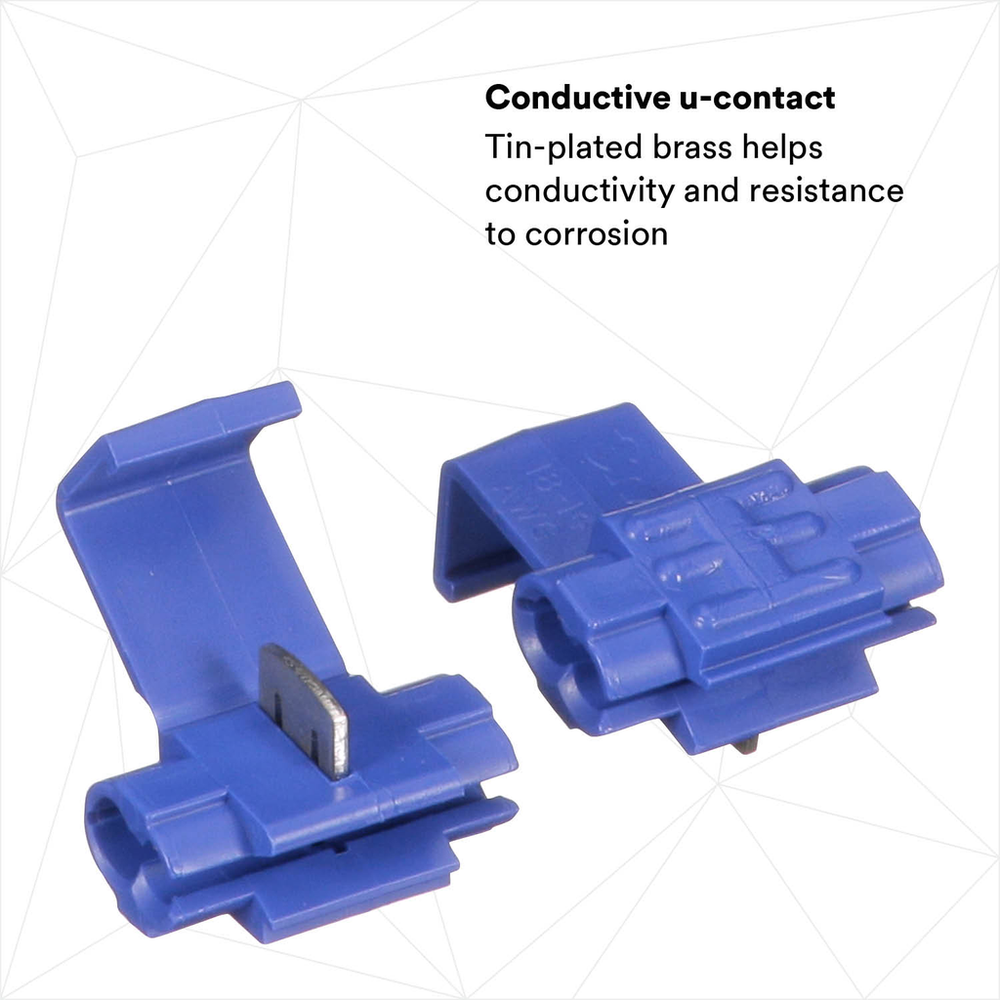

MaterialInsulator: FR Polypropylene, U-contact: Tin-plated Brass
