3M Products & Supplies

3M™ Scotchlok™ Electrical Idc 562-Pouch, Yellow, 12 Awg (Solid/Stranded), 10 Awg (Stranded), 100/Pouch, 1000/Case - 7100166940

Sold As: 1000-Pack
SKU: 7100166940
MPN: 7100166940
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007110320
3M ID: 80000209629
5 Digit UPC: 11032
$532.76 ($0.53 / Count)
Hurry up! Current stock:

Product Description

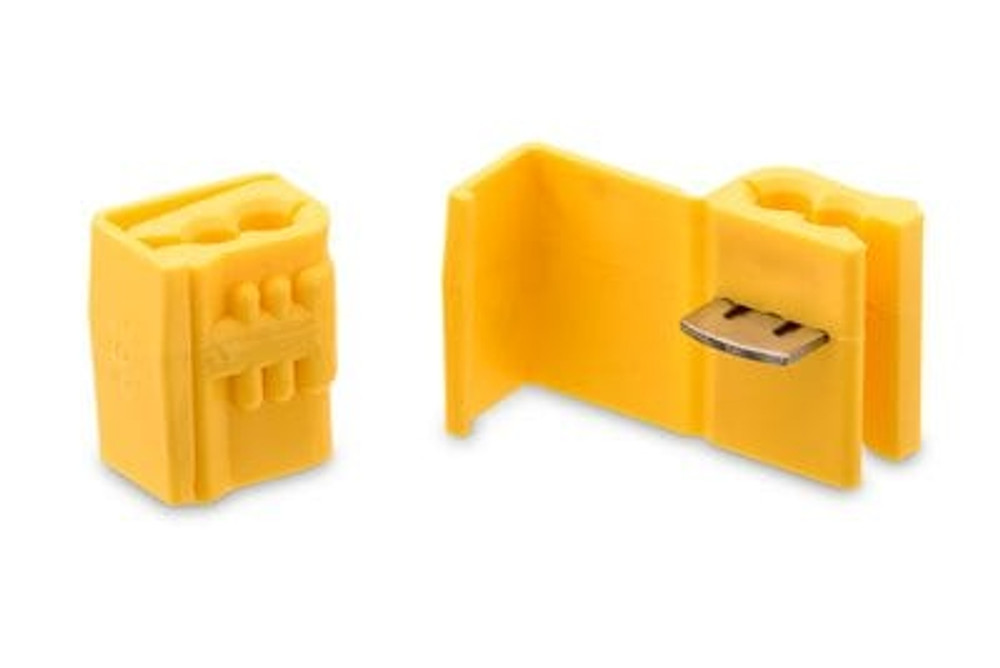

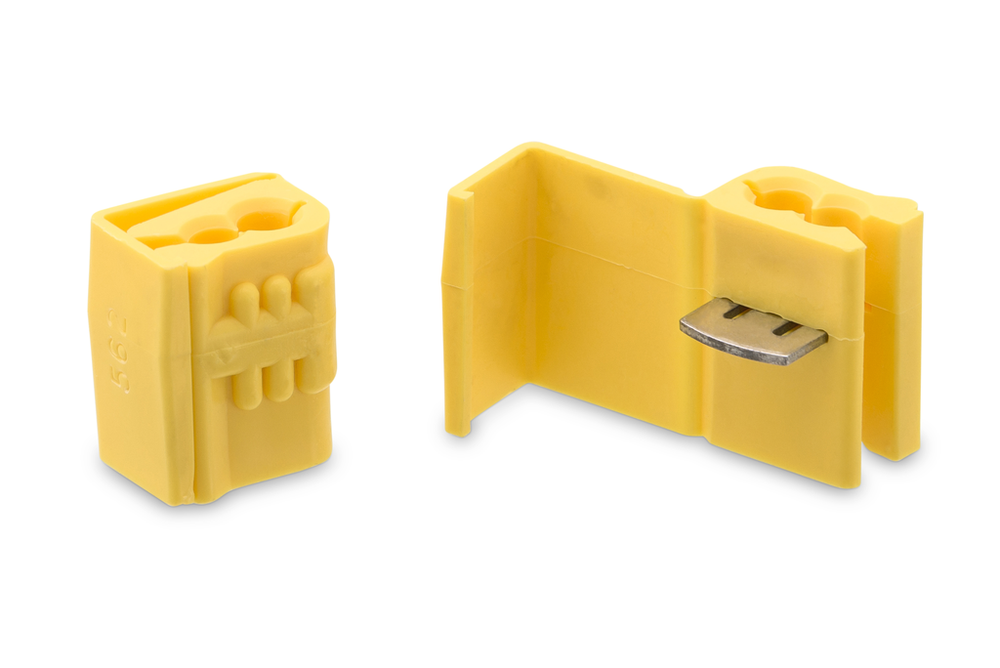

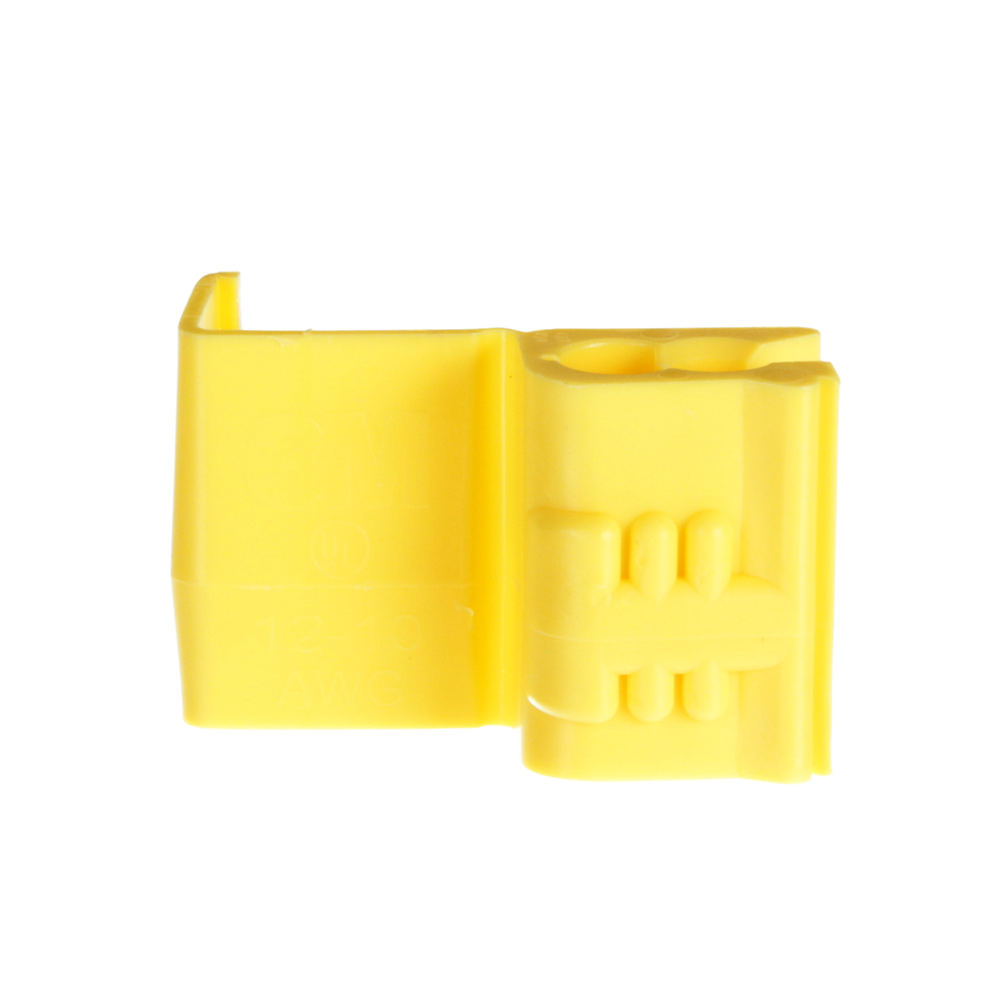

3M™ Scotchlok™ Insulation Displacement Connector 562 is a double run or tap connector for tap or parallel splicing. Polypropylene insulated, self stripping and flame retardant.

Features

  • Rated for 32V applications
  • Yellow, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Accommodates 18 to 14 AWG solid/stranded
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)4 mm²
Max. Number of Cores2.0
Run Maximum Insulation Outer Diameter (Metric)4.82
Flame RetardantYes
MaterialInsulator: FR Polypropylene, U-contact: Tin-plated Brass
Units per Case1000.0
Tap Maximum Insulation Outer Diameter (Imperial)0.19
Maximum Recommended Voltage Rating600.0
Voltage ApplicationLow Voltage
Tap Maximum Insulation Outer Diameter (Metric)4.82
Wire Connector TypeIDC Connectors
Run Maximum Insulation Outer Diameter (Imperial)0.19
Minimum Conductor Size (Imperial)12 AWG
PackagingBox
Maximum Conductor Size (Metric)4
Connector / Connector Tool3M Crimping Tool E-9BM and/or 9" Lineman's Pliers

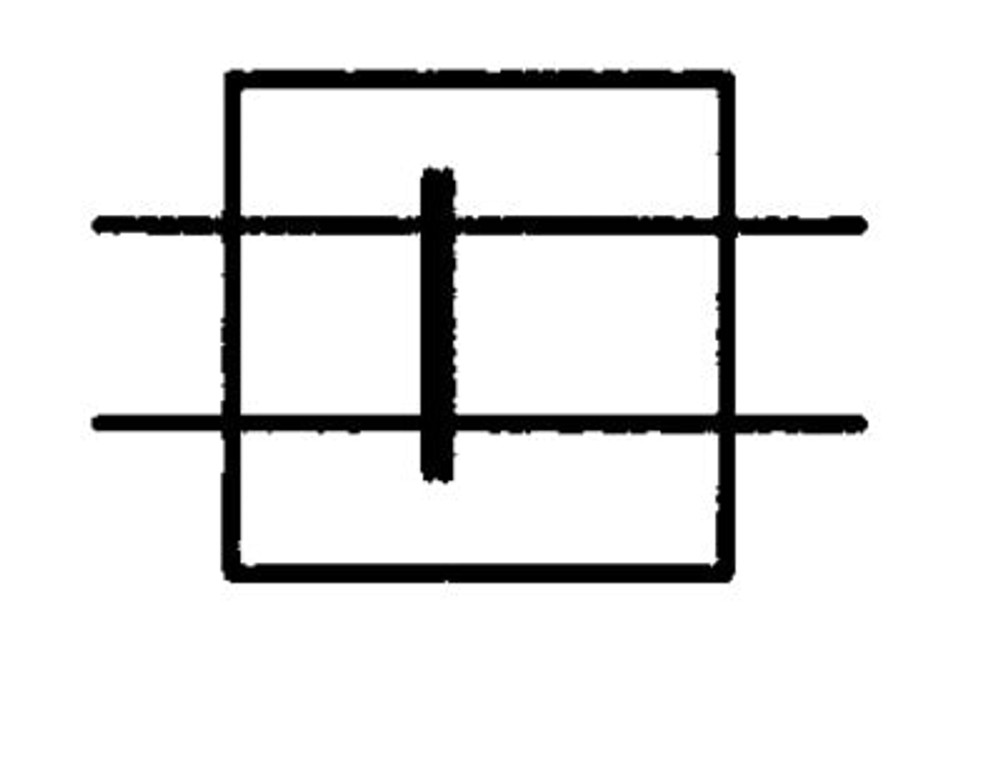

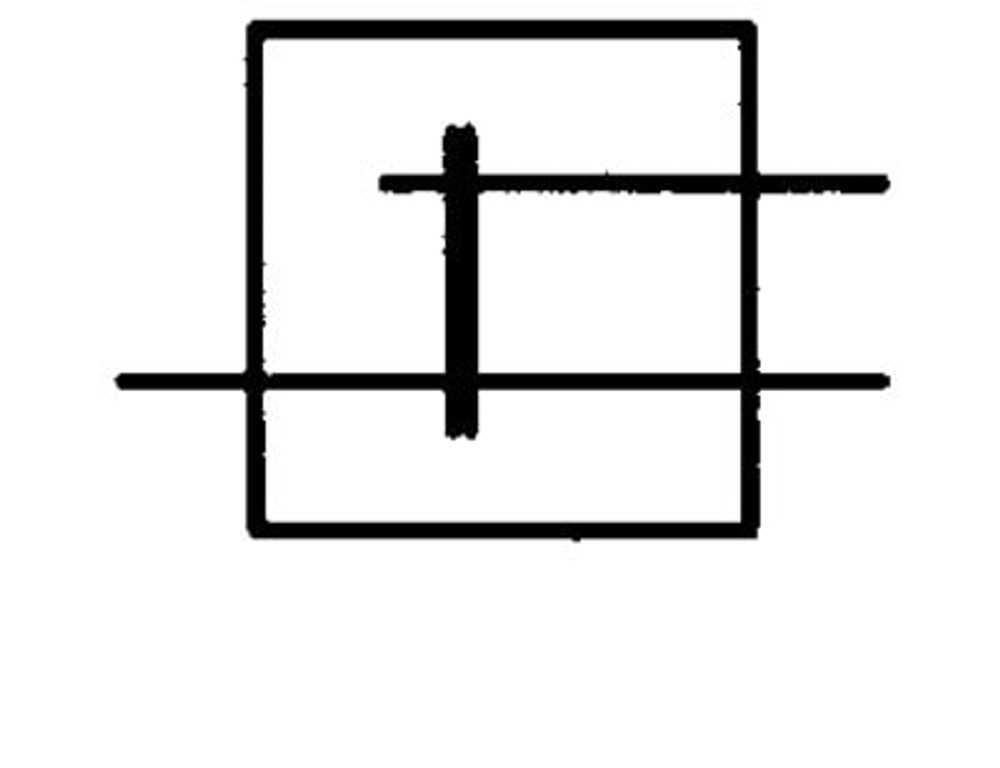

Connection TypeDouble Run or Tap
Conductor Sizes (Imperial)10 AWG (Stranded)
Interrupt Free ShiftingNo
Moisture ResistantNo
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation ColorYellow
Maximum Recommended Voltage Rating UOMV
UL File NumberE23438
