3M™ Scotchlok™ Electrical Idc 560-Pouch, Light Blue, 18–16 Awg (Solid/Stranded), 14 Awg (Stranded), 100/Pouch, 1000/Case - 7100166939

Sold As: 1000-Pack
SKU: 7100166939
MPN: 7100166939
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007008392
3M ID: 80000209611
5 Digit UPC: 839
$304.93 ($0.30 / Count)
Hurry up! Current stock:

Product Description

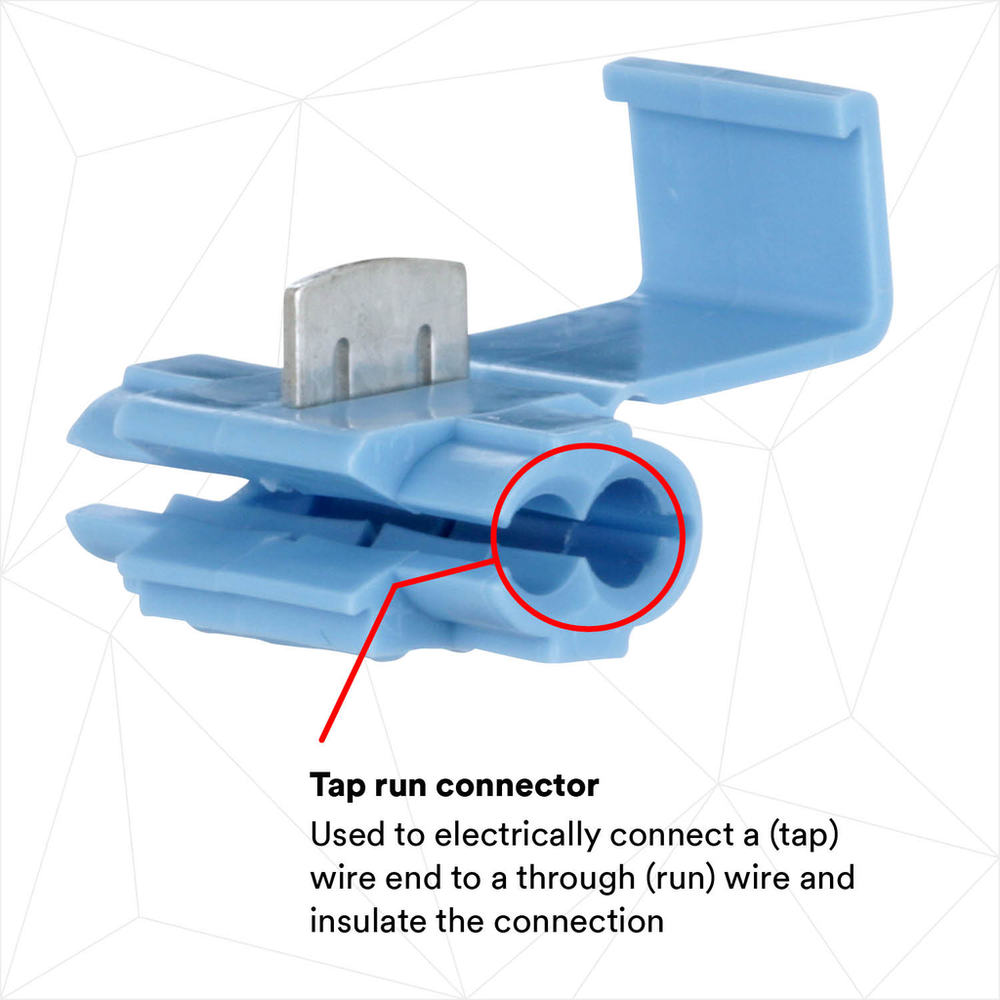

3M™ Scotchlok™ Insulation Displacement Connector 560/560B is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.

Features

  • Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Helps provide a moisture-resistant seal
  • Accommodates 22 to 14 AWG solid/stranded
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Tap Maximum Insulation Outer Diameter (Metric)3.7
Run Maximum Insulation Outer Diameter (Imperial)0.145
Wire Connector TypeIDC Connectors
Units per Case1000.0
Interrupt Free ShiftingNo
MaterialInsulator: FR Polypropylene, U-contact: Tin-plated Brass
Minimum Operating Temperature (Fahrenheit)0.0
Minimum Operating Temperature (Celsius)0.0
UL File NumberE23438
Max. Number of Cores2.0
Voltage ApplicationLow Voltage
Connection TypeDouble Run or Tap
PackagingBox
Conductor Sizes (Imperial)14 AWG (Stranded)
Run Maximum Insulation Outer Diameter (Metric)3.7
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tap Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Conductor Size (Metric)1.5
Voltage750 V
Flame RetardantYes
Maximum Insulation Diameter (Inside Port)0.15 in
Maximum Recommended Voltage Rating UOMV
Maximum Recommended Voltage Rating750.0
Minimum Conductor Size (Imperial)18 AWG
Maximum Voltage Rating600 V (1000 V in signs, lighting fixtures and luminaries)
Insulation ColorBlue
Maximum Insulation Diameter (Inside Port) (Metric)3.8 mm
Maximum Operating Temperature (Celsius)105.0
Connector StyleInsulation Displacement
Insulation MaterialPolypropylene
Minimum Conductor Size (Metric)1 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Moisture ResistantNo
Product ColorLight Blue
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product TypeConnector
Operating Temperature (Celsius)105°
Maximum Operating Temperature (Celsius) UOMDegree
