3M Products & Supplies

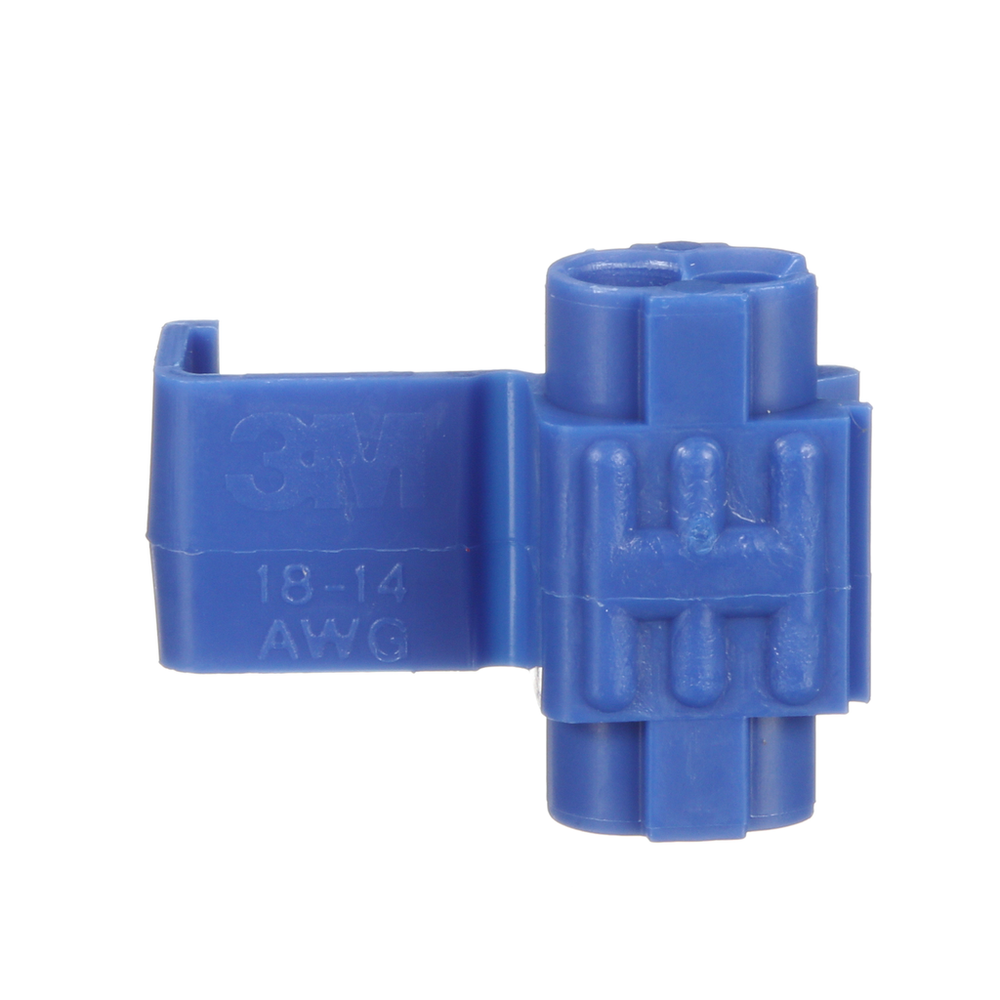

3M™ Scotchlok™ Electrical IDC 560B-BULK, Blue, 18–16 AWG (solid/stranded), 14 AWG (stranded), 500 per carton, 5000/case - 7000005896

Sold As: 5000-Pack
SKU: 7000005896
MPN: 7000005896
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007201813
3M ID: 80610052773
5 Digit UPC: 20181
$599.45 ($0.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Insulation Displacement Connector 560/560B is a double run or tap connector for tap or parallel splicing. It is suitable for general purpose electrical connections on an auto, boat, van or trailer. Polypropylene insulated, self stripping and flame retardant.

Features

  • Blue, polypropylene-insulated connector is suitable for tap or parallel splicing
  • Accommodates 22 to 14 AWG solid/stranded
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Helps provide a moisture-resistant seal
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Run Maximum Insulation Outer Diameter (Imperial)0.145
Product ColorBlue
PackagingBulk
Voltage ApplicationLow Voltage
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Operating Temperature (Fahrenheit)0.0
UL File NumberE23438
Tap Maximum Insulation Outer Diameter (Imperial)0.145
Wire Connector TypeIDC Connectors
Connection TypeDouble Run or Tap
Conductor Sizes (Imperial)14 AWG (Stranded)
Tap Maximum Insulation Outer Diameter (Metric)3.7
MaterialInsulator: FR Polypropylene, U-contact: Tin-plated Brass
Maximum Conductor Size (Metric)1.5
Run Maximum Insulation Outer Diameter (Metric)3.7
Minimum Operating Temperature (Celsius)0.0
