3M Products & Supplies

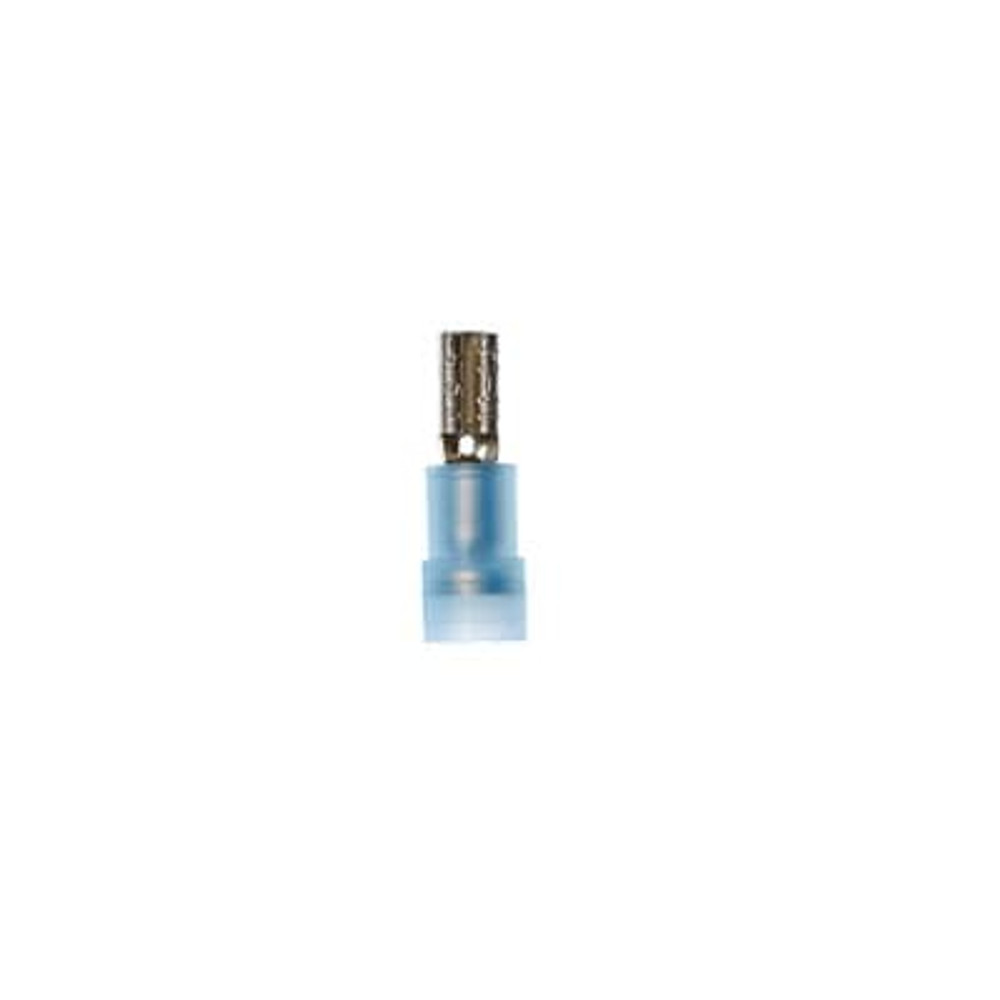

3M™ Scotchlok™ Female Disconnect, 16-14 AWG, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7100165134

Sold As: 1000-Pack
SKU: 7100165134
MPN: 7100165134
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128574379
3M ID: 80611440373
5 Digit UPC: 57437
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginTaiwan
Overall Length (Imperial)0.77
Connection Width (Metric)2.794
Terminal StyleStandard
Units per Case1000.0
Minimum Conductor Size (Imperial)16 AWG
Insulation MaterialNylon with Insulation Grip
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mates with Female Width0.110 Inch
Fastener OrientationFemale
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.11
Mates with Male Tab Width (W')0.110 Inch
Disconnect TypeFemale
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial) UOMin
Terminal TypeDisconnect
Packaging1 per bulk box
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial)0.2
