3M Products & Supplies

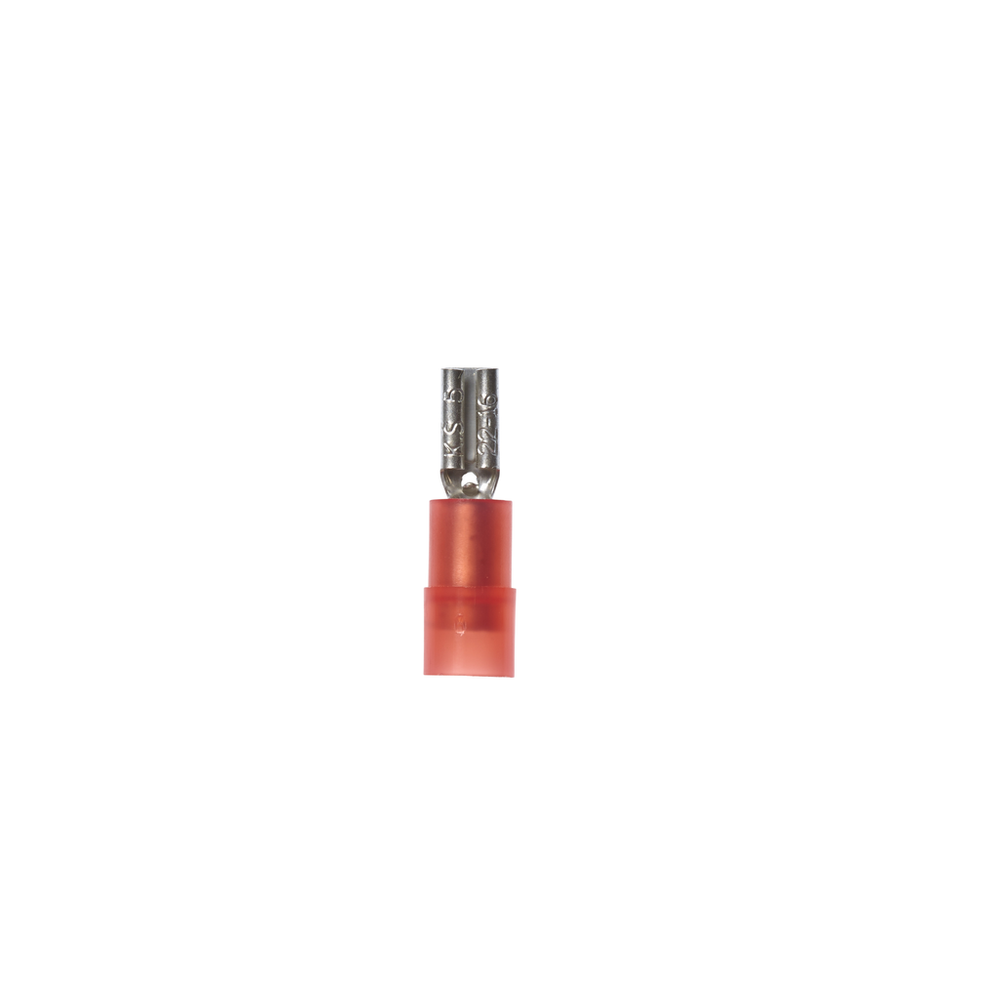

3M™ Scotchlok™ Female Disconnect, 22-18 AWG, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7100165136

Sold As: 1000-Pack
SKU: 7100165136
MPN: 7100165136
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128574454
3M ID: 80611440456
5 Digit UPC: 57445
$507.96 ($0.51 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating

Downloads

Specifications

Country of OriginTaiwan
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial) UOMin
Disconnect TypeFemale
Units per Case1000.0
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial) UOMin
Barrel StyleButted
Connection Width (Metric)2.794
Mates with Female Width0.110 Inch
Maximum Conductor Size (Metric)1 mm²
Mates with Male Tab Width (W')0.110 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeDisconnect
Packaging1 per bulk box
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric).34 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Insulation MaterialNylon with Insulation Grip
Connection Width (Imperial)0.11
Overall Length (Imperial)0.77
Maximum Insulation Outer Diameter (Imperial)0.16
Fastener OrientationFemale
Terminal StyleStandard
