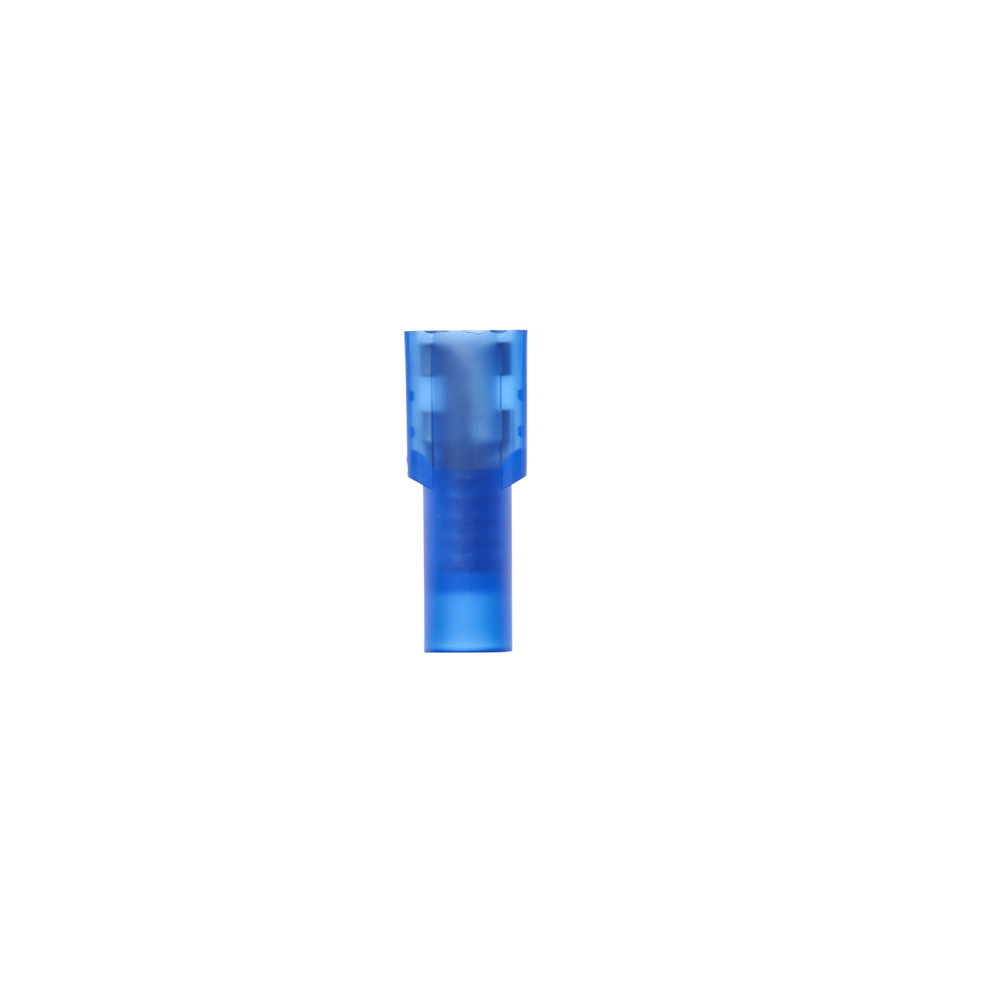

3M™ Scotchlok™ Female Disconnect, Fully Nylon Insulated Butted Seam MNU14-187DFIK, 16-14 AWG, 1000/Case - 7100164189

Sold As: 1000-Pack
SKU: 7100164189
MPN: 7100164189
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023845
3M ID: 80610065007
5 Digit UPC: 2384
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 16-14 AWG and has case quantities of 500 per case.

Features

  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Diameter (Imperial)0.23
Fastener OrientationFemale
Diameter (D)0.23 Inch
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)2.5 mm²
Barrel Inside Diameter0.085 Inch
Connection Width (Metric)4.75
Maximum Conductor Size (Imperial)14 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)0.3
Packaging1000 per bulk box
Insulation MaterialNylon
Units per Case1000.0
Minimum Conductor Size (Metric)1.5 mm²
Pad Width0.187
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Imperial)0.187
Overall Diameter (Imperial) UOMin
Overall Length (Imperial)0.81
Maximum Insulation Outer Diameter (Imperial)0.145
Overall Length (Imperial) UOMin
UL File NumberE70512
Connection Width (Metric) UOMmm
Barrel StyleButted
Disconnect TypeFemale
Tab Width0.250
Terminal TypeDisconnect
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Imperial) UOMin
Mates with Male Tab Width (W')0.187 Inch
Mates with Female Width0.187 Inch
Overall Width (Imperial) UOMin
Terminal StyleFully Insulated
