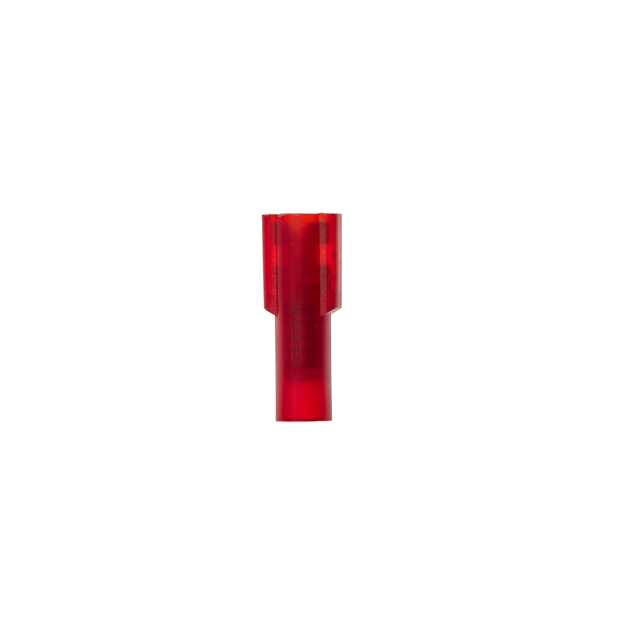

3M™ Scotchlok™ Female Disconnect, Fully Nylon Insulated Butted Seam MNU18-250DFIK, 22-18 AWG, 1/Case - 7000057723

Sold As: 1000-Pack
SKU: 7000057723
MPN: 7000057723
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007022909
3M ID: 80610057673
5 Digit UPC: 2290
$524.41 ($0.52 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 16-14 AWG and has case quantities of 500 per case.

Features

  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Product ColorRed
Minimum Conductor Size (Metric).34 mm²
Barrel Inside Diameter0.08 Inch
Maximum Insulation Outer Diameter (Metric)3.7
Units per Case1000.0
Maximum Insulation Outer Diameter (Metric) UOMmm
Disconnect TypeFemale
Mates with Male Tab Width (W')0.25 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Packaging1000 per bulk box
Maximum Operating Temperature (Celsius) UOMDegree
Overall Diameter (Imperial) UOMin
Connection Width (Metric) UOMmm
Terminal TypeDisconnect
Flame RetardantNo
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Connection Width (Imperial) UOMin
Pad Width0.25
Connection Width (Imperial)0.25
Maximum Insulation Outer Diameter (Imperial) UOMin
UL File NumberE70512
Insulation ColorRed
Diameter (D)0.23 Inch
Tab Width0.250
Maximum Recommended Voltage Rating600.0
Grease Filling Against CorrosionNo
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connector StyleInsulation Displacement
Maximum Conductor Size (Metric)1 mm²
Connection TypeWire
Mates with Female Width0.250 Inch
MaterialPlastic
Maximum Recommended Voltage Rating UOMV
Fastener OrientationFemale
Overall Width (Imperial)0.37
Conductor Sizes (Imperial)22 - 18 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Terminal StyleFully Insulated
Connection Width (Metric)6.35
Overall Diameter (Imperial)0.23
Interrupt Free ShiftingNo
Minimum Conductor Size (Imperial)22 AWG
Insulation MaterialNylon
Overall Length (Imperial)0.87
Barrel Length (Imperial)0.25 Inch
Barrel StyleButted
Maximum Insulation Outside Diameter0.145 in
Maximum Conductor Size (Imperial)18 AWG
Connector / Connector ToolConnector
Male Tab Width (W')0.25 Inch
Maximum Operating Temperature (Celsius)105.0
