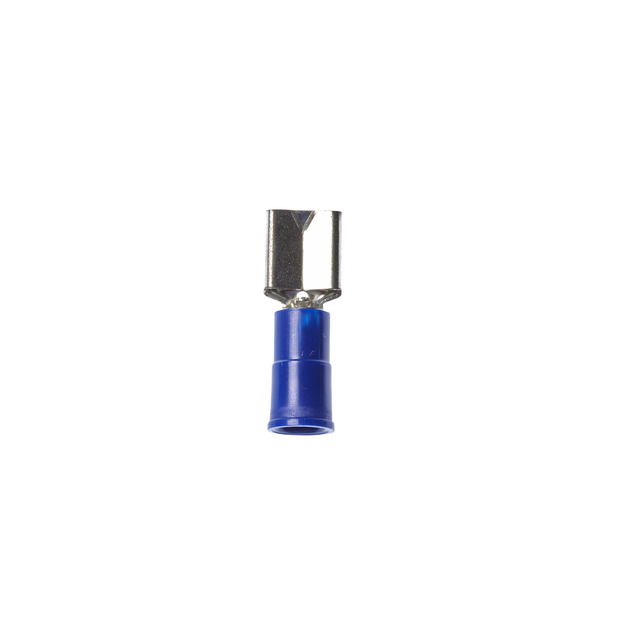

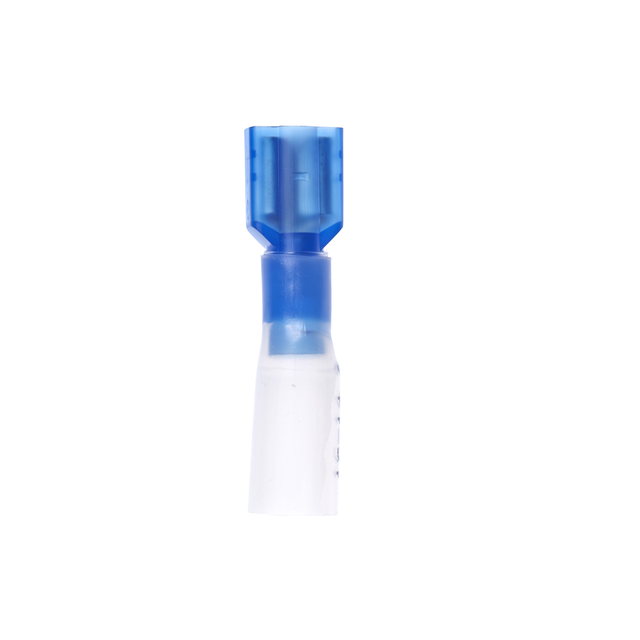

3M™ Scotchlok™ Female Disconnect, Nylon Fully Insulated Butted Seam w/Interlocking Barrel MNI14-250DFIK, 16-14 AWG - 7100164302

Sold As: 1000-Pack
SKU: 7100164302
MPN: 7100164302
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007695752
3M ID: 80610531339
5 Digit UPC: 69575
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Mates with 0.25-in wide male tab
  • Nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Mates with Male Tab Width (W')0.25 Inch
Maximum Insulation Outer Diameter (Imperial)0.145
Fastener OrientationFemale
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Mates with Female Width0.25 Inch
Maximum Conductor Size (Metric)2.5 mm²
Barrel StyleInterlocking Barrel
Pad Width0.25
Connection Width (Imperial) UOMin
Terminal TypeDisconnect
Barrel Inside Diameter0.076 Inch
Overall Length (Imperial)0.91
UL File NumberE70512
Minimum Conductor Size (Metric)1.5 mm²
Disconnect TypeFemale
Units per Case1000.0
Connection Width (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tab Width0.250
Connection Width (Imperial)0.25
Barrel Length (Imperial)0.25 Inch
Male Tab Width (W')0.250 Inch
Maximum Conductor Size (Imperial)14 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Packaging1000 per bulk box
Insulation MaterialNylon
Connection Width (Metric)6.35
Terminal StyleFully Insulated
