3M Products & Supplies

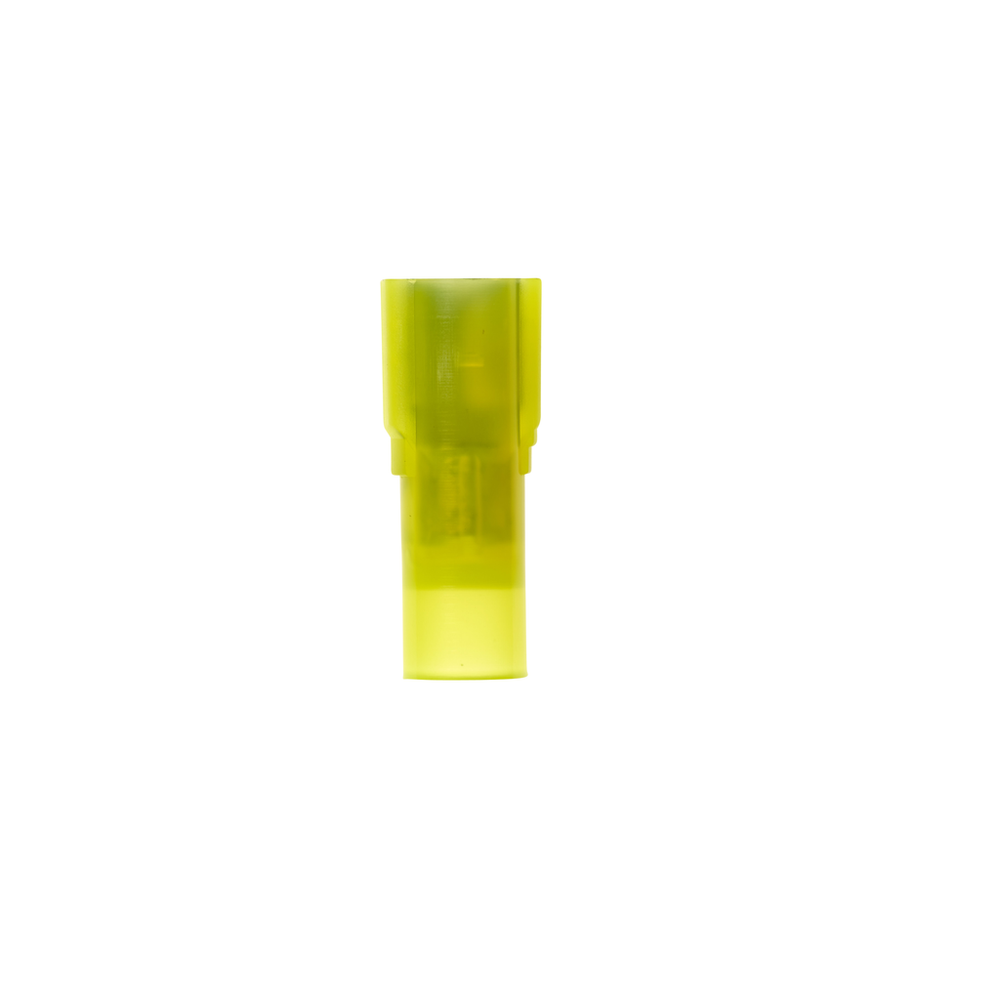

3M™ Scotchlok™ Female Disconnect, Nylon Fully Insulated Butted Seam w/Interlocking Barrel MNI10-250DFIK, 12-10 AWG, 500/Case - 7100164301

Sold As: 500-Pack
SKU: 7100164301
MPN: 7100164301
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007695738
3M ID: 80610531313
5 Digit UPC: 69573
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Units per Case500.0
Fastener OrientationFemale
Connection Width (Metric)6.35
Pad Width0.25
Male Tab Width (W')0.250 Inch
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleInterlocking Barrel
Insulation MaterialNylon
Minimum Conductor Size (Metric)4 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Metric) UOMmm
Terminal StyleFully Insulated
Maximum Conductor Size (Metric)6 mm²
Mates with Male Tab Width (W')0.25 Inch
Terminal TypeDisconnect
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel Inside Diameter0.128 Inch
Tab Width0.250
Disconnect TypeFemale
Packaging500 per bulk box
Connection Width (Imperial)0.25
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial)0.99
UL File NumberE70512
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Connection Width (Imperial) UOMin
Mates with Female Width0.25 Inch
