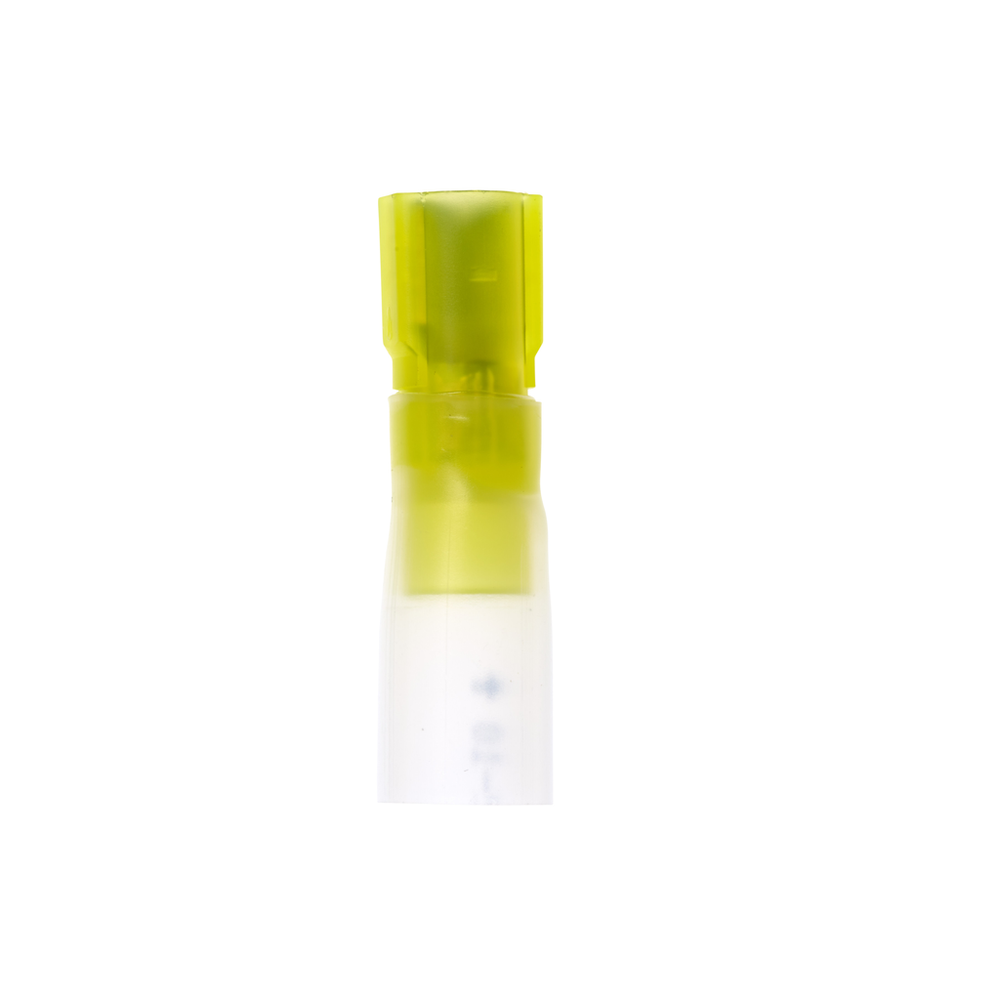

3M™ Scotchlok™ Female Disconnect, Heat Shrink Fully Nylon Insulated Butted Seam MNHU10-250DFIK, 12-10 AWG, 250/Case - 7000132444

Sold As: 250-Pack
SKU: 7000132444
MPN: 7000132444
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063155
3M ID: 80610456487
5 Digit UPC: 6315
$309.04 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Mates with 0.25-in wide male tab
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.39
Packaging250 per bulk box
Maximum Conductor Size (Imperial)10 AWG
Connector / Connector ToolConnector
Minimum Conductor Size (Metric)4 mm²
Male Tab Width (W')0.25 Inch
Insulation ColorYellow
Disconnect TypeFemale
Barrel Length (Imperial)0.25 Inch
Interrupt Free ShiftingNo
Terminal TypeDisconnect
Maximum Insulation Outside Diameter0.145 in
Units per Case250.0
Maximum Conductor Size (Metric)6 mm²
Connection Width (Imperial) UOMin
Fastener OrientationFemale
Pad Width0.25
Connection Width (Imperial)0.25
Connection TypeWire
Connection Width (Metric)6.35
Diameter (D)0.32 Inch
Maximum Operating Temperature (Celsius)105.0
Maximum Recommended Voltage Rating UOMV
Product ColorYellow
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Conductor Size (Imperial)12 AWG
Barrel Inside Diameter0.165 Inch
Tab Width0.250
Terminal StyleFully Insulated
Overall Diameter (Imperial) UOMin
Overall Diameter (Imperial)0.32
Insulation MaterialHeat Shrink
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Overall Length (Imperial)1.2
Connector StyleInsulation Displacement
Maximum Operating Temperature (Fahrenheit)221.0
Connection Width (Metric) UOMmm
Grease Filling Against CorrosionNo
Maximum Recommended Voltage Rating600.0
Conductor Sizes (Imperial)12 - 10 AWG
Mates with Male Tab Width (W')0.25 Inch
Flame RetardantNo
Barrel StyleButted
Maximum Operating Temperature (Fahrenheit) UOMDegree
