3M™ Scotchlok™ Female Disconnect Nylon Insulated, 50/bottle, MNGI10-250DFIX, 500/Case - 7000133398

Sold As: 500-Pack
SKU: 7000133398
MPN: 7000133398
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589205
3M ID: 80611465669
5 Digit UPC: 58920
$618.09 ($1.24 / Count)
Hurry up! Current stock:

Product Description

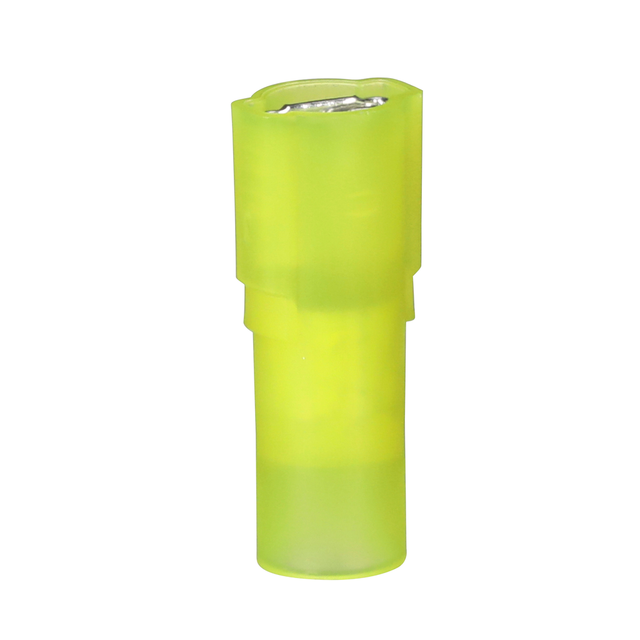

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Mates with 0.25-in wide male tab
  • Allows for quick and easy disconnect of wires

Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric)6.35
Maximum Operating Temperature (Celsius)105.0
Insulation ColorYellow
Connector / Connector ToolConnector
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Metric) UOMmm
Minimum Conductor Size (Metric)4 mm²
Connector StyleInsulation Displacement
Grease Filling Against CorrosionNo
Conductor Sizes (Imperial)12 - 10 AWG
Mates with Male Tab Width (W')0.25 Inch
Overall Diameter (Imperial) UOMin
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Overall Width (Imperial) UOMin
Terminal StyleFully Insulated
Connection Width (Imperial)0.25
Overall Length (Imperial)0.94
Overall Width (Imperial)0.37
Connection TypeWire
Barrel Length (Imperial)0.25 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Male Tab Width (W')0.250 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tab Width0.250
Maximum Insulation Outer Diameter (Metric)3.7
Diameter (D)0.23 Inch
Connection Width (Metric) UOMmm
Maximum Conductor Size (Metric)6 mm²
Maximum Insulation Outer Diameter (Imperial)0.25
Flame RetardantNo
Maximum Insulation Outside Diameter0.145 in
Fastener OrientationFemale
Pad Width0.25
Overall Length (Metric)23.87
Maximum Insulation Outer Diameter (Metric) UOMmm
Insulation MaterialNylon with Insulation Grip
Barrel Inside Diameter0.165 Inch
Units per Case500.0
Terminal TypeDisconnect
Packaging50 per bottle
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Disconnect TypeFemale
Minimum Conductor Size (Imperial)12 AWG
Maximum Recommended Voltage Rating600.0
UL File NumberE70512
MaterialETP Copper
Maximum Recommended Voltage Rating UOMV
Product ColorYellow
Overall Diameter (Imperial)0.23
Barrel StyleInterlocking Barrel
Maximum Insulation Outer Diameter (Imperial) UOMin
Interrupt Free ShiftingNo
