3M Products & Supplies

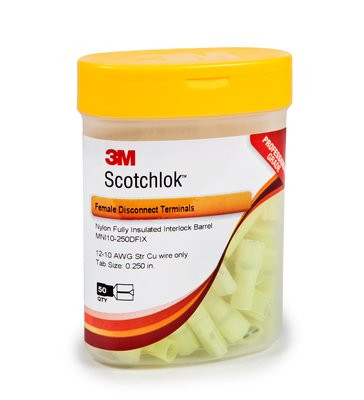

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 50/bottle, MNI10-250DFIX, 500/Case - 7000133400

Sold As: 50-Pack
SKU: 7000133400
MPN: 7000133400
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589304
3M ID: 80611465768
5 Digit UPC: 58930
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

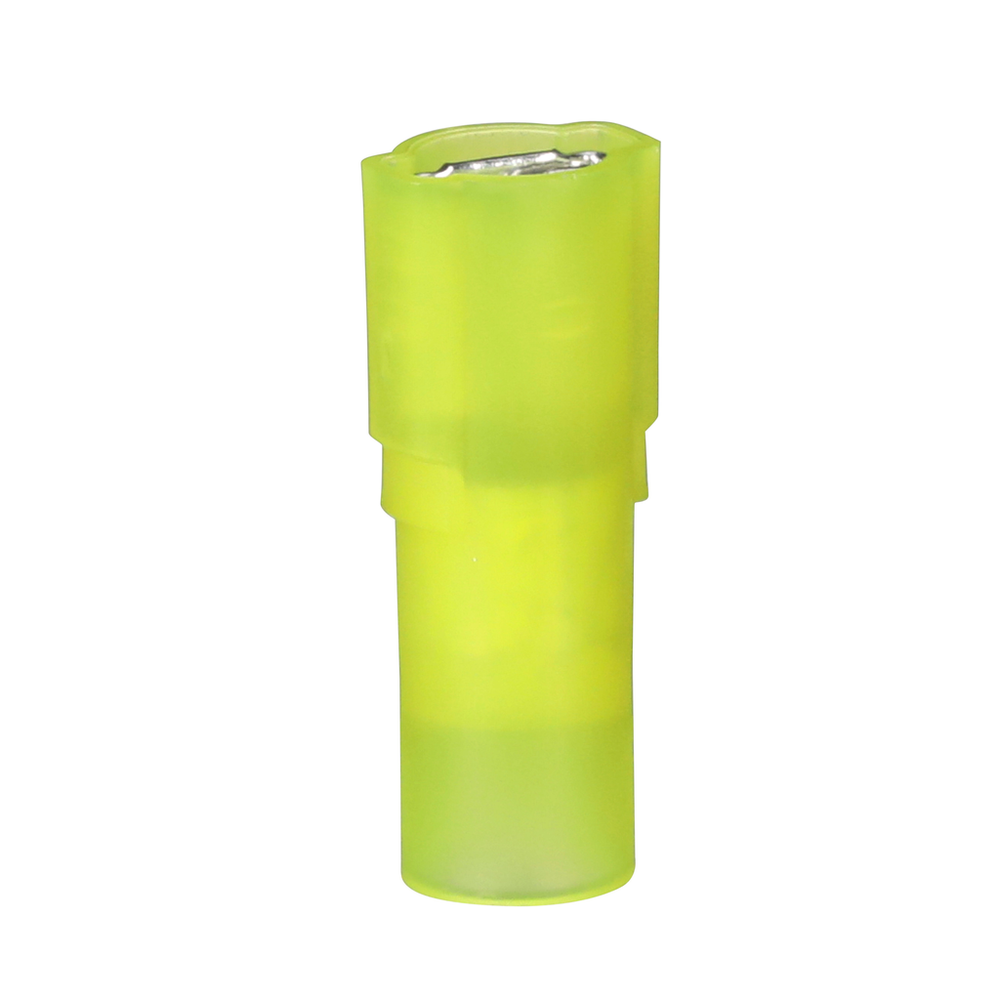

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Mates with 0.25-in wide male tab

Downloads

Specifications

Country of OriginUnited States
Connector StyleInsulation Displacement
Maximum Insulation Outer Diameter (Imperial)0.145
Units per Case500.0
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Connection TypeWire
Maximum Insulation Outer Diameter (Metric)3.7
Barrel Length (Imperial)0.25 Inch
Interrupt Free ShiftingNo
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Mates with Male Tab Width (W')0.25 Inch
Male Tab Width (W')0.250 Inch
Maximum Insulation Outside Diameter0.145 in
Overall Length (Metric) UOMmm
Terminal TypeDisconnect
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNylon
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric)6.35
Flame RetardantNo
MaterialETP Copper
Product ColorYellow
Overall Width (Imperial)0.37
Overall Length (Imperial) UOMin
Grease Filling Against CorrosionNo
Maximum Conductor Size (Metric)6 mm²
Maximum Recommended Voltage Rating UOMV
Disconnect TypeFemale
Overall Length (Metric)25.14
UL File NumberE70512
Tab Width0.250
Maximum Insulation Outer Diameter (Metric) UOMmm
Fastener OrientationFemale
Overall Diameter (Imperial)0.23
Maximum Conductor Size (Imperial)10 AWG
Overall Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)4 mm²
Overall Length (Imperial)0.99
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.25
Overall Width (Imperial) UOMin
Pad Width0.25
Packaging50 per bottle
Conductor Sizes (Imperial)12 - 10 AWG
Diameter (D)0.23 Inch
Insulation ColorYellow
Maximum Recommended Voltage Rating600.0
Barrel Inside Diameter0.128 Inch
Connector / Connector ToolConnector
Barrel StyleInterlocking Barrel
Terminal StyleFully Insulated
