3M Products & Supplies

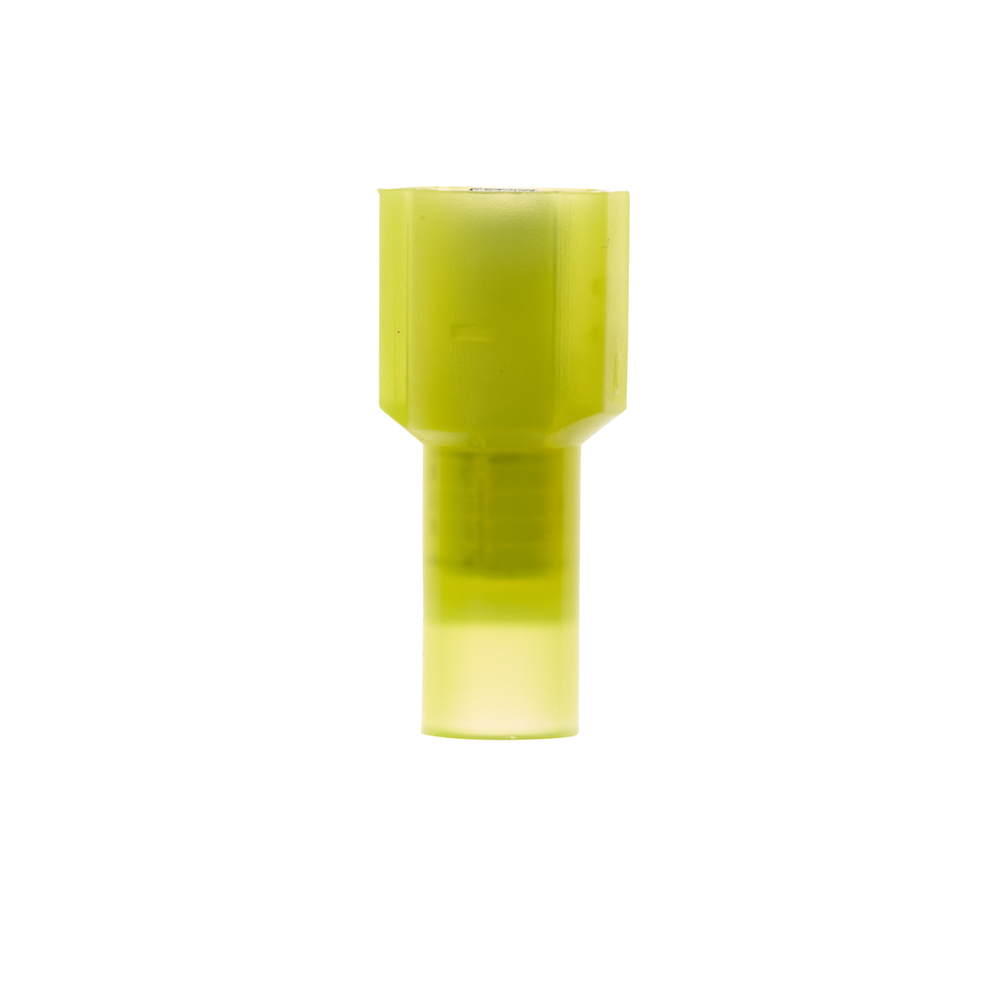

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 50/bottle, MNU10-250DFIX, 500/Case - 7100165255

Sold As: 50-Pack
SKU: 7100165255
MPN: 7100165255
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128588120
3M ID: 80611464589
5 Digit UPC: 58812
$61.81 ($1.24 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 16-14 AWG and has case quantities of 500 per case.

Features

  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Terminal StyleFully Insulated
Minimum Conductor Size (Metric)4 mm²
Mates with Male Tab Width (W')0.250 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Diameter (D)0.99 Inch
Maximum Conductor Size (Metric)6 mm²
Conductor Sizes (Imperial)12 - 10 AWG
Mates with Female Width0.250 Inch
Connection Width (Metric) UOMmm
Packaging50 per bottle
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Imperial) UOMin
Barrel StyleButted
Disconnect TypeFemale
Barrel Inside Diameter0.128 Inch
Units per Case500.0
Tab Width0.250
Minimum Conductor Size (Imperial)12 AWG
Connection Width (Metric)6.35
Overall Diameter (Imperial) UOMin
Connection Width (Imperial)0.25
Terminal TypeDisconnect
Overall Diameter (Imperial)0.99
Insulation MaterialNylon
Fastener OrientationFemale
Pad Width0.25
