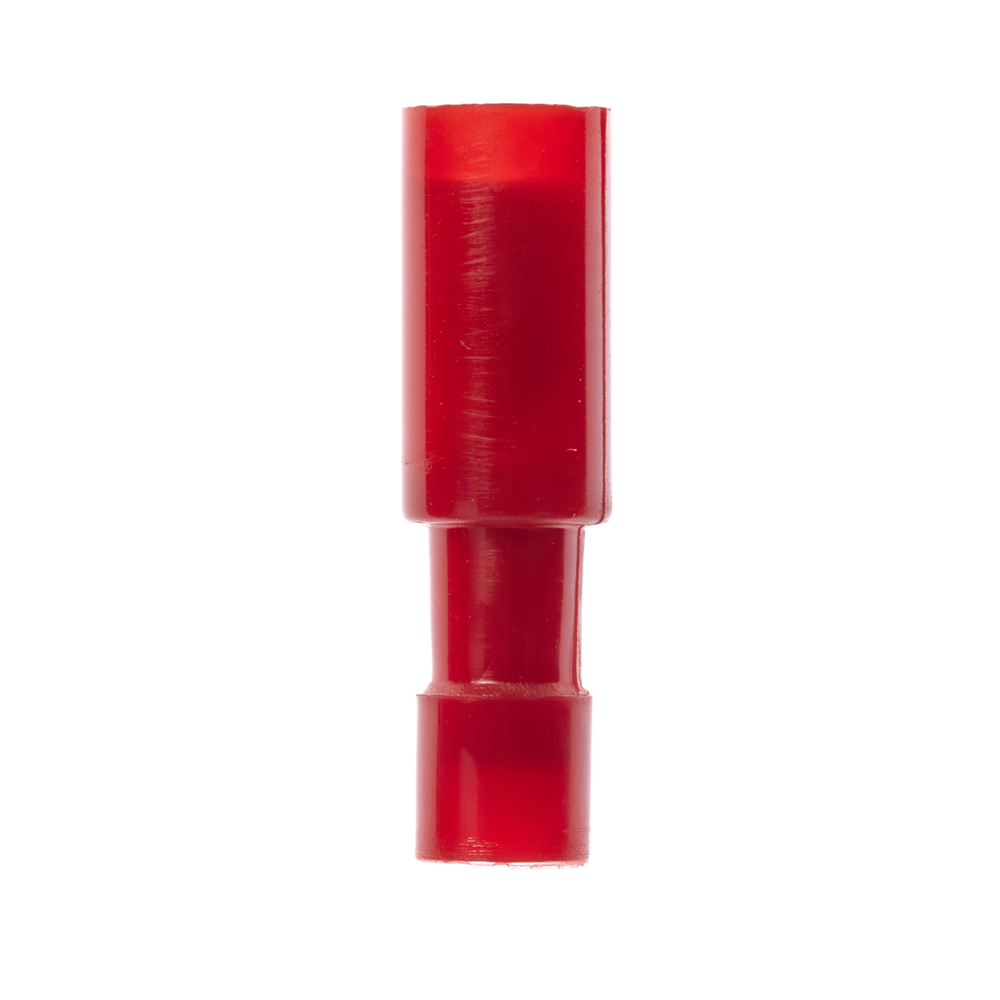

3M™ Scotchlok™ Female Disconnect, Nylon Insulated w/Insulation Grip Bullet Style, MNG18-180DFIK-A, 1000/Case - 7000133195

Sold As: 1000-Pack
SKU: 7000133195
MPN: 7000133195
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138980849
3M ID: 80611444292
5 Digit UPC: 98084
$674.24 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Bullet Style Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for easy disconnect. The snap plug has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Mates with 0.156-in wide male tab
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Accommodates wire sizes 22 to 18 AWG
Spec Sheet



Downloads

Specifications

Country of OriginTaiwan
Overall Length (Imperial)1.0
Overall Length (Imperial) UOMin
Voltage ApplicationLow Voltage
Units per Case1000.0
Disconnect TypeFemale
MaterialPlastic
Terminal StyleBullet Snap Plug
Insulation MaterialNylon with Insulation Grip
Mating Snap Diameter (S)0.18 Inch
Connection Width (Metric) UOMmm
Bullet Diameter0.156
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial)0.18
Maximum Recommended Voltage Rating600.0
Packaging1000 per bulk box
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outside Diameter0.145 in
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Conductor Size (Metric)1 mm²
Maximum Operating Temperature (Celsius)105.0
Barrel StyleButted
Minimum Conductor Size (Metric).34 mm²
Connection Width (Metric)4.572
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Imperial)18 AWG
Conductor Sizes (Imperial)22 - 18 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Connection Width (Imperial) UOMin
Insulation ColorRed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.095 Inch
Pad Width0.18
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Metric)3.81
Maximum Operating Temperature (Fahrenheit) UOMDegree
Fastener OrientationFemale
Product ColorRed
