3M Products & Supplies

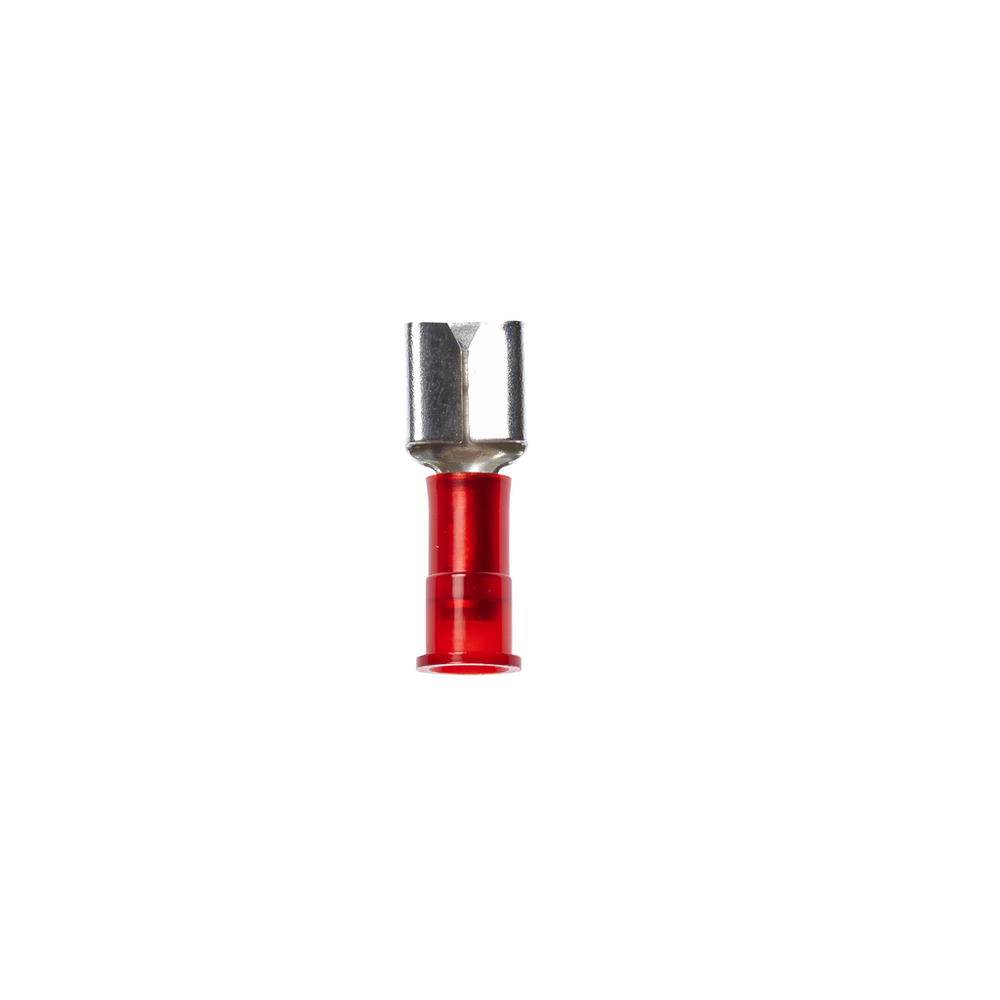

3M™ Scotchlok™ Female Disconnect, Nylon Insulated w/Insulation Grip MNG18-250DFK, 22-18 AWG, MNG18-250DFK, 1000/Case - 7100164183

Sold As: 1000-Pack
SKU: 7100164183
MPN: 7100164183
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023692
3M ID: 80610064703
5 Digit UPC: 2369
$543.94 ($0.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)18 AWG
Packaging1000 per bulk box
Mates with Female Width0.25 Inch
Connection Width (Imperial) UOMin
Connection Width (Metric)6.35
Units per Case1000.0
Maximum Conductor Size (Metric)1 mm²
Mates with Male Tab Width (W')0.25 Inch
Tab Width0.250
UL File NumberE70512
Maximum Insulation Outer Diameter (Imperial)0.145
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial) UOMin
Disconnect TypeFemale
Connection Width (Metric) UOMmm
Terminal TypeDisconnect
Barrel StyleButted
Minimum Conductor Size (Metric).34 mm²
Connection Width (Imperial)0.25
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial)0.86
Pad Width0.25
Barrel Inside Diameter0.08 Inch
Fastener OrientationFemale
Insulation MaterialNylon with Insulation Grip
Terminal StyleStandard
