3M Products & Supplies

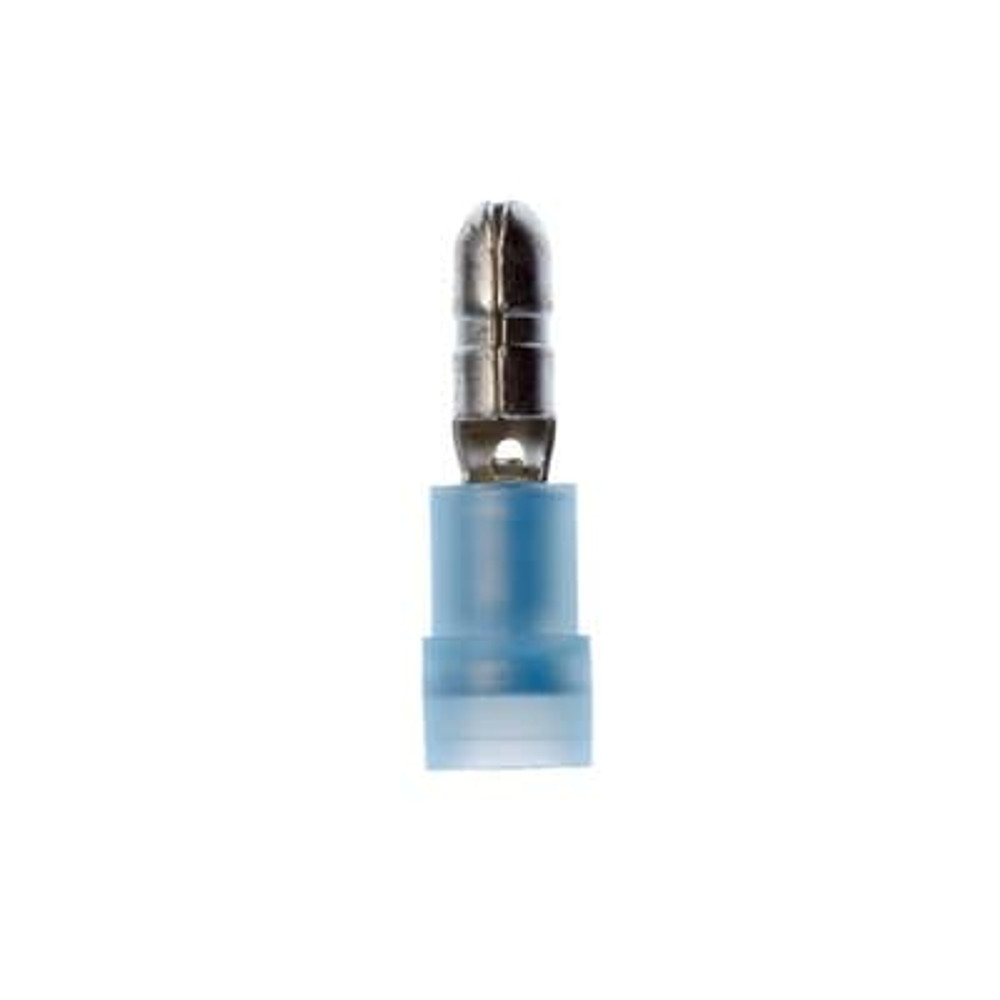

3M™ Scotchlok™ Male Disconnect, Nylon Insulated w/Insulation Grip MNG18-250DMK, 22-18 AWG, 1000/Case - 7100164186

Sold As: 1000-Pack
SKU: 7100164186
MPN: 7100164186
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023784
3M ID: 80610064794
5 Digit UPC: 2378
$579.79 ($0.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Wider tongue design for use on free-standing studs
  • Beveled mouth offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Disconnect TypeMale
Minimum Conductor Size (Imperial)22 AWG
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial)0.92
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial)0.25
Connection Width (Imperial) UOMin
Units per Case1000.0
Overall Length (Imperial) UOMin
Tab Width0.187
Connection Width (Metric) UOMmm
Connection Width (Metric)6.35
Minimum Conductor Size (Metric).34 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Inside Diameter0.065 Inch
Insulation MaterialNylon
Fastener OrientationMale
Male Tab Width (W')0.25 Inch
Terminal StyleStandard
Pad Width0.25
Packaging1000 per bulk box
Maximum Conductor Size (Metric)1 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
Barrel StyleInsulation Grip
Terminal TypeDisconnect
UL File NumberE70512
Barrel Length (Imperial)0.25 Inch
