3M Products & Supplies

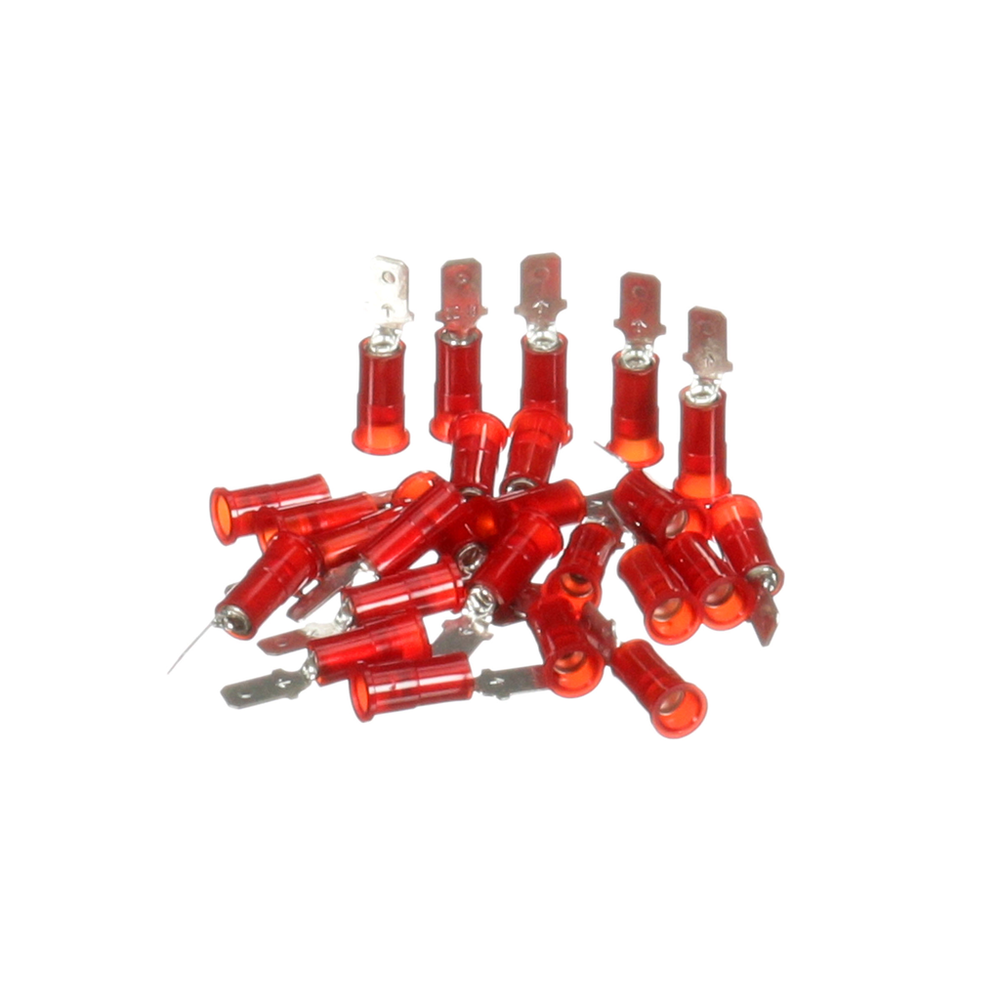

3M™ Scotchlok™ Male Disconnect, Nylon Insulated w/Insulation Grip MNG18-187DMK, 22-18 AWG, 1000/Case - 7100164185

Sold As: 1000-Pack
SKU: 7100164185
MPN: 7100164185
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023777
3M ID: 80610064786
5 Digit UPC: 2377
$579.79 ($0.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Fork Terminal has a wider tongue for use on free-standing studs. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Wider tongue design for use on free-standing studs
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal TypeDisconnect
Maximum Conductor Size (Metric)1 mm²
Minimum Conductor Size (Imperial)22 AWG
Pad Width0.187
Overall Length (Imperial) UOMin
Insulation MaterialNylon
Maximum Insulation Outer Diameter (Imperial) UOMin
UL File NumberE70512
Bullet Diameter0.156
Barrel StyleInsulation Grip
Connection Width (Metric) UOMmm
Fastener OrientationMale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Packaging1000 per bulk box
Male Tab Width (W')0.187 Inch
Maximum Conductor Size (Imperial)18 AWG
Disconnect TypeMale
Connection Width (Imperial)0.187
Barrel Length (Imperial)0.24 Inch
Overall Length (Imperial)0.84
Minimum Conductor Size (Metric).34 mm²
Barrel Inside Diameter0.08 Inch
Connection Width (Metric)4.75
Terminal StyleStandard
Connection Width (Imperial) UOMin
Units per Case1000.0
Maximum Insulation Outer Diameter (Imperial)0.145
