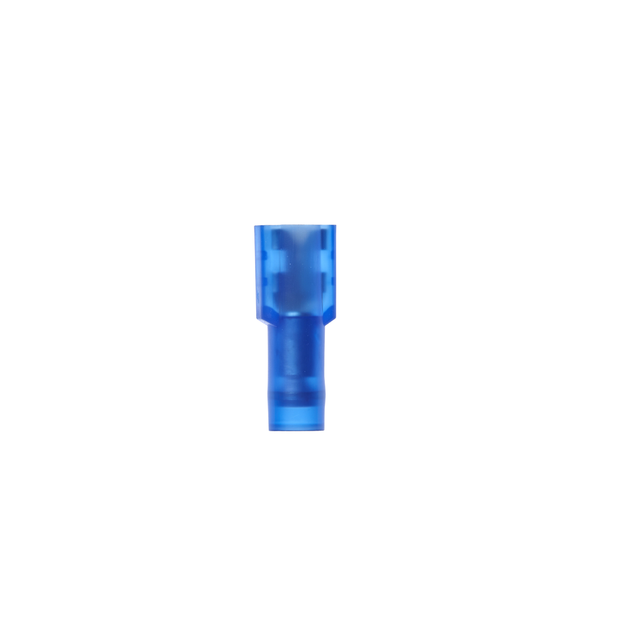

3M™ Scotchlok™ Female Disconnect, Nylon Insulated w/Insulation Grip MNG14-187DFK, 16-14 AWG, MNG14-187DFK, 1000/Case - 7000132255

Sold As: 1000-Pack
SKU: 7000132255
MPN: 7000132255
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017738
3M ID: 80610046767
5 Digit UPC: 1773
$543.94 ($0.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Mates with Male Tab Width (W')0.187 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Diameter (D)0.23 Inch
Product ColorBlue
Packaging1000 per bulk box
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
Units per Case1000.0
Tab Width0.187
Conductor Sizes (Imperial)16 - 14 AWG
Overall Length (Imperial) UOMin
Barrel Inside Diameter0.085 Inch
Maximum Conductor Size (Metric)2.5 mm²
Terminal TypeDisconnect
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Barrel StyleButted
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Connection TypeWire
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Fastener OrientationFemale
Insulation ColorBlue
Mates with Female Width0.187 Inch
Maximum Insulation Outer Diameter (Metric)3.7
Flame RetardantNo
Grease Filling Against CorrosionNo
Interrupt Free ShiftingNo
Insulation MaterialNylon with Insulation Grip
Overall Length (Imperial)0.77
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Disconnect TypeFemale
Connector StyleInsulation Displacement
Maximum Insulation Outside Diameter0.145 in
UL File NumberE70512
Connection Width (Imperial)0.187
Pad Width0.187
Terminal StyleStandard
Connection Width (Metric)4.75
Overall Diameter (Imperial)0.23
Minimum Conductor Size (Metric)1.5 mm²
Connector / Connector ToolConnector
Maximum Insulation Outer Diameter (Imperial)0.145
