3M Products & Supplies

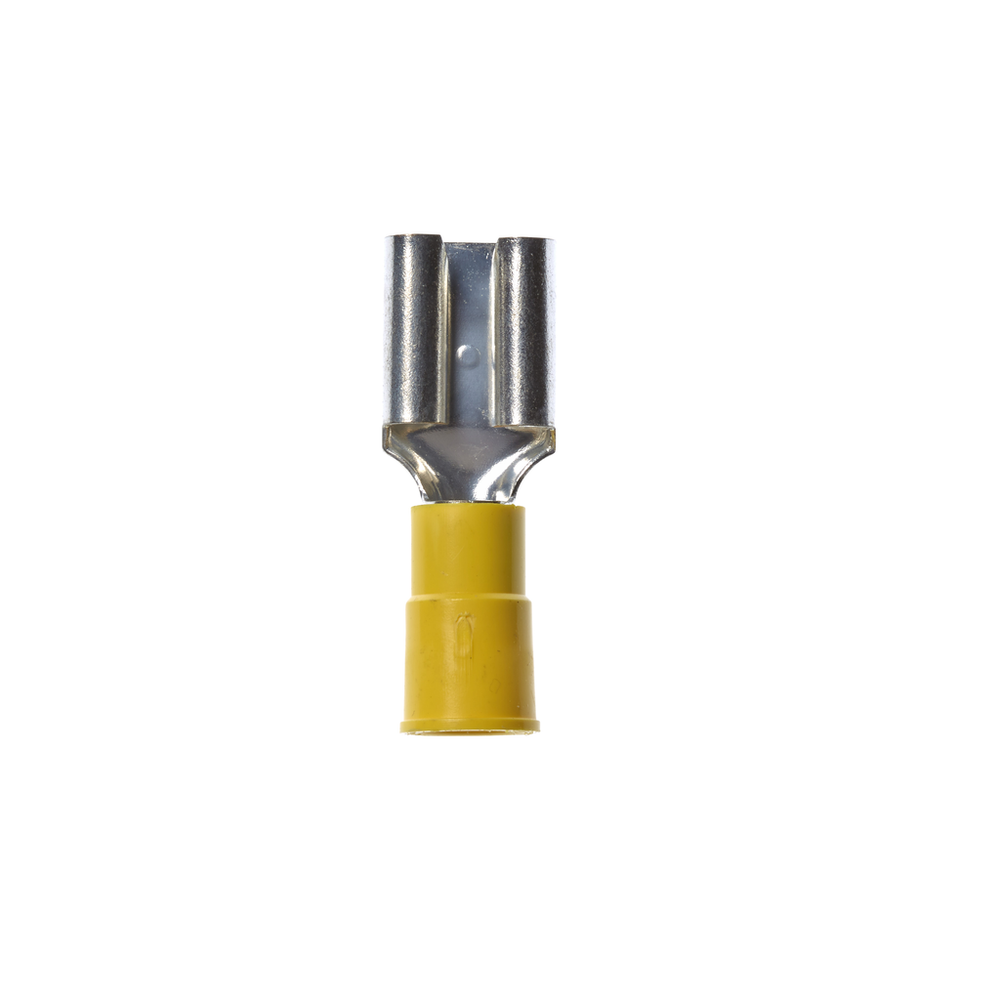

3M™ Scotchlok™ Female Disconnect, Vinyl Insulated Butted Seam MVU10-375DFK, 12-10 AWG, 500/Case - 7100024644

Sold As: 500-Pack
SKU: 7100024644
MPN: 7100024644
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020554
3M ID: 80610050447
5 Digit UPC: 2055
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force

Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeDisconnect
Terminal StyleStandard
Connection Width (Imperial)0.375
Overall Length (Imperial)1.23
Insulation MaterialVinyl
Minimum Conductor Size (Metric)4 mm²
Packaging500 per bulk box
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Barrel Inside Diameter0.175 Inch
Solution forWireless Network: Infrastructure Accessories
Mates with Male Tab Width (W')0.375 Inch
Mates with Female Width0.375 Inch
Connection Width (Metric) UOMmm
Disconnect TypeFemale
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleButted
Connection Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.25
Units per Case500.0
Pad Width0.375
Maximum Conductor Size (Metric)6 mm²
Fastener OrientationFemale
Connection Width (Metric)9.525
Overall Length (Imperial) UOMin
Bullet Diameter0.180
