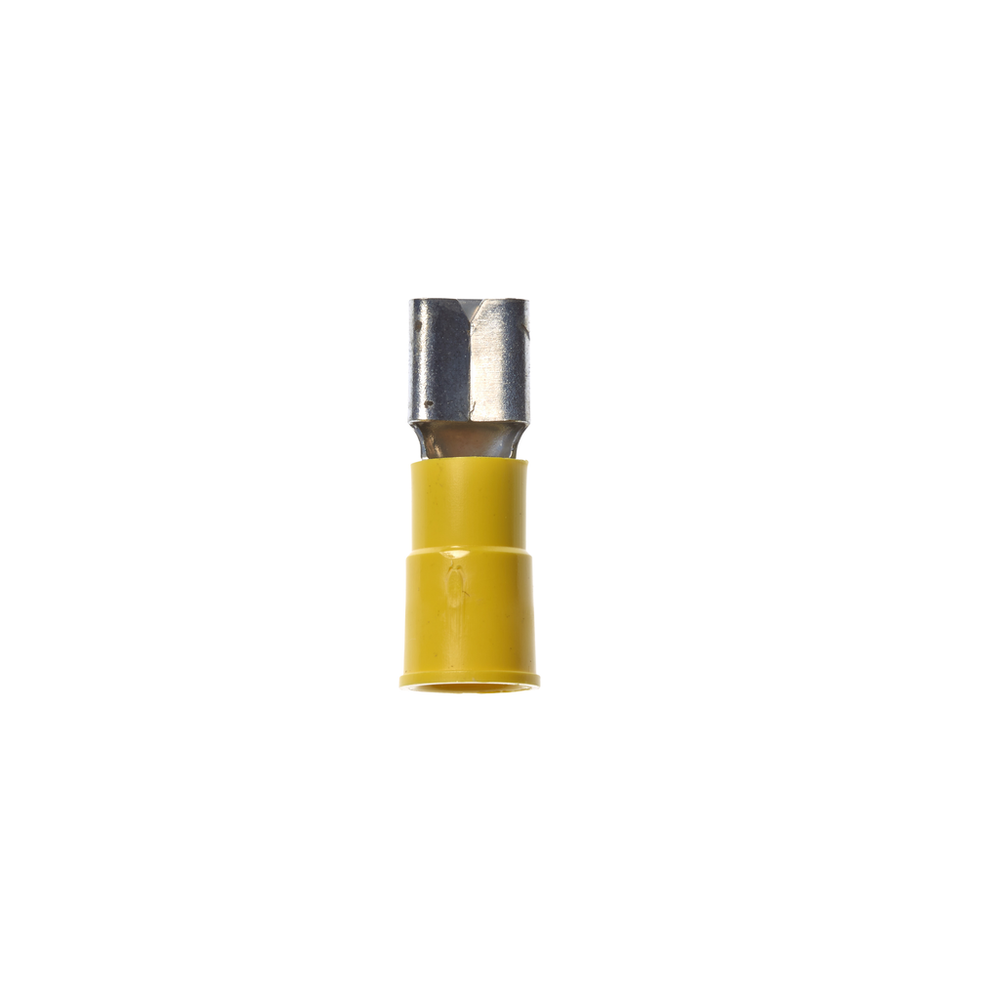

3M™ Scotchlok™ Female Disconnect, Vinyl Insulated Butted Seam w/Interlocking Barrel MVI10-250DFK, 12-10 AWG, 500/Case - 7000132452

Sold As: 500-Pack
SKU: 7000132452
MPN: 7000132452
For an accurate lead time please contact us
UPC: 00054007695783
3M ID: 80610531362
5 Digit UPC: 69578
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

The disconnects are attached to mating part by tongue of female part slipping over male tab. The use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Features

  • Mates with 0.25-in wide male tab
  • Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Disconnect TypeFemale
Mates with Female Width0.25 Inch
Maximum Recommended Voltage Rating UOMV
Maximum Conductor Size (Imperial)10 AWG
Fastener OrientationFemale
Connector StyleInsulation Displacement
Connection Width (Metric)6.35
Connection Width (Imperial) UOMin
Insulation ColorYellow
Flame RetardantNo
Overall Length (Imperial) UOMin
Conductor Sizes (Imperial)12 - 10 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Packaging500 per bulk box
Interrupt Free ShiftingNo
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.95
Connector / Connector ToolConnector
Maximum Insulation Outside Diameter0.145 in
Grease Filling Against CorrosionNo
Connection Width (Imperial)0.25
Overall Diameter (Imperial) UOMin
Barrel StyleInterlocking Barrel
Maximum Insulation Outer Diameter (Imperial) UOMin
Units per Case500.0
Maximum Insulation Outer Diameter (Metric)6.35
Minimum Conductor Size (Imperial)12 AWG
Solution forWireless Network: Infrastructure Accessories
Insulation MaterialVinyl
Terminal TypeDisconnect
Maximum Conductor Size (Metric)6 mm²
Overall Diameter (Imperial)0.23
UL File NumberE70512
Diameter (D)0.23 Inch
Maximum Operating Temperature (Celsius)105.0
Terminal StyleStandard
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)4 mm²
Maximum Recommended Voltage Rating600.0
Maximum Operating Temperature (Fahrenheit)221.0
Connection TypeWire
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Pad Width0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tab Width0.250
Mates with Male Tab Width (W')0.25 Inch
Barrel Inside Diameter0.128 Inch
