3M Products & Supplies

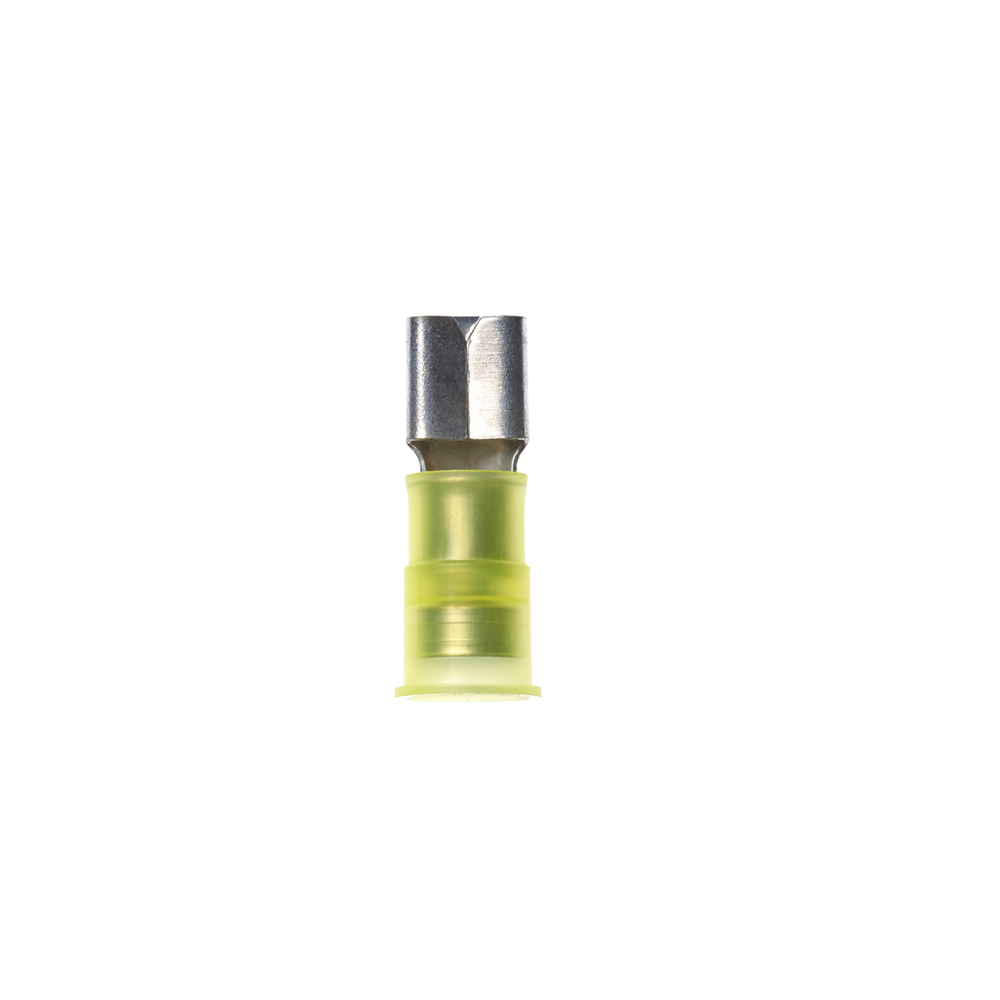

3M™ Scotchlok™ Female Disconnect, Nylon Insulated Grip Butted Seam Interlocking Barrel MNGI10-250DFK, 12-10 AWG, 500/Case - 7100164298

Sold As: 500-Pack
SKU: 7100164298
MPN: 7100164298
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007695684
3M ID: 80610531263
5 Digit UPC: 69568
$386.59 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • For use in ovens, motors, light fixtures and other applications
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial) UOMin
Insulation MaterialNylon with Insulation Grip
Overall Length (Imperial)0.94
UL File NumberE70512
Minimum Conductor Size (Metric)4 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Metric)6.35
Fastener OrientationFemale
Overall Length (Imperial) UOMin
Mates with Female Width0.25 Inch
Terminal TypeDisconnect
Mates with Male Tab Width (W')0.25 Inch
Connection Width (Metric) UOMmm
Barrel Inside Diameter0.128 Inch
Pad Width0.25
Disconnect TypeFemale
Connection Width (Imperial)0.25
Barrel StyleInterlocking Barrel
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)6 mm²
Maximum Insulation Outer Diameter (Imperial)0.25
Minimum Conductor Size (Imperial)12 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)10 AWG
Packaging500 per bulk box
Tab Width0.250
Units per Case500.0
Terminal StyleStandard
