3M Products & Supplies

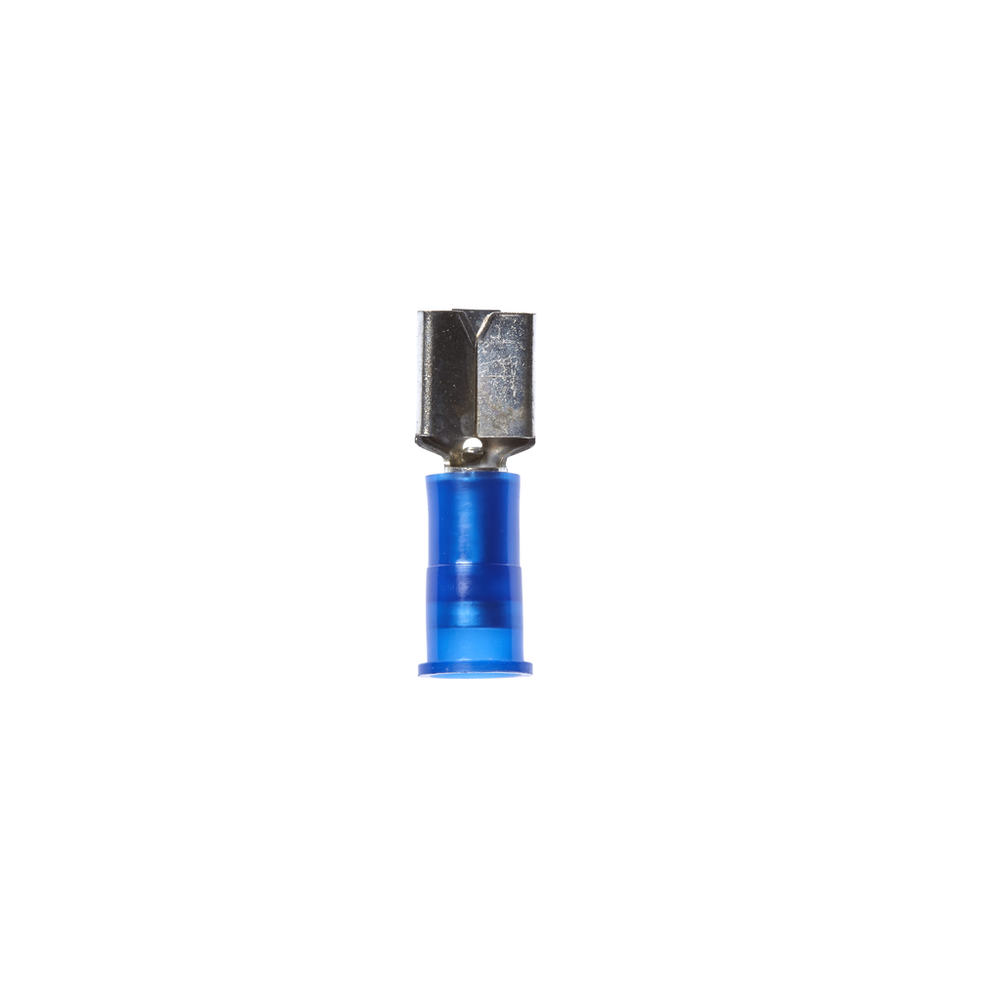

3M™ Scotchlok™ Female Disconnect, Nylon Insulated Grip Butted Seam Interlocking Barrel MNGI14-250DFK, 16-14 AWG, 1000/Case - 7100164299

Sold As: 1000-Pack
SKU: 7100164299
MPN: 7100164299
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007695707
3M ID: 80610531271
5 Digit UPC: 69570
$582.88 ($0.58 / Count)
Hurry up! Current stock:

Product Description

3M™ High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • For use in ovens, motors, light fixtures and other applications
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Beveled mouth offers easy insertion of wires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Units per Case1000.0
Barrel StyleInterlocking Barrel
Maximum Conductor Size (Metric)2.5 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
Mates with Male Tab Width (W')0.25 Inch
Mates with Female Width0.25 Inch
Terminal StyleStandard
Connection Width (Imperial)0.25
Connection Width (Metric)6.35
Disconnect TypeFemale
Barrel Inside Diameter0.076 Inch
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial) UOMin
UL File NumberE70512
Packaging1000 per bulk box
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.83
Tab Width0.250
Insulation MaterialNylon with Insulation Grip
Minimum Conductor Size (Metric)1.5 mm²
Pad Width0.25
Fastener OrientationFemale
Terminal TypeDisconnect
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outside Diameter0.145 in
Maximum Insulation Outer Diameter (Metric)3.68
