3M Products & Supplies

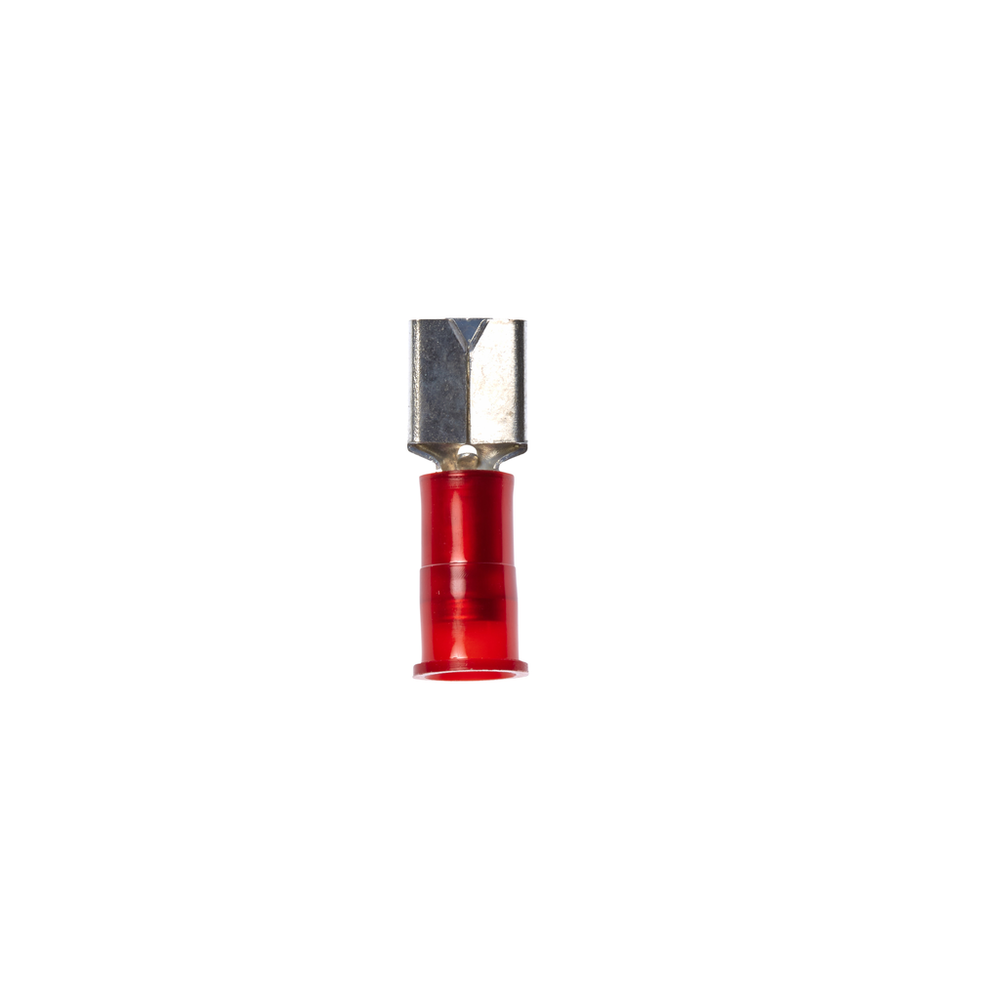

3M™ Scotchlok™ Female Disconnect, Nylon Insulated Grip Butted Seam Interlocking Barrel MNGI18-250DFK, 22-18 AWG, 1000/Case - 7100164300

Sold As: 1000-Pack
SKU: 7100164300
MPN: 7100164300
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007695721
3M ID: 80610531305
5 Digit UPC: 69572
$582.88 ($0.58 / Count)
Hurry up! Current stock:

Product Description

3M™ High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • For use in ovens, motors, light fixtures and other applications
  • Beveled mouth offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging1000 per bulk box
Insulation MaterialNylon with Insulation Grip
Fastener OrientationFemale
Tab Width0.250
Mates with Female Width0.25 Inch
Connection Width (Imperial)0.25
Overall Length (Imperial)0.83
Maximum Conductor Size (Imperial)18 AWG
Barrel Inside Diameter0.076 Inch
Barrel Length (Imperial)0.25 Inch
Units per Case1000.0
Maximum Conductor Size (Metric)1 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
Connection Width (Metric)6.35
Maximum Insulation Outer Diameter (Imperial) UOMin
Terminal StyleStandard
Minimum Conductor Size (Imperial)22 AWG
UL File NumberE70512
Barrel StyleInsulation Grip with Interlocking Barrel
Disconnect TypeFemale
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric).34 mm²
Connection Width (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Pad Width0.25
Terminal TypeDisconnect
Mates with Male Tab Width (W')0.25 Inch
