3M Products & Supplies

3M™ Scotchlok™ Fork, High Temperature Butted Seam MU18-10FHTK, 22-18 AWG, 1000/Case - 7100163971

Sold As: 1000-Pack
SKU: 7100163971
MPN: 7100163971
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013334
3M ID: 80610039705
5 Digit UPC: 1333
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

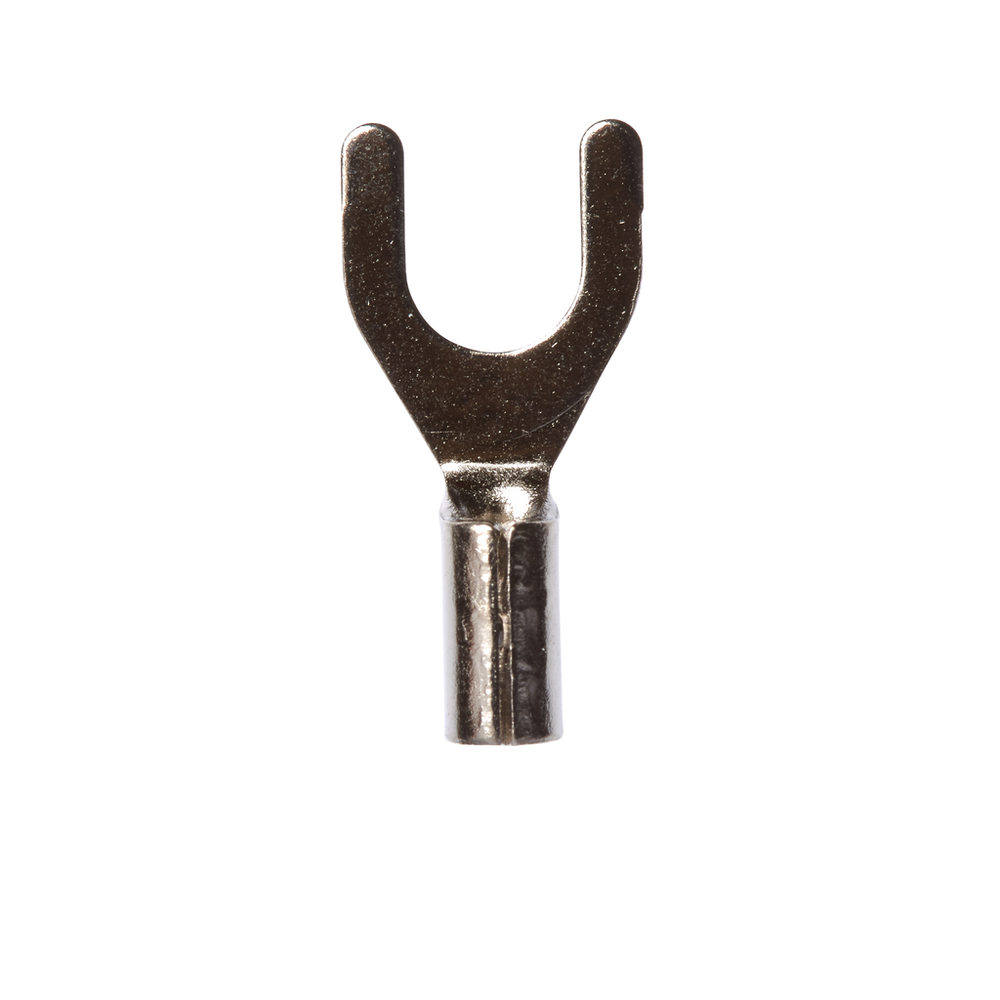

3M™ High-Temperature Standard Fork Terminal has a wider tongue for use on free-standing studs. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Beveled mouth offers easy insertion of wires
  • Wider tongue design for use on free-standing studs
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Dimension E0.54 Inch
Terminal StyleHigh Temp
Overall Length (Imperial) UOMin
Terminal TypeFork
Maximum Conductor Size (Imperial)18 AWG
MaterialCopper
Overall Length (Imperial)0.7
Fork TypeHigh Temp
Minimum Conductor Size (Imperial)22 AWG
Barrel Inside Diameter0.07 Inch
Overall Width (Imperial) UOMin
Barrel StyleButted
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)0.326 mm²
Packaging1000 per bulk box
Maximum Conductor Size (Metric).0823 mm²
Stud Size#10
Insulation MaterialNon-insulated
Clearance (C)0.29 Inch
Units per Case1000.0
Overall Width (Imperial)0.34
