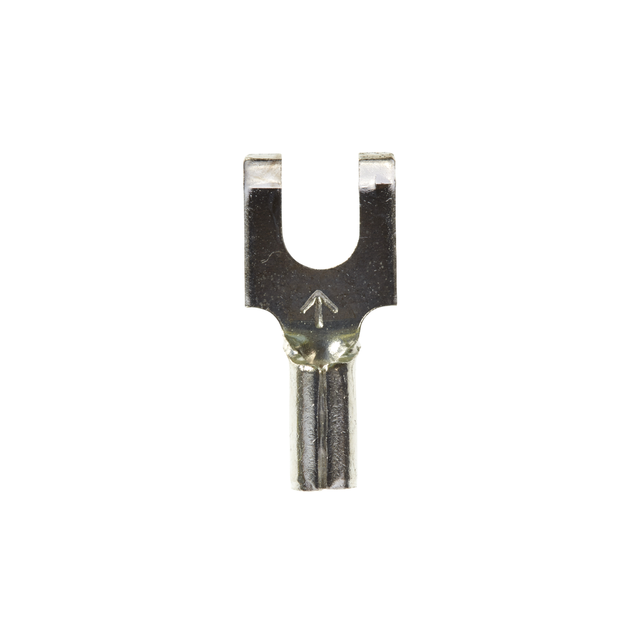

3M™ Scotchlok™ Fork, Non-Insulated Butted Seam MU18-6FK, 22-18 AWG, 1000/Case - 7100163937

Sold As: 1000-Pack
SKU: 7100163937
MPN: 7100163937
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007011446
3M ID: 80610037071
5 Digit UPC: 1144
$167.05 ($0.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Inside Diameter0.07 Inch
Overall Length (Imperial)0.7
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Metric)0.326 mm²
Clearance (C)0.29 Inch
Stud Size#6
UL File NumberE23438
Terminal StyleStandard
Fork TypeStandard
Terminal TypeFork
Barrel StyleButted
Barrel Length (Imperial)0.25 Inch
Packaging1000 per bulk box
Dimension E0.54 Inch
Overall Width (Imperial)0.34
Units per Case1000.0
Maximum Conductor Size (Metric).0823 mm²
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Insulation MaterialNon-insulated
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
