3M Products & Supplies

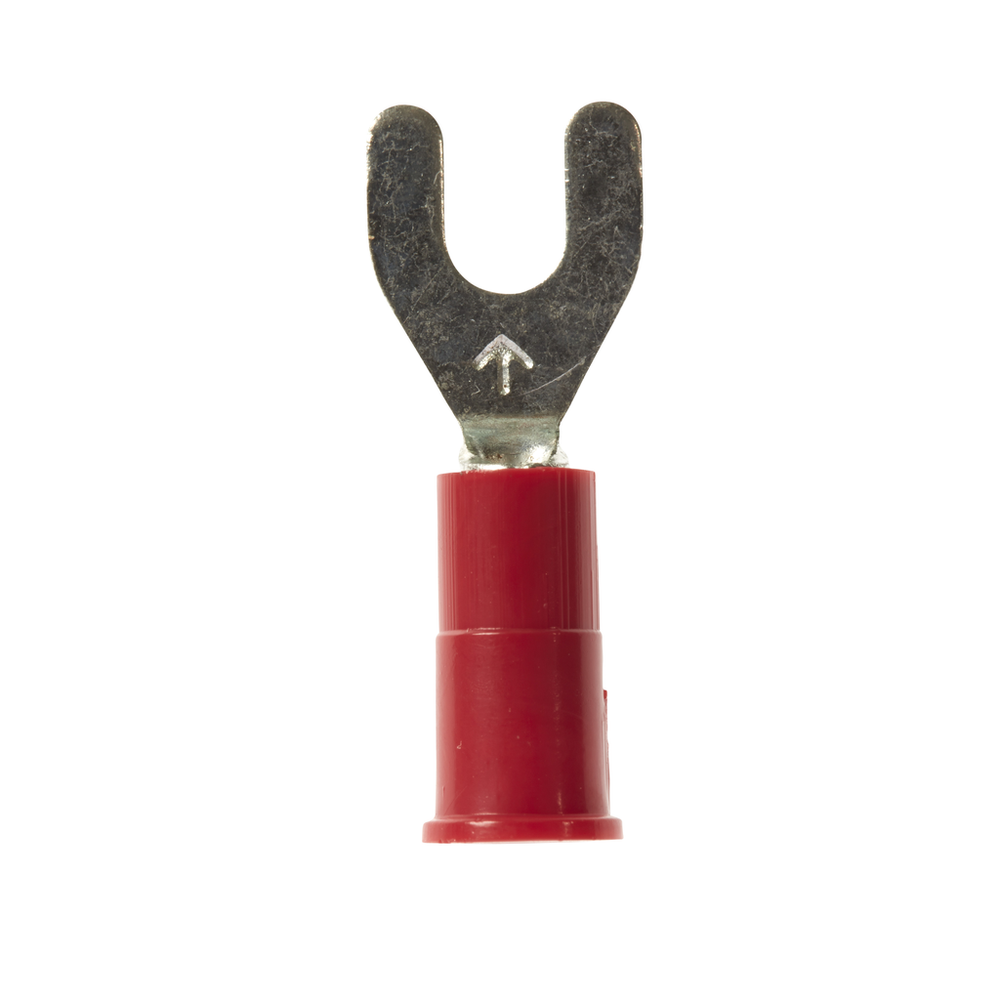

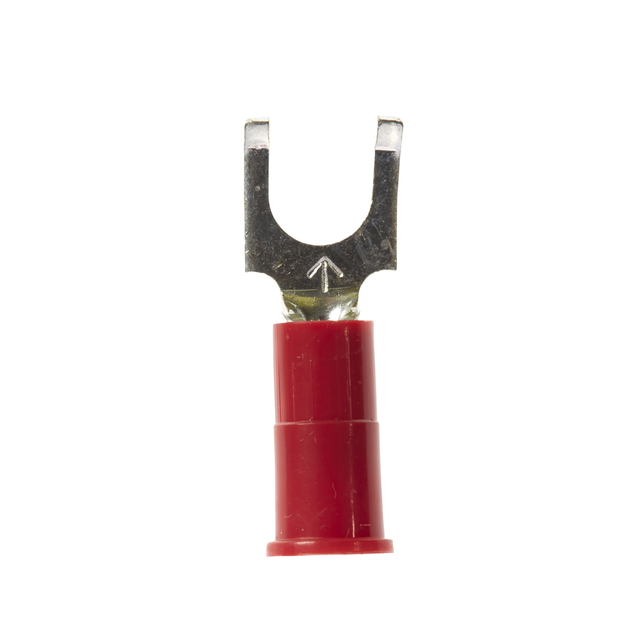

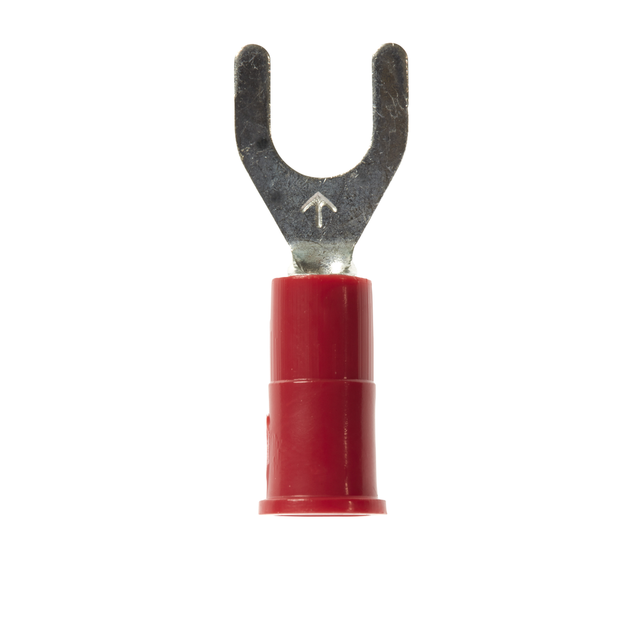

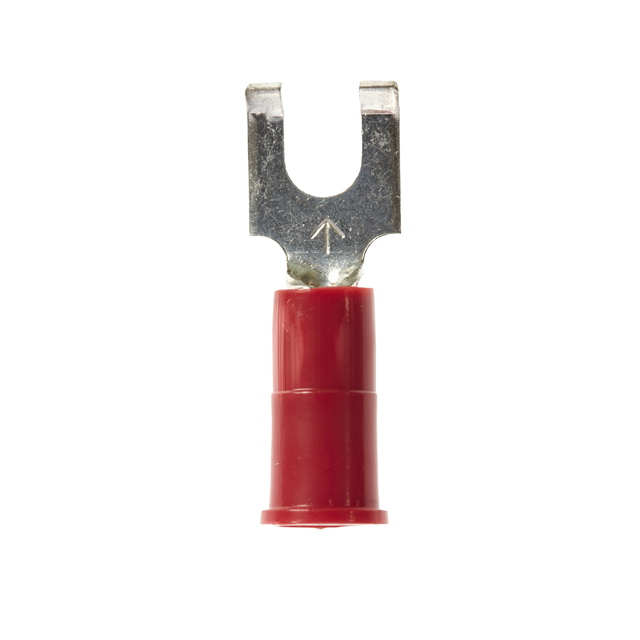

3M™ Scotchlok™ Fork, Vinyl Insulated Butted Seam MVU18-6FK, 22-18 AWG, 1000/Case - 7100163941

Sold As: 1000-Pack
SKU: 7100163941
MPN: 7100163941
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007011743
3M ID: 80610037386
5 Digit UPC: 1174
$340.91 ($0.34 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)0.326 mm²
Terminal TypeFork
Units per Case1000.0
Fork TypeBlock Fork
Dimension E0.74 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.9
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)18 AWG
UL File NumberE23438
Barrel Inside Diameter0.07 Inch
Overall Width (Imperial)0.34
Maximum Insulation Outer Diameter (Imperial)0.145
Minimum Conductor Size (Imperial)22 AWG
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel StyleButted
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Clearance (C)0.29 Inch
Stud Size#6
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Metric).0823 mm²
Insulation MaterialVinyl
Packaging1000 per bulk box
