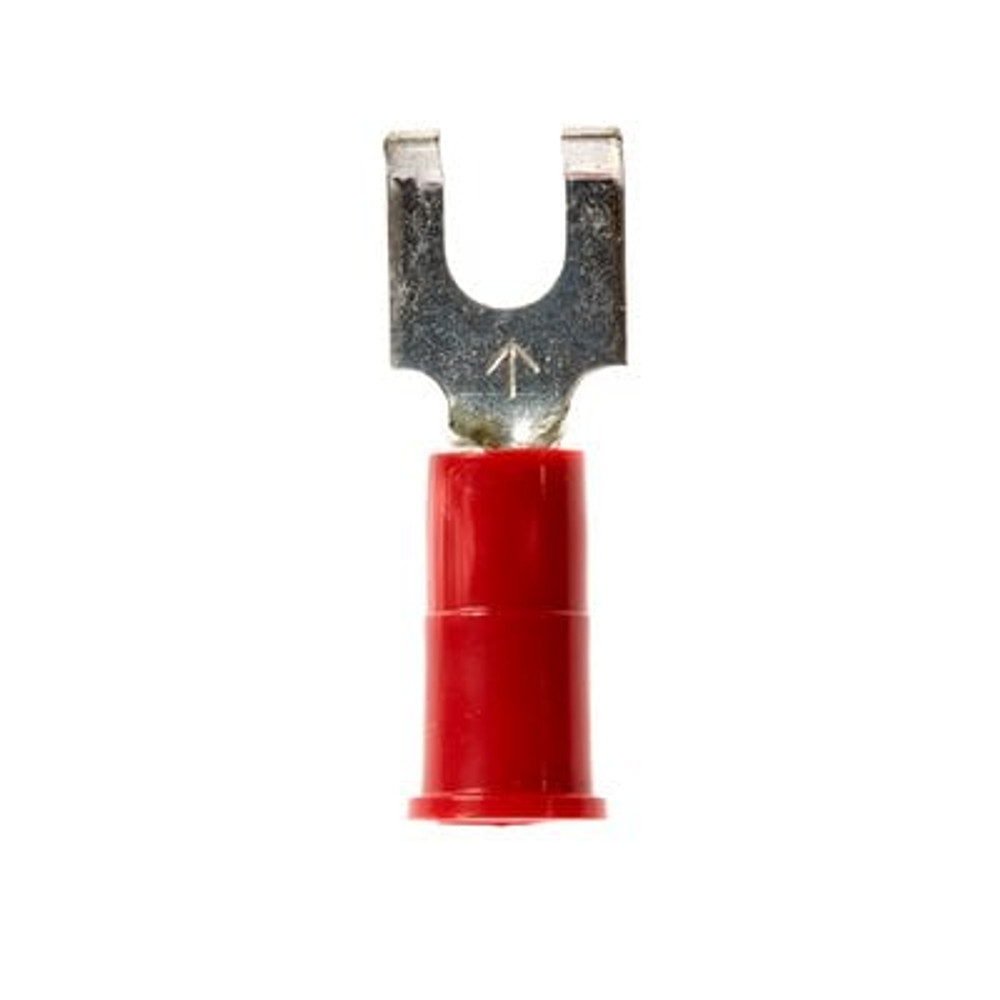

3M™ Scotchlok™ Flanged Block Fork, Vinyl Insulated Butted Seam MVU18-6FFBK, 22-18 AWG, 1000/Case - 7100163961

Sold As: 1000-Pack
SKU: 7100163961
MPN: 7100163961
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012672
3M ID: 80610038863
5 Digit UPC: 1267
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)22 AWG
Maximum Conductor Size (Imperial)18 AWG
Overall Width (Imperial)0.3
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric)3.5
Connection Width (Metric) UOMmm
Terminal StyleFlanged Block
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial)0.138
Overall Length (Imperial) UOMin
Terminal TypeFork
Overall Width (Imperial) UOMin
Overall Length (Imperial)0.85
Maximum Conductor Size (Metric).0823 mm²
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Imperial) UOMin
Insulation MaterialVinyl
Barrel StyleButted
