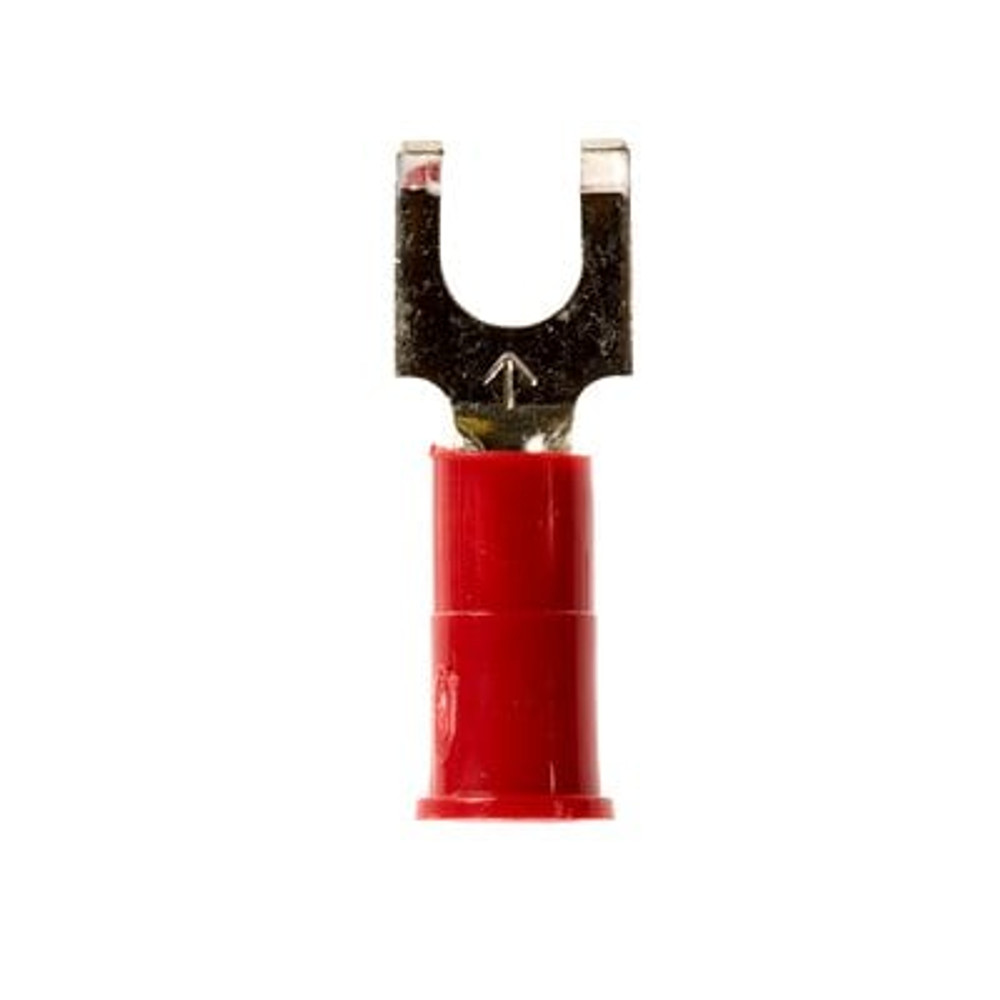

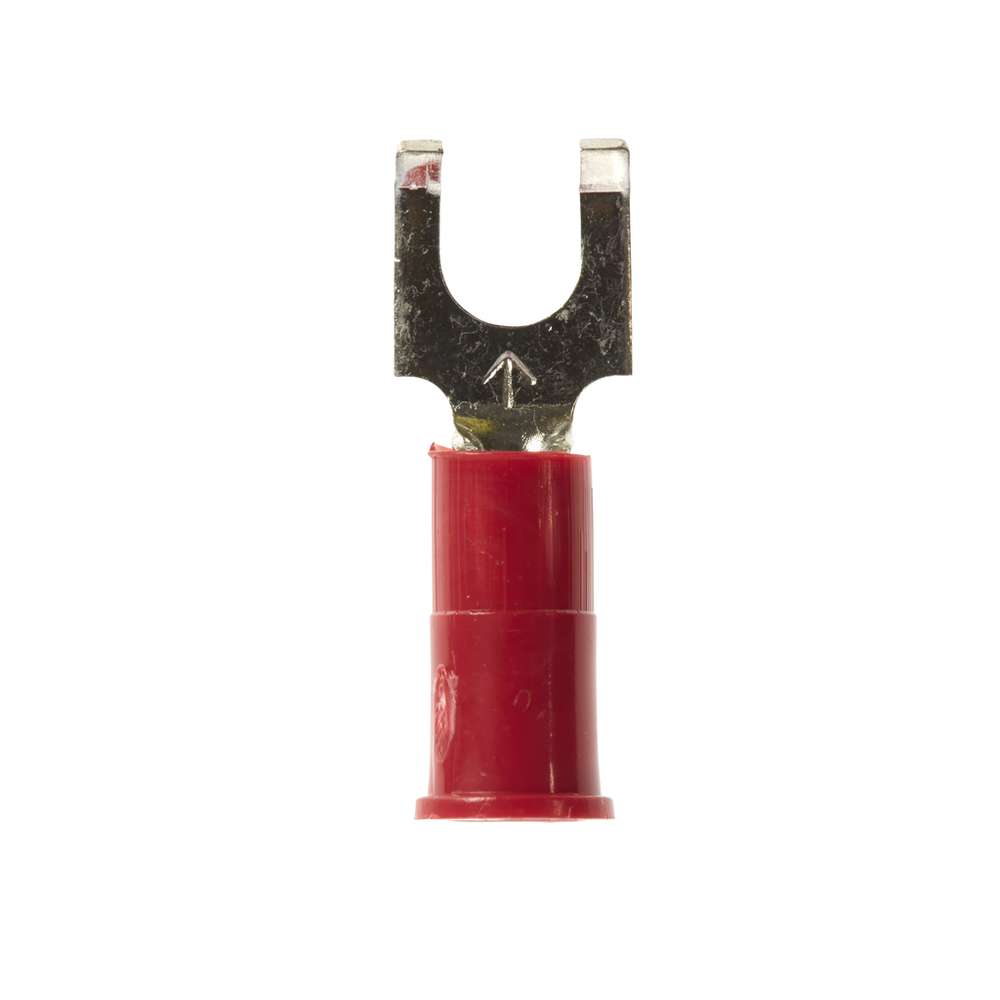

3M™ Scotchlok™ Flanged Block Fork, Vinyl Insulated Butted Seam MVU18-8FFBK, 22-18 AWG, 1000/Case - 7100163962

Sold As: 1000-Pack
SKU: 7100163962
MPN: 7100163962
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012689
3M ID: 80610038871
5 Digit UPC: 1268
$398.61 ($0.40 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Electrolytic copper construction offers good conductivity
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel StyleButted
Maximum Operating Temperature (Celsius)105.0
Insulation MaterialVinyl
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)0.326 mm²
Terminal TypeFork
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.85
Connection Width (Imperial)0.164
Terminal StyleFlanged Block
Connection Width (Metric)4.166
Maximum Conductor Size (Metric).0823 mm²
Maximum Conductor Size (Imperial)18 AWG
Overall Width (Imperial)0.3
Connection Width (Imperial) UOMin
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
