3M Products & Supplies

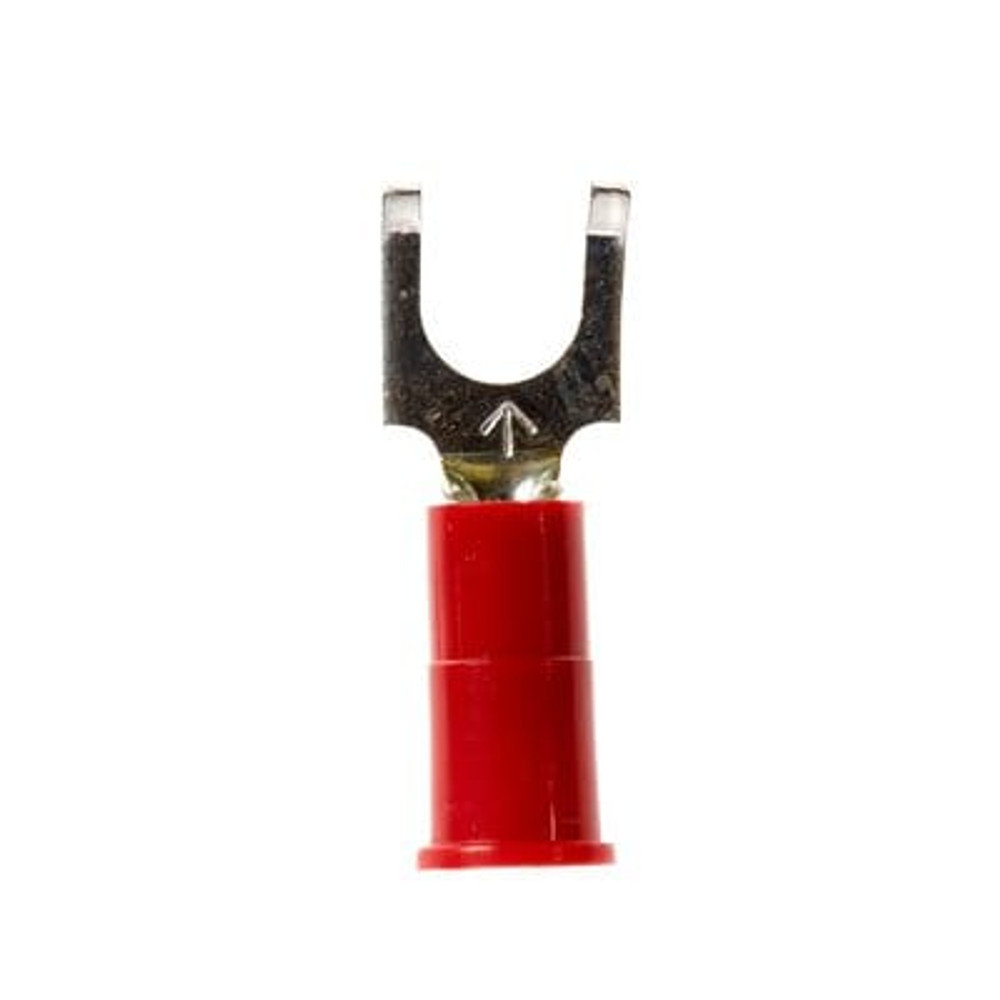

3M™ Scotchlok™ Flanged Block Fork, Vinyl Insulated Butted Seam MVU18-10FFBK, 22-18 AWG, 1000/Case - 7100163963

Sold As: 1000-Pack
SKU: 7100163963
MPN: 7100163963
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012696
3M ID: 80610038889
5 Digit UPC: 1269
$398.61 ($0.40 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Suitable for use in a terminal block
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)18 AWG
Maximum Conductor Size (Metric).0823 mm²
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial)0.85
Overall Width (Imperial) UOMin
Insulation MaterialVinyl
Barrel StyleButted
Connection Width (Metric)4.826
Terminal StyleFlanged Block
Minimum Conductor Size (Metric)0.326 mm²
Connection Width (Imperial)0.19
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Terminal TypeFork
Overall Width (Imperial)0.3
Connection Width (Metric) UOMmm
