3M Products & Supplies

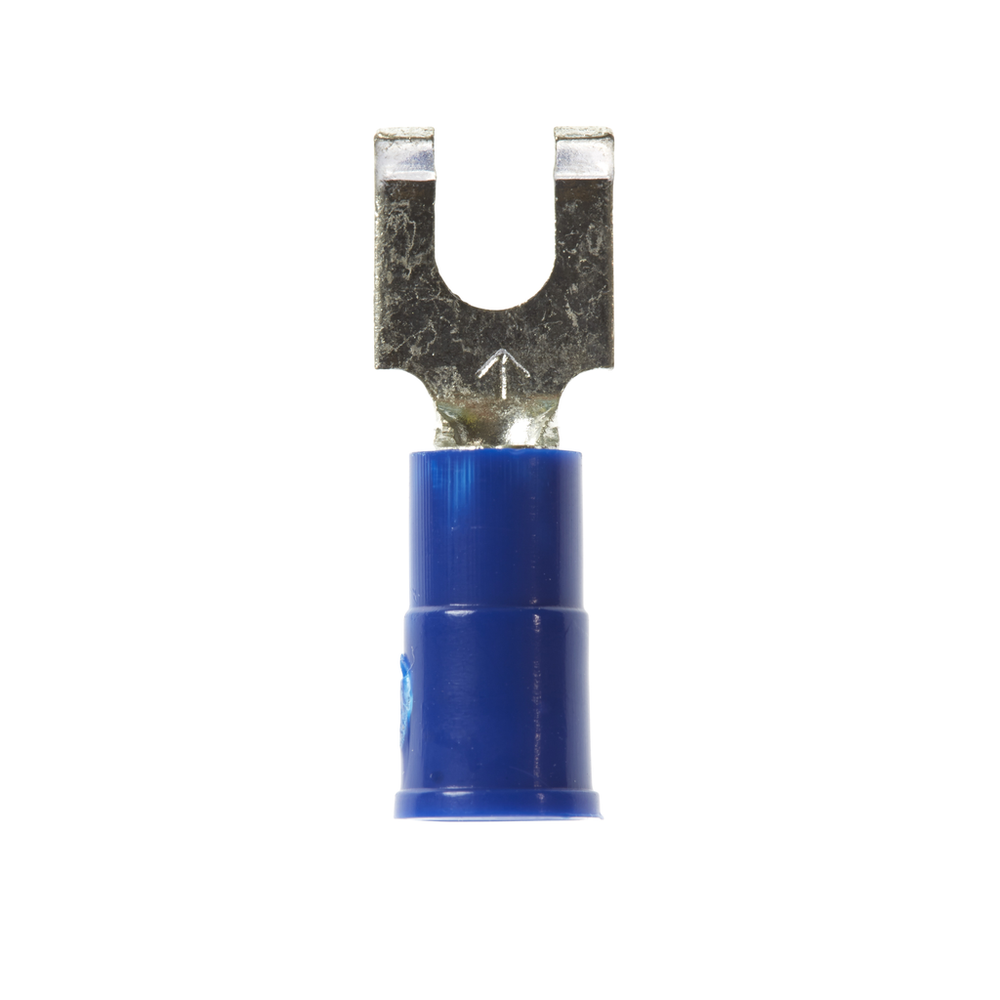

3M™ Scotchlok™ Block Flanged Fork, Vinyl Insulated Butted Seam MVU14-6FFBK, 16-14 AWG, 1000/Case - 7100164039

Sold As: 1000-Pack
SKU: 7100164039
MPN: 7100164039
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007016335
3M ID: 80610044390
5 Digit UPC: 1633
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Suitable for use in a terminal block
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.3
Minimum Conductor Size (Metric)1.31 mm²
Maximum Conductor Size (Metric)2.08 mm²
Connection Width (Imperial) UOMin
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial) UOMin
Terminal StyleFlanged Block
Connection Width (Imperial)0.138
Overall Width (Imperial) UOMin
Terminal TypeFork
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric)3.5
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Barrel StyleButted
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.85
