3M Products & Supplies

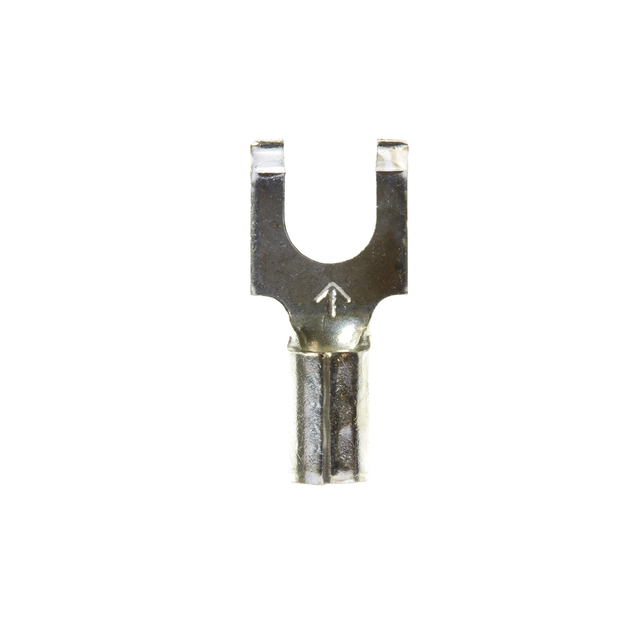

3M™ Scotchlok™ Block Flanged Fork, Vinyl Insulated Butted Seam MVU14-8FFBK, 16-14 AWG, 1000/Case - 7100164040

Sold As: 1000-Pack
SKU: 7100164040
MPN: 7100164040
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007016342
3M ID: 80610044408
5 Digit UPC: 1634
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Suitable for use in a terminal block
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Terminal TypeFork
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.3
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial)0.164
Insulation MaterialVinyl
Connection Width (Imperial) UOMin
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial)0.85
Barrel StyleButted
Terminal StyleFlanged Block
Connection Width (Metric)4.166
Connection Width (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.08 mm²
