3M Products & Supplies

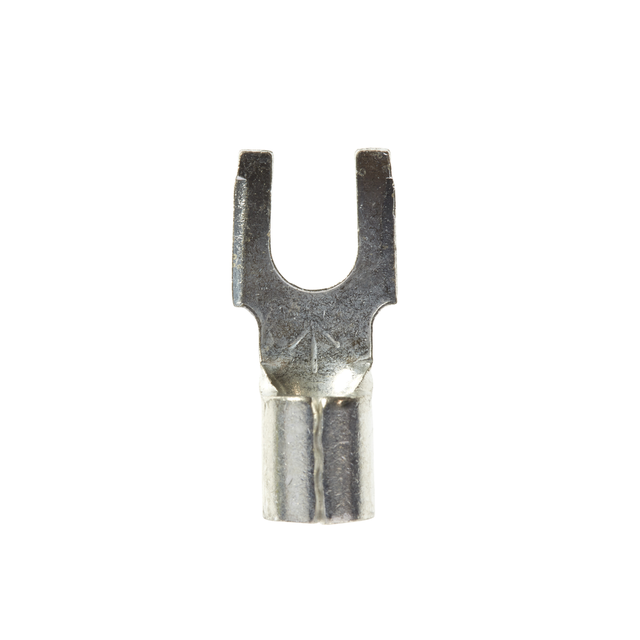

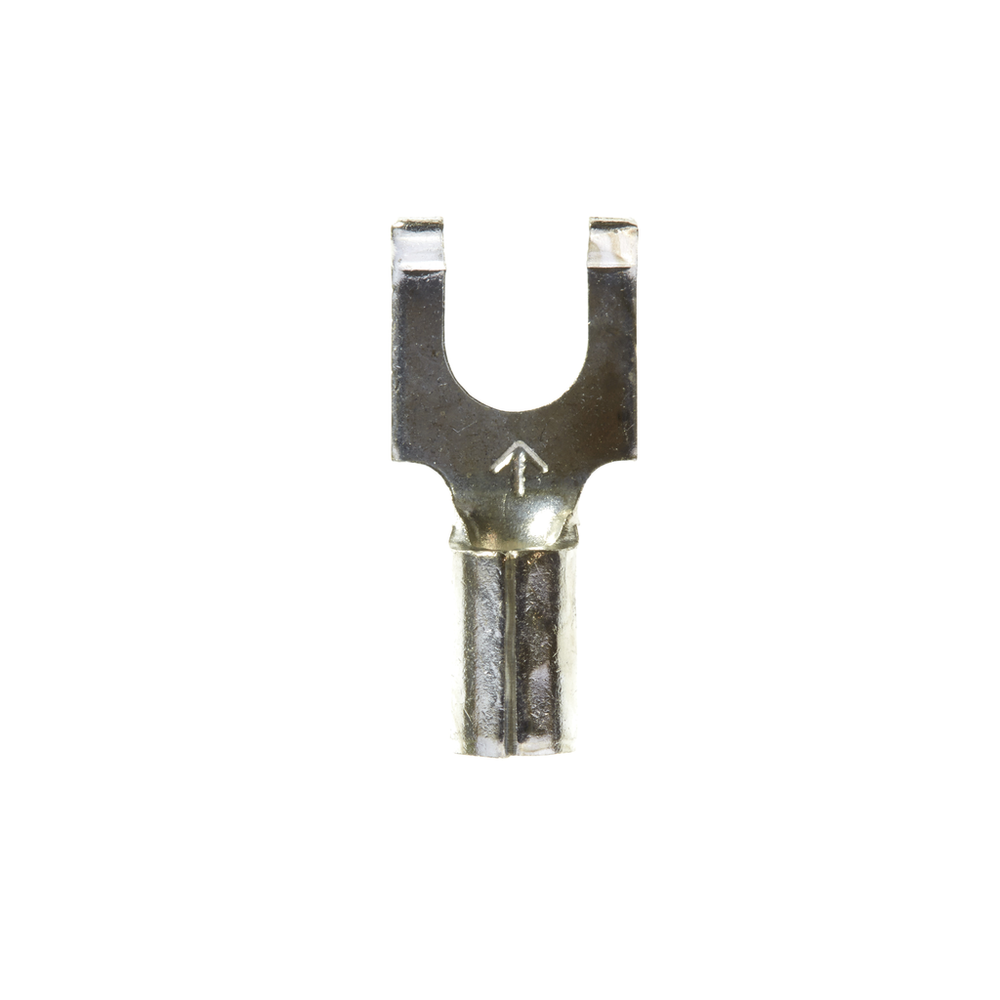

3M™ Scotchlok™ Block Flanged Fork, Non-Insulated Butted Seam MU14-8FFBK, 16-14 AWG, 1000/Case - 7100164035

Sold As: 1000-Pack
SKU: 7100164035
MPN: 7100164035
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007016144
3M ID: 80610044200
5 Digit UPC: 1614
$188.12 ($0.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Flanged Block Forks is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Accommodates wire sizes 16 to 14 AWG
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Suitable for use in a terminal block
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Packaging1000 per bulk box
Dimension E0.5 Inch
Minimum Conductor Size (Imperial)16 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Fork TypeBlock Flanged Fork
Stud Size#8
Insulation MaterialNon-insulated
Terminal TypeFork
UL File NumberE23438
Clearance (C)0.25 Inch
Overall Width (Imperial)0.3
Terminal StyleFlanged Block
Overall Length (Imperial)0.65
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric)2.08 mm²
Barrel Length (Imperial)0.25 Inch
Units per Case1000.0
Barrel StyleButted
Overall Length (Imperial) UOMin
Barrel Inside Diameter0.09 Inch
