3M Products & Supplies

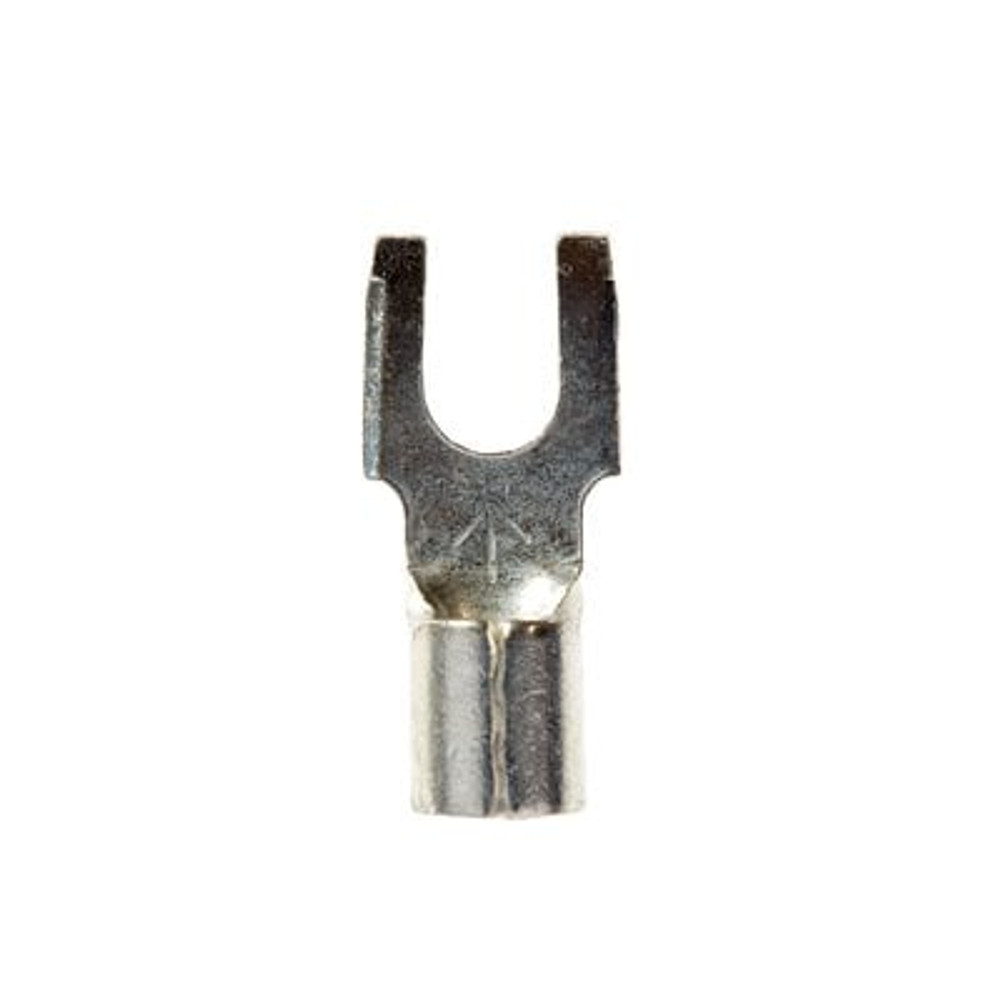

3M™ Scotchlok™ Block Flanged Fork, Non-Insulated Butted Seam MU10-8FFBK, 12-10 AWG, 500/Case - 7100164120

Sold As: 500-Pack
SKU: 7100164120
MPN: 7100164120
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020240
3M ID: 80610050132
5 Digit UPC: 2024
$133.00 ($0.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Flanged Block Forks is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Suitable for use in a terminal block
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Accommodates wire sizes 16 to 14 AWG
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal StyleFlanged Block
Barrel StyleButted
Units per Case500.0
Overall Length (Imperial) UOMin
UL File NumberE23438
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)0.32
Packaging500 per bulk box
Minimum Conductor Size (Metric)3.31 mm²
Terminal TypeFork
Insulation MaterialNon-insulated
Maximum Conductor Size (Imperial)10 AWG
Fork TypeFlanged Block
Barrel Inside Diameter0.135 Inch
Overall Length (Imperial)0.73
Dimension E0.54 Inch
Maximum Conductor Size (Metric)5.26 mm²
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Stud Size#8
Minimum Conductor Size (Imperial)12 AWG
Clearance (C)0.29 Inch
