3M Products & Supplies

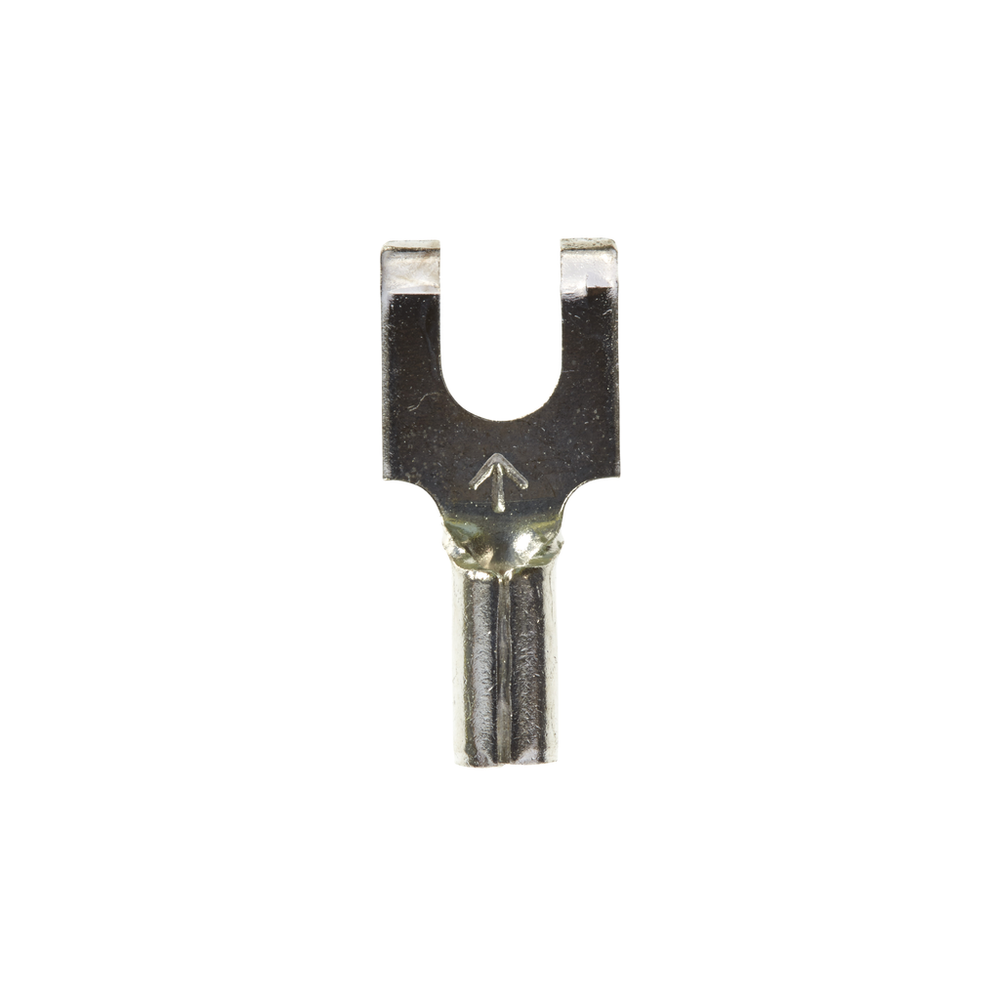

3M™ Scotchlok™ Flanged Block Fork, Non-Insulated Butted Seam MU18-6FFBK, 22-18 AWG, 1000/Case - 7100163958

Sold As: 1000-Pack
SKU: 7100163958
MPN: 7100163958
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012474
3M ID: 80610038665
5 Digit UPC: 1247
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Flanged Block Forks is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Suitable for use in a terminal block
  • Accommodates wire sizes 16 to 14 AWG
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Clearance (C)0.25 Inch
Packaging1000 per bulk box
Minimum Conductor Size (Imperial)22 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleFlanged Block
Minimum Conductor Size (Metric)0.326 mm²
Fork TypeFlanged Block
Dimension E0.5 Inch
Overall Width (Imperial)0.3
Overall Width (Imperial) UOMin
UL File NumberE23438
Overall Length (Imperial)0.65
Maximum Conductor Size (Metric).0823 mm²
Terminal TypeFork
Maximum Conductor Size (Imperial)18 AWG
Barrel Inside Diameter0.07 Inch
Units per Case1000.0
Stud Size#6
Insulation MaterialNon-insulated
Barrel Length (Imperial)0.25 Inch
Barrel StyleButted
