3M Products & Supplies

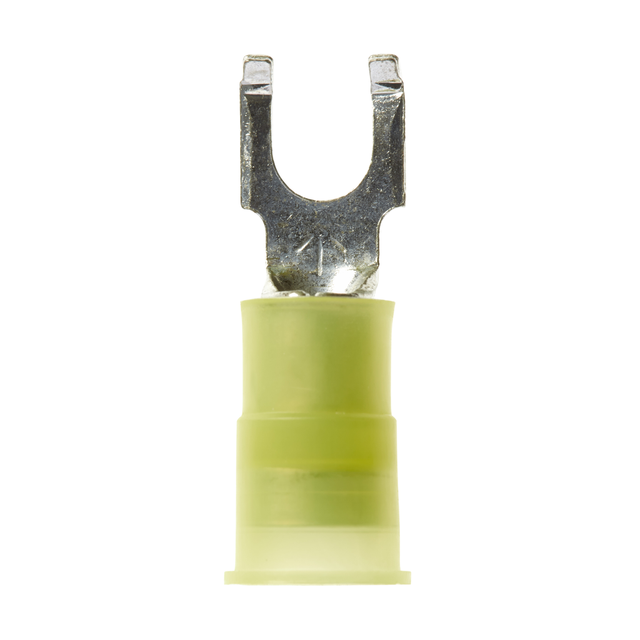

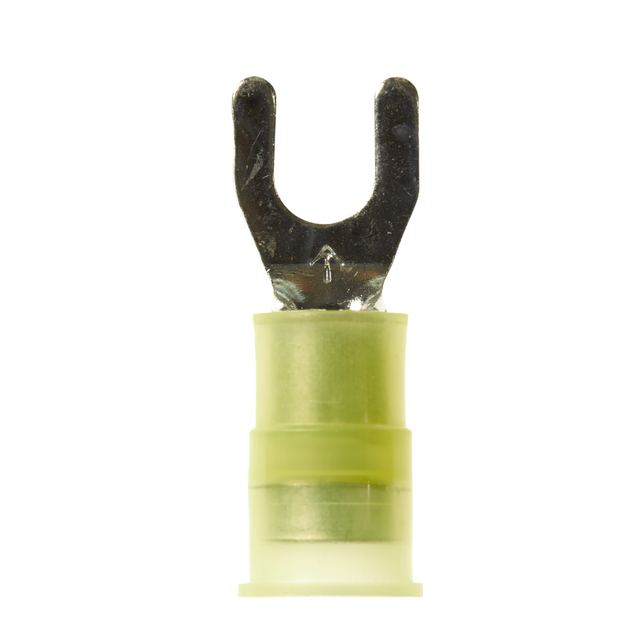

3M™ Scotchlok™ Fork, Nylon Insulated w/Insulation Grip MNG10-8FK, 12-10 AWG, 500/Case - 7100164103

Sold As: 500-Pack
SKU: 7100164103
MPN: 7100164103
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019824
3M ID: 80610049662
5 Digit UPC: 1982
$370.85 ($0.74 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Fork Terminal has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Wider tongue design for use on free-standing studs
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Imperial)0.25
Maximum Conductor Size (Imperial)10 AWG
Insulation MaterialNylon with Insulation Grip
Stud Size#8
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Width (Imperial) UOMin
UL File NumberE23438
Minimum Conductor Size (Metric)3.31 mm²
Dimension E0.84 Inch
Maximum Operating Temperature (Celsius)105.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UOMDegree
Packaging500 per bulk box
Barrel Length (Imperial)0.25 Inch
Barrel StyleButted
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)1.03
Barrel Inside Diameter0.135 Inch
Clearance (C)0.29 Inch
Fork TypeStandard
Overall Width (Imperial)0.38
Overall Length (Imperial) UOMin
Terminal StyleStandard
Maximum Conductor Size (Metric)5.26 mm²
Terminal TypeFork
Units per Case500.0
