3M Products & Supplies

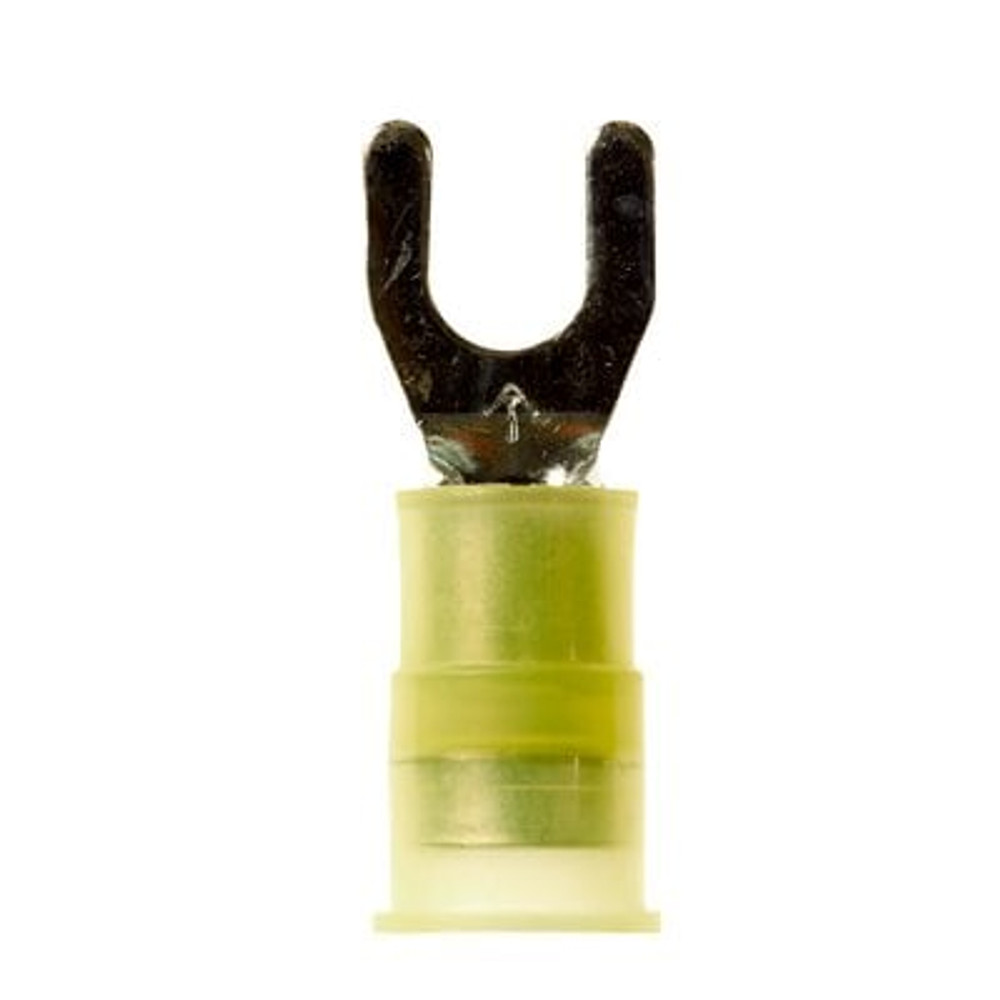

3M™ Scotchlok™ Fork, Nylon Insulated w/Insulation Grip MNG10-10FK, 12-10 AWG, 1/Case - 7100043404

Sold As: 500-Pack
SKU: 7100043404
MPN: 7100043404
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019831
3M ID: 80610049670
5 Digit UPC: 1983
$377.21 ($0.75 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Fork Terminal has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Wider tongue design for use on free-standing studs
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Electrolytic copper construction offers good conductivity
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Size#10
Packaging500 per bulk box
Barrel Inside Diameter0.135 Inch
Insulation MaterialNylon with Insulation Grip
Dimension E0.84 Inch
Overall Length (Imperial)1.03
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Insulation Outer Diameter (Imperial)0.25
Overall Length (Imperial) UOMin
Barrel StyleButted
UL File NumberE23438
Overall Width (Imperial)0.38
Terminal StyleStandard
Minimum Conductor Size (Imperial)12 AWG
Minimum Conductor Size (Metric)3.31 mm²
Barrel Length (Imperial)0.25 Inch
Fork TypeStandard
Units per Case500.0
Clearance (C)0.29 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)5.26 mm²
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeFork
Overall Width (Imperial) UOMin
