3M Products & Supplies

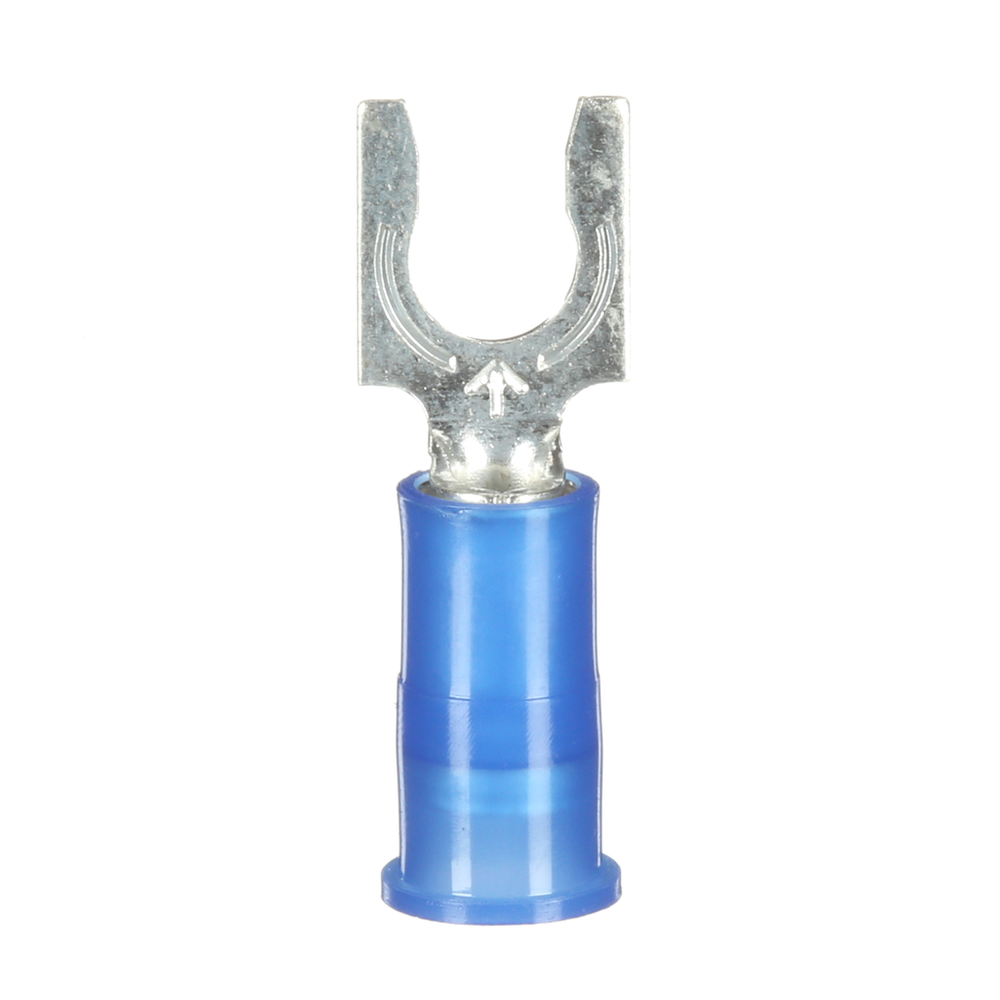

3M™ Scotchlok™ Fork, Nylon Insulated w/Insulation Grip MNG14-10FK, 16-14 AWG, 1000/Case - 7000132250

Sold As: 1000-Pack
SKU: 7000132250
MPN: 7000132250
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015383
3M ID: 80610042824
5 Digit UPC: 1538
$579.79 ($0.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Fork Terminal has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Wider tongue design for use on free-standing studs
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
Barrel StyleButted
Maximum Recommended Voltage Rating600.0
Product ColorBlue
Stud Size#10
Packaging1000 per bulk box
Dimension E0.75 Inch
Maximum Recommended Voltage Rating UOMV
Units per Case1000.0
Overall Width (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
Terminal TypeFork
Overall Width (Imperial)0.34
Maximum Insulation Outside Diameter0.145 in
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)105.0
Insulation MaterialNylon with Insulation Grip
Maximum Insulation Outer Diameter (Metric)3.7
UL File NumberE23438
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial)0.91
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Clearance (C)0.29 Inch
Maximum Conductor Size (Metric)2.08 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Inside Diameter0.09 Inch
Maximum Conductor Size (Imperial)14 AWG
Terminal StyleStandard
MaterialETP Copper
Fork TypeStandard
Maximum Operating Temperature (Celsius) UOMDegree
