3M Products & Supplies

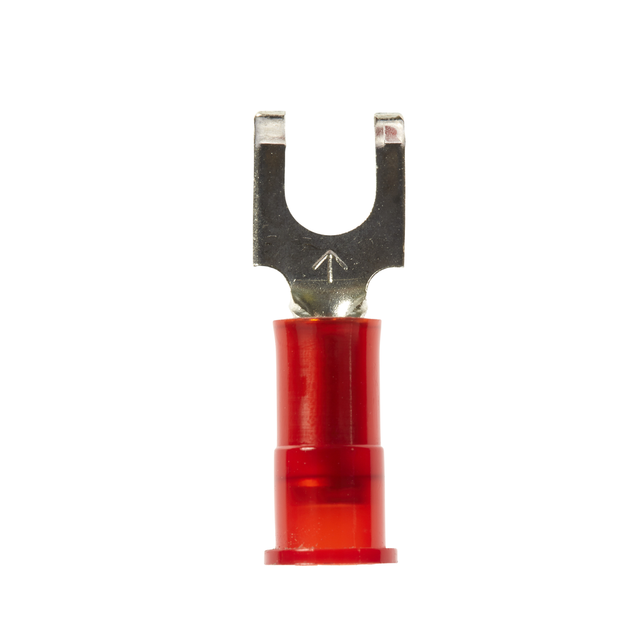

3M™ Scotchlok™ Block Flanged Fork, Nylon Insulated w/Insulation Grip MNG14-8FFBK, 16-14 AWG, 1000/Case - 7100164037

Sold As: 1000-Pack
SKU: 7100164037
MPN: 7100164037
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007016304
3M ID: 80610044366
5 Digit UPC: 1630
$670.51 ($0.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Suitable for use in a terminal block
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
UL File NumberE23438
Overall Length (Imperial)0.86
Barrel Inside Diameter0.09 Inch
Clearance (C)0.25 Inch
Stud Size#8
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialNylon with Insulation Grip
Barrel Length (Imperial)0.25 Inch
Units per Case1000.0
Maximum Conductor Size (Metric)2.08 mm²
Dimension E0.71 Inch
Minimum Conductor Size (Metric)1.31 mm²
Terminal StyleFlanged Block
Fork TypeFlanged Block
Packaging1000 per bulk box
Minimum Conductor Size (Imperial)16 AWG
Terminal TypeFork
Barrel StyleButted
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.3
Maximum Conductor Size (Imperial)14 AWG
