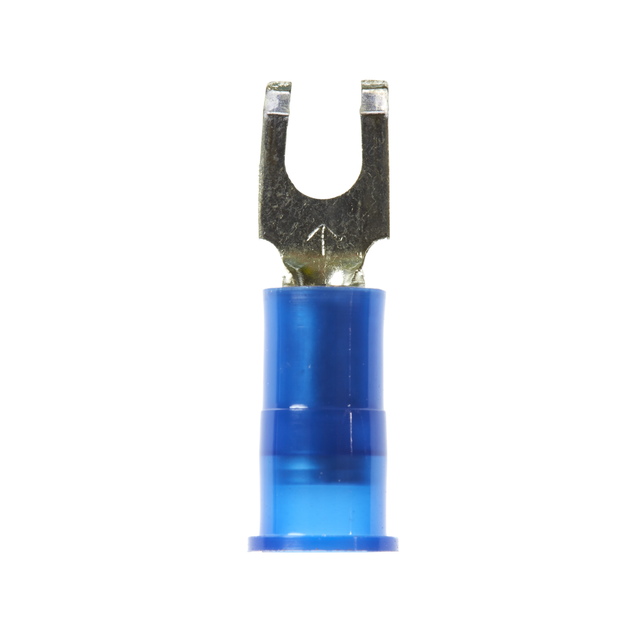

3M™ Scotchlok™ Fork, Nylon Insulated w/Insulation Grip MNG14-8FK, 16-14 AWG, 1000/Case - 7100164019

Sold As: 1000-Pack
SKU: 7100164019
MPN: 7100164019
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007015369
3M ID: 80610042808
5 Digit UPC: 1536
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Fork Terminal has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Wider tongue design for use on free-standing studs
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)2.08 mm²
Dimension E0.75 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Inside Diameter0.09 Inch
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Length (Imperial)0.91
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial)0.34
Fork TypeStandard
Terminal StyleStandard
Overall Length (Imperial) UOMin
Packaging1000 per bulk box
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Metric)1.31 mm²
UL File NumberE23438
Barrel StyleButted
Overall Width (Imperial) UOMin
Terminal TypeFork
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case1000.0
Insulation MaterialNylon with Insulation Grip
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Size#8
Clearance (C)0.29 Inch
